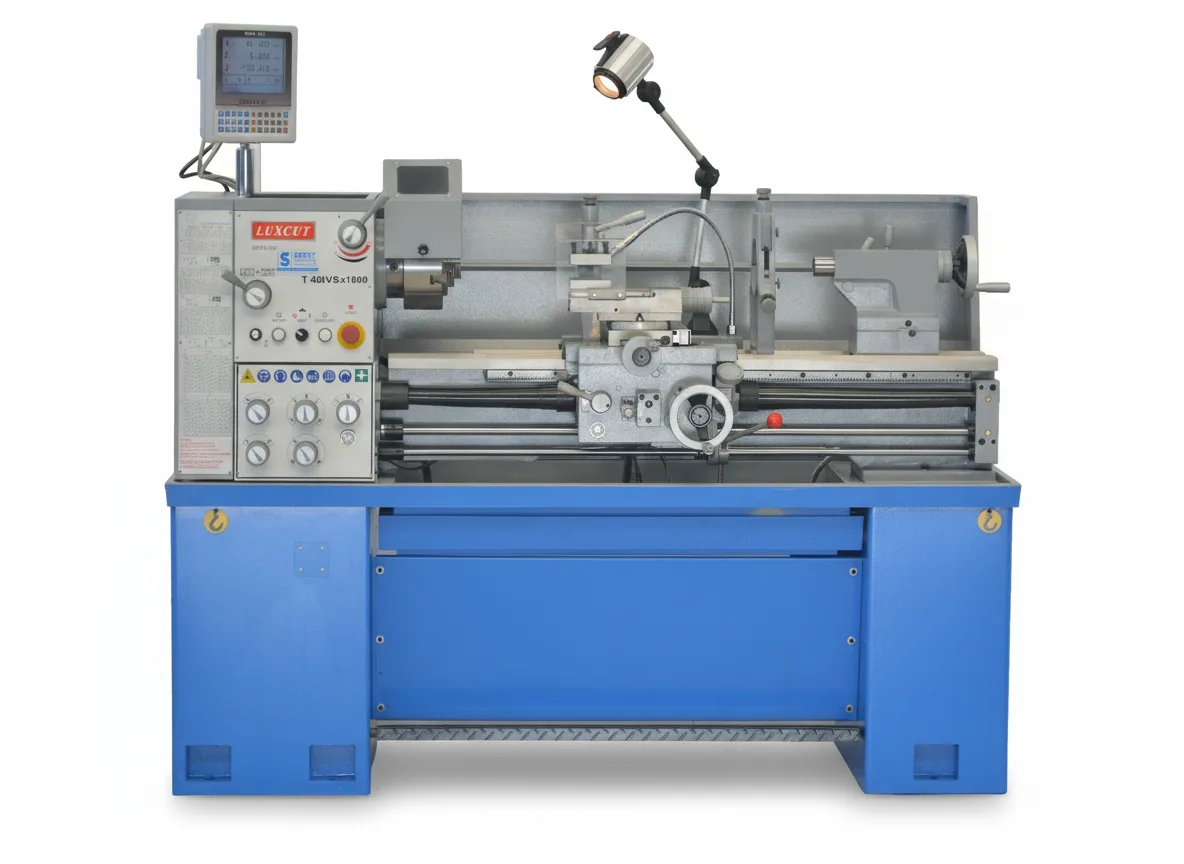

Luxcut T400VSx1000 Centre Lathe

Name: Luxcut T400VSx1000 Centre Lathe – c/w 52mm spindle, DRO, 230V, Variable Speed
Brand: Luxcut
SKU: LCNT-0-3136

400 swing x 1000 length x 52mm bore 230V Variable speed

$12,990.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 400mm

Distance between centres 1000mm

Spindle bore 52mm

Speed range 60 - 2,200 rpm Infintely variable

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut T400VS is a single phase lathe featuring a generous 52mm spindle bore, making it a standout in the single phase lathe class. To achieve this performance on a single-phase supply, it uses a 3hp three-phase motor, eliminating the common limitations associated with single-phase motors and capacitor systems. Power is delivered via a variable speed inverter, which converts a 230V single-phase 15A power supply into DC, then outputs smooth three-phase power to the motor. This setup not only ensures reliable torque and efficiency but also allows for variable speed control through a potentiometer and digital RPM display, paired with a simple and smooth two-speed headstock design.

Features:

Hi-Low gear range for a wide range of spindle speeds
Variable speed via potentiometer head for precise control
52mm spindle bore for versatile workpiece capacity

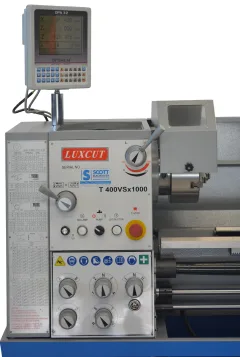

Digital RPM display for accurate speed monitoring
Gap bed design for machining larger diameter workpieces
D1-5 camlock spindle for secure and quick tooling changes
Chuck guard with microswitch for enhanced operator safety
Inverter brake automatically stops spindle when E-stop or foot brake is engaged
3hp / 3 phase motor for reliable power
Right hand carriage wheel for smooth operation
Enclosed feed box for consistent feed accuracy
Integrated coolant system for efficient chip removal and cooling
Full-length rear splash guard to keep the work area clean
Front pull-out chip tray for easy cleanup
Induction hardened & ground bedway for long term precision
Heavy fabricated base for stability and reduced vibration
Optimum 2-Axis DRO factory fitted for accurate measurements
Accepts 20 x 20 mm tooling for standard turning tools

Included Accessories:

200 mm 3-jaw and 200 mm 4-jaw chucks included
320 mm faceplate for larger workpieces
Micrometer bed stop for precise limiting of carriage movement
Fixed and travelling steady rests for support of long workpieces
Halogen lamp for improved visibility

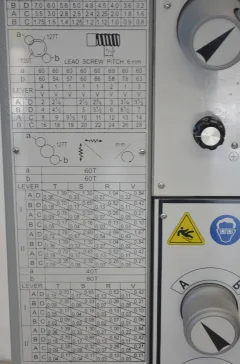

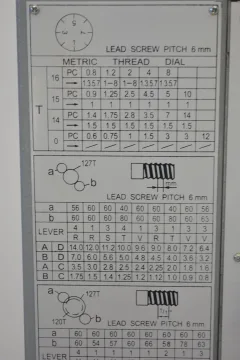

Thread dial indicator for threading accuracy
Note: Supplied with 15Amp 3 pin plug & heavy duty 1.5m cable. Customer will need 15A single phase socket.
