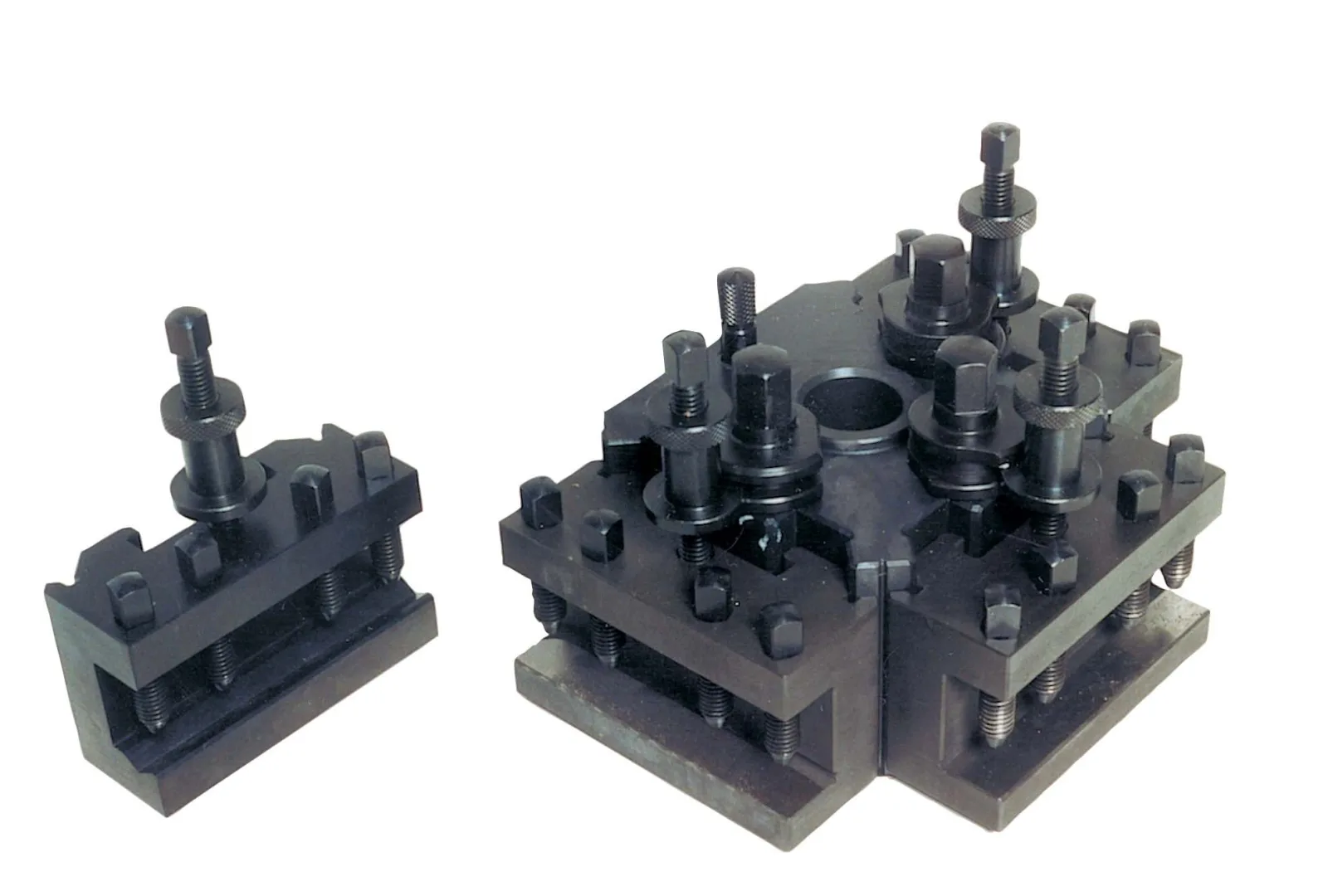

Rapid Italian Style Quick Change Tool Posts
Rapid logo WEB-RAPID QCT

Tooling, Accessories & Consumables · Lathe & milling tooling

Rapid Italian Style Quick Change Tool Posts

Complete with 4 toolholders

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Complete with 4 toolholders

Precision ground

  • Italian style toolpost copy

Each set comes complete with :

  • 4 holders (3 pces Standard holders &
  • 1 pce Vee bottom holder)
  • Additional holders available

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model Centre height max Base to centre Tool dia max Price excl GST Scott models
A 170mm 32-42mm 20mm (check centre height) $ 610.00 6233 / 6236 / Z330
BR/BP 200mm 38-53mm 25mm (check centre height) $ 665.00 1640, 410,
B 230mm 47-65mm 32mm (check centre height) $ 699.00 1860 / 2060 / 6250
C 280mm 51-72mm 32mm $ 960.00 6266
D 350mm 61-95mm 40mm POA 6263 6280
Spare standard holders
A $ 95.00
BR/BP $100.00
B $120.00
C $140.00
D $345.00
