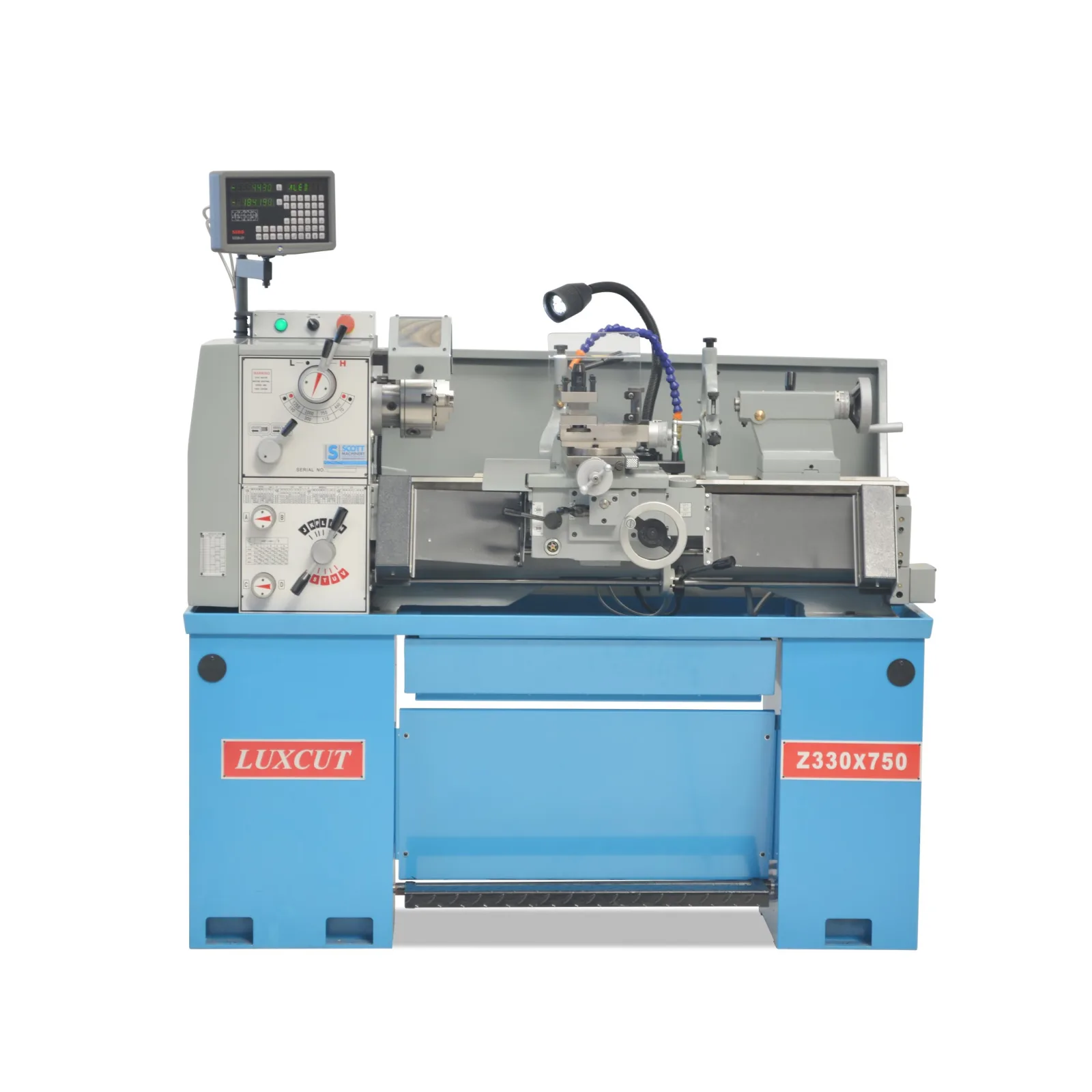

Luxcut Z330 x 750 Single Phase Lathe

330mm swing x 750mm centres x 38mm bore. Single phase

POA - On Order Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 330mm
Distance between centres 750mm
Spindle bore 38mm
Luxcut Z330x750
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut Z330x750 is the smallest in our Z series range. This compact, geared head, single-phase lathe is an excellent choice for training institutes, small workshops, and perhaps most importantly, the home-based engineer, offering the key characteristics of a larger geared head lathe without compromise. Renowned for reliability, performance, and accuracy, the Z330 x 750 delivers consistent results across a wide range of turning applications. Its robust construction, versatile speed range, and full threading capability make it a practical and dependable addition to any workshop.

Features:

  • Compact geared head design with rigid cast bed for stability and durability
  • 330mm swing over bed with gap for larger diameter workpieces
  • 750mm between centers provides ample turning capacity
  • Hardened and ground bedways for accuracy and long service life
  • Precision ground headstock gears in a fully enclosed housing
  • Spindle bore 38mm, Camlock D1-4 spindle nose
  • Wide speed range 70-2000 RPM for versatile machining
  • Cross slide travel 160mm, compound slide travel 68mm
  • Tailstock with 32mm quill, MT3 taper, robust cast construction
  • Metric, Imperial, Diametral and Module thread cutting capability
  • Power feeds on both longitudinal and cross slide axes
  • Accepts 16 x 16mm (5/8" x 5/8") tooling
  • Approximate machine weight 590-620 kg
  • Built to international safety and performance standards

Standard Accessories:

  • 2 axis Sino DRO factory fitted
  • 160mm 3 Jaw chuck
  • 200mm 4 Jaw chuck
  • 300mm faceplate D1-4
  • Fixed steady rest
  • Travelling steady rest
  • LED Lamp

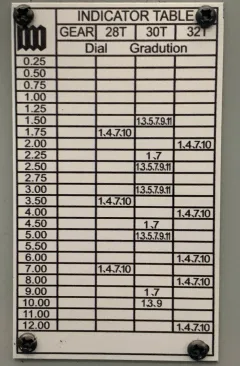

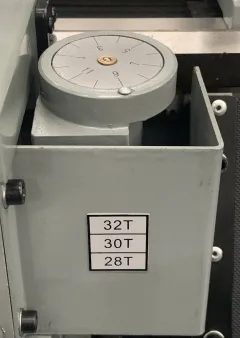

  • Thread dial indicator
  • Leadscrew protection
  • Toolpost protection
  • Takes 16 x 16mm tooling
  • Toolbox

Safety features:

  • Latching emergency stop button
  • Chuck guard complete with microswitch
  • Fixed guarding
  • Curtain-type lead screw protection to prevent damage from debris
  • Tool post protection for operator safety and tooling longevity
  • Main isolation switch
  • Mechanical foot brake

Optional:

  • Quick change toolpost (size A) which will accept 16mm tooling.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Luxcut Z330x750
Swing over bed 330mm
Swing over cross slide 198mm
Swing in gap 476mm
Spindle bore 38mm
Bed width 186mm
Distance between centres 750mm
Spindle speed range 70 - 2,000rpm (8 steps)
Thread range 0.45 - 10mm 27 types 3 1/2 - 80 TPI 36 types
Tailstock taper 3MT
Tooling size 16x16mm
Motor 1.5kW (2hp) 230V
Weight 595kg
Packing Dimensions (Width x Depth x Height) 2.2m x 1.2m x 1.6m (595kg )

Complete the machine

Tooling and accessories that belong in the discussion.

Total Coolant Fluids & Oils 01

Total Coolant Fluids & Oils

WEB-TOTAL OILS

Include in enquiry
Lathe Tooling Kit #4 16mm x 5 Tools + 1 Boring bar 02

Lathe Tooling Kit #4 16mm x 5 Tools + 1 Boring bar

A-LATH-0-1208

Include in enquiry
Live Centres 03

Live Centres

WEB-LIVE CENTRES

Include in enquiry

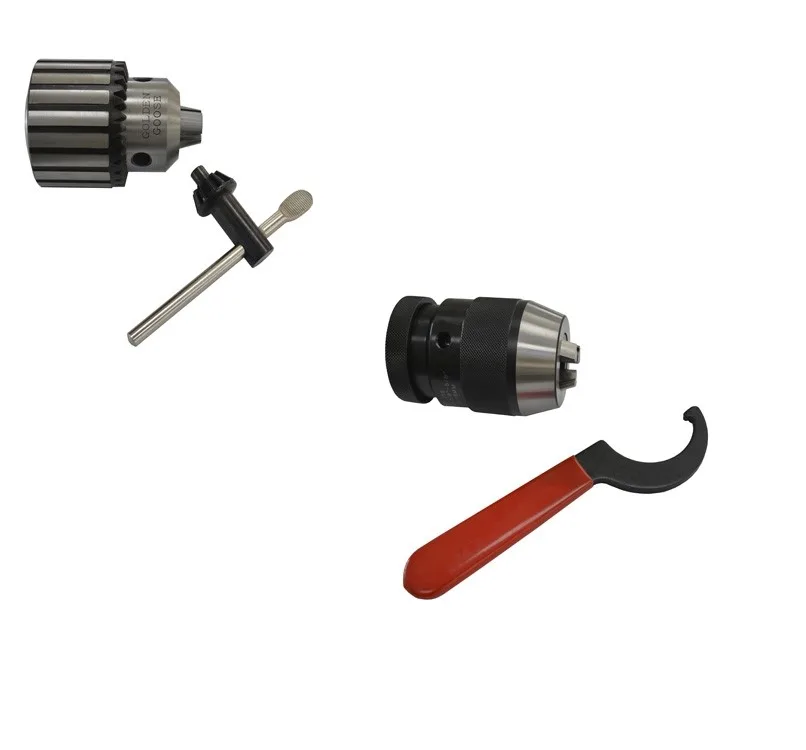

Drill Chucks & Tanged Arbors 04
