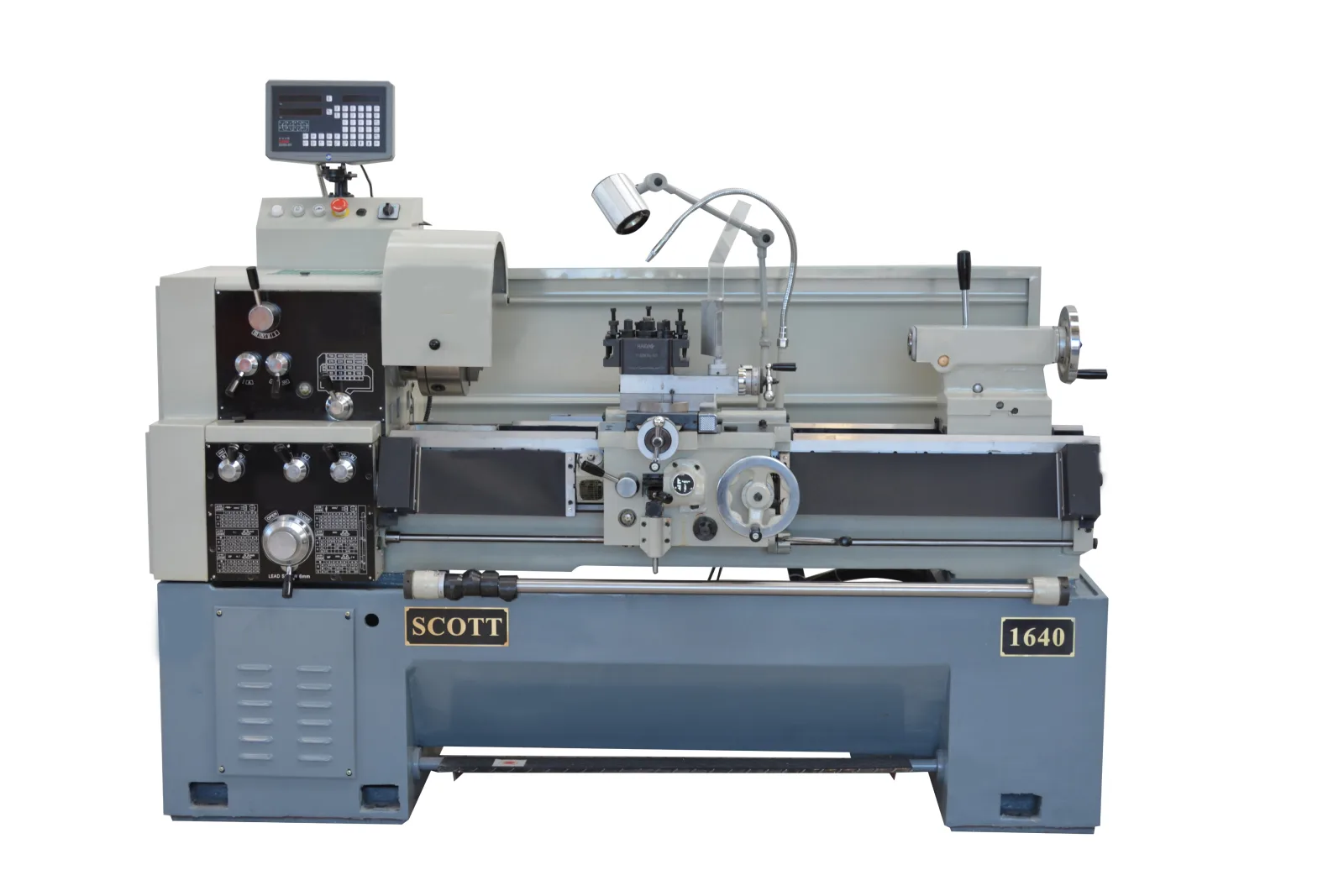

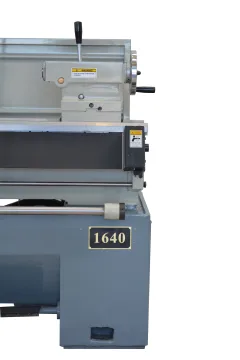

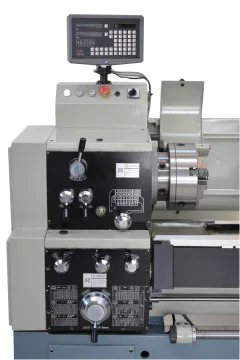

SCOTT 1640 Centre Lathe

410mm swing x 1000mm centres x 52mm bore. Workshop quality lathe.

$19,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 410mm
Distance between centres 1000mm
Spindle bore 52mm
Speed range 33 - 2,000 rpm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Scott Brand lathes are targeted at the astute engineer that requires reliable performance and accuracy to perform a variety of tasks common of New Zealands diverse range of turning work.

New improvements: Chuck cover with telemechanique switch Schnieder isolation lockout switch on cabinet Simple clear plastic toolpost guard without lockout Curtain type leadscrew & shaft protection Schnieder MCB motor circuit protection (replaces old overload/fuse system)

Standard features:

  • Gap bed
  • Solid one piece cast base
  • D1-6 camlock spindle
  • Two speed motor providing 16 spindle speeds
  • Footbrake
  • Longitudinal stops
  • 250mm D1-6 3 Jaw Chuck
  • 250mm D1-6 4 Jaw Chuck
  • D1-6 Faceplate
  • Following steady rest
  • Large roller type fixed steady rest
  • LED work lamp
  • Coolant system

Key features

  • SINO 2 Axis Digital readout system
  • Italian style quick change toolpost BR/BP c/w 4 holders
  • Right hand carriage wheel
  • Siemens electrics

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model 1640
Swing over bed 410mm
Swing over carriage 250mm
Swing in gap 580mm
Spindle bore 52mm
Distance between centres 1000mm
Bed width 274mm
Number of spindle speeds 16
Speed range 33 - 2,000 rpm
Thread range 0.2 - 7mm / 4 - 56 TPI
Tailstock taper 4MT
Motor power 6hp
Weight 1400kg
Floor space 2100 x 840 x 1220
Shipping 4.2m3, 1600kg
