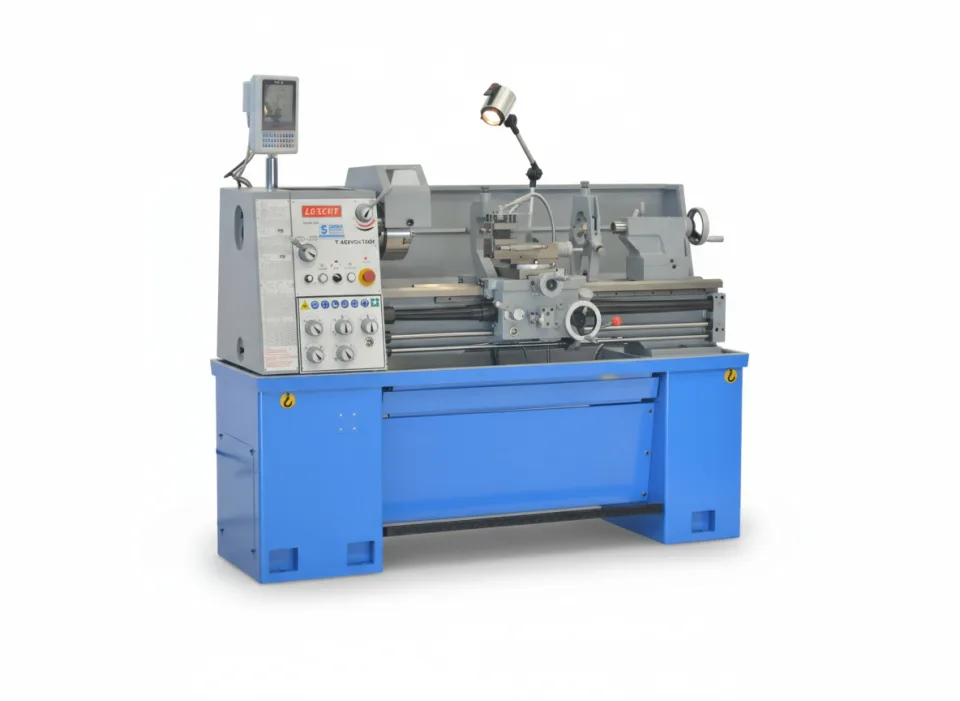

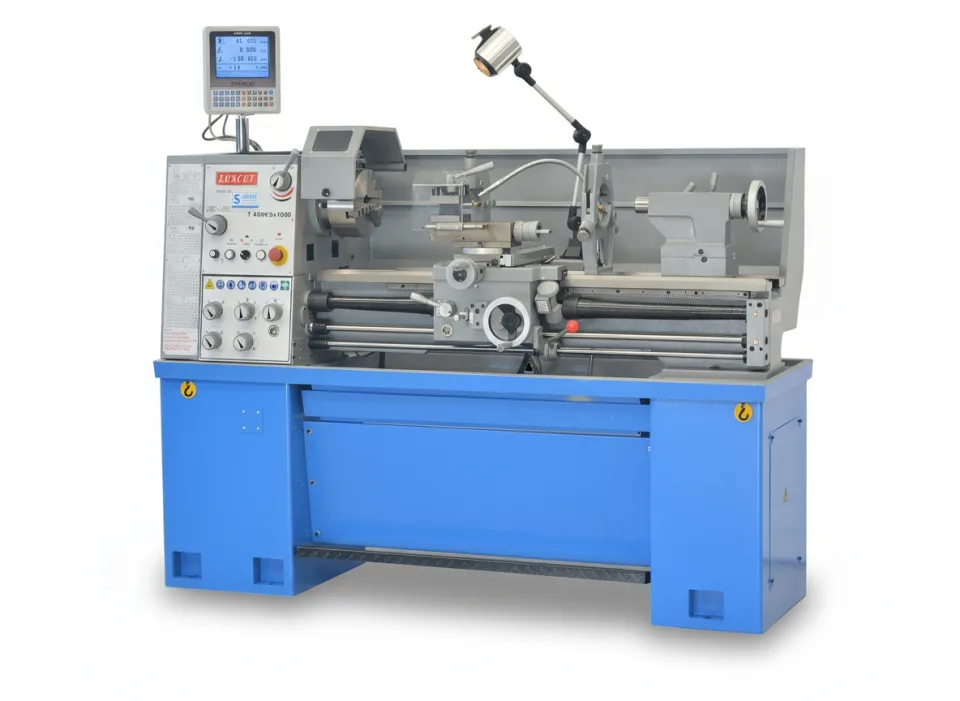

Luxcut T400VSx1000 Centre Lathe
c/w 52mm spindle, DRO, 230V, Variable Speed
Product overview
About this machine.
Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks
The Luxcut T400VS is a single phase lathe featuring a generous 52mm spindle bore, making it a standout in the single phase lathe class. To achieve this performance on a single-phase supply, it uses a 3hp three-phase motor, eliminating the common limitations associated with single-phase motors and capacitor systems. Power is delivered via a variable speed inverter, which converts a 230V single-phase 15A power supply into DC, then outputs smooth three-phase power to the motor. This setup not only ensures reliable torque and efficiency but also allows for variable speed control through a potentiometer and digital RPM display, paired with a simple and smooth two-speed headstock design.
Features:
- Hi-Low gear range for a wide range of spindle speeds
- Variable speed via potentiometer head for precise control
- 52mm spindle bore for versatile workpiece capacity
- Digital RPM display for accurate speed monitoring
- Gap bed design for machining larger diameter workpieces
- D1-5 camlock spindle for secure and quick tooling changes
- Chuck guard with microswitch for enhanced operator safety
- Inverter brake automatically stops spindle when E-stop or foot brake is engaged
- 3hp / 3 phase motor for reliable power

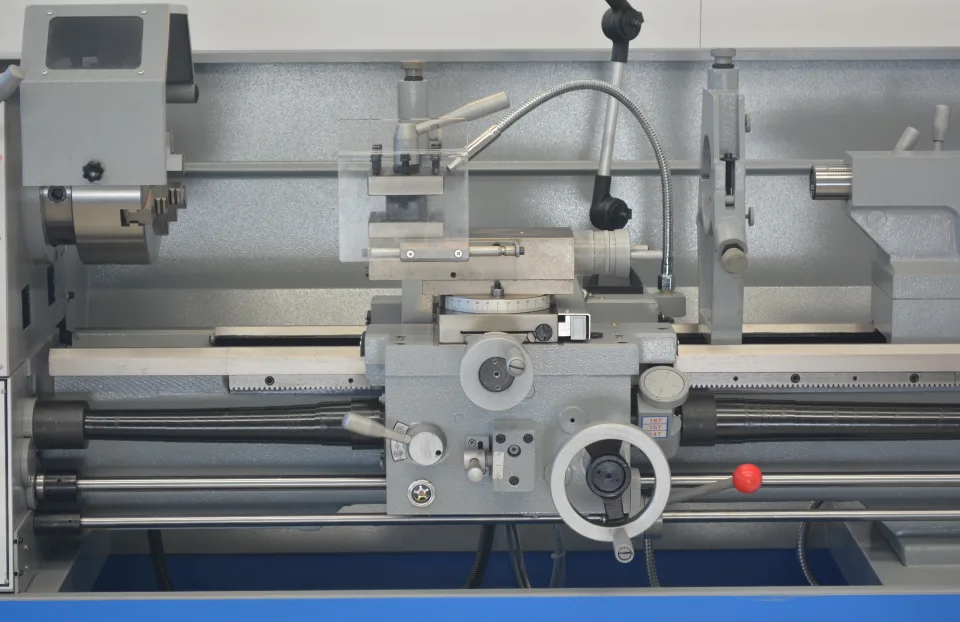

- Right hand carriage wheel for smooth operation
- Enclosed feed box for consistent feed accuracy
- Integrated coolant system for efficient chip removal and cooling
- Full-length rear splash guard to keep the work area clean
- Front pull-out chip tray for easy cleanup
- Induction hardened & ground bedway for long term precision
- Heavy fabricated base for stability and reduced vibration

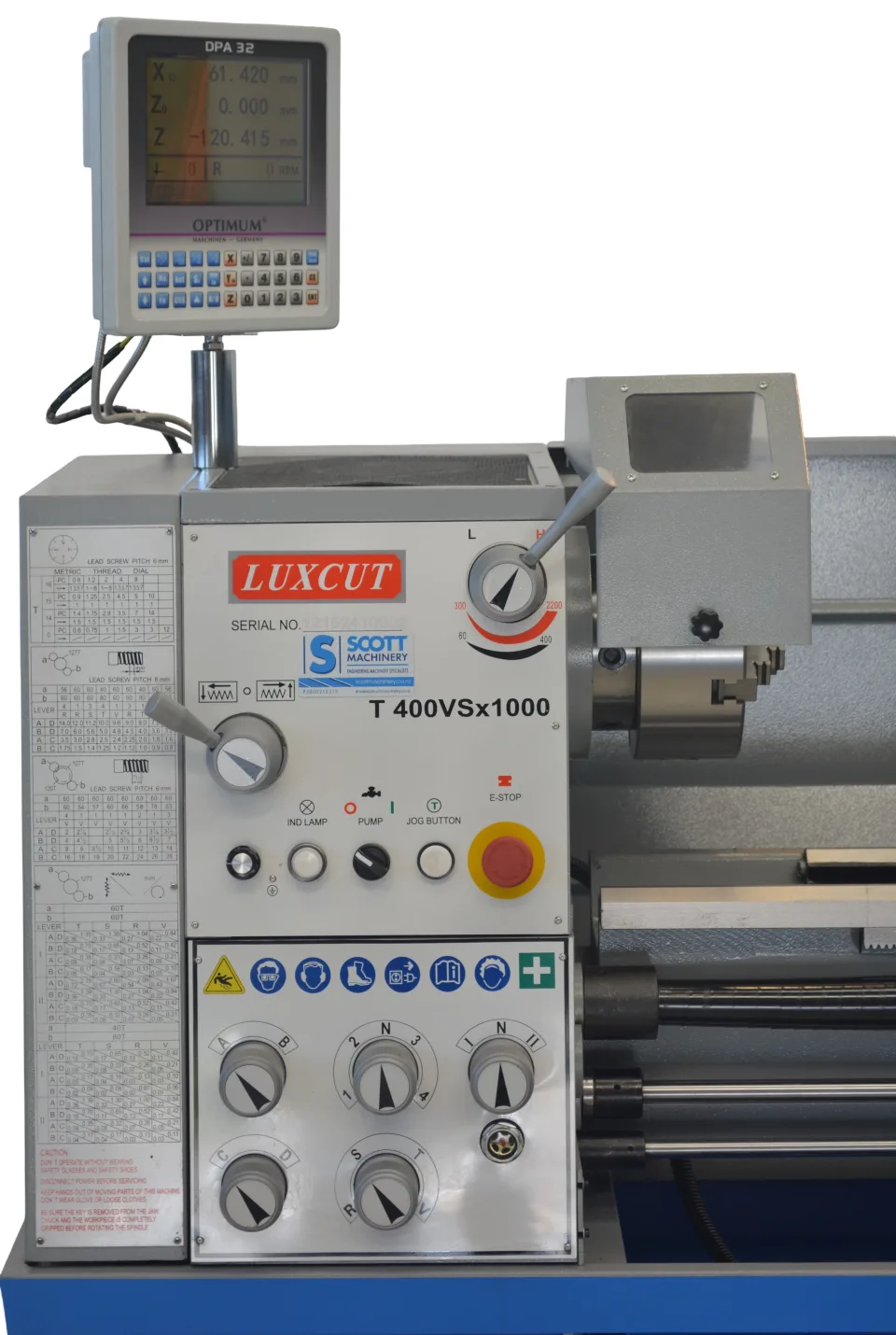

- Optimum 2-Axis DRO factory fitted for accurate measurements
- Accepts 20 x 20 mm tooling for standard turning tools
Included Accessories:
- 200 mm 3-jaw and 200 mm 4-jaw chucks included
- 320 mm faceplate for larger workpieces
- Micrometer bed stop for precise limiting of carriage movement
- Fixed and travelling steady rests for support of long workpieces
- Halogen lamp for improved visibility
- Thread dial indicator for threading accuracy
- Note: Supplied with 15Amp 3 pin plug & heavy duty 1.5m cable. Customer will need 15A single phase socket.
Safety features:
- Latching emergency stop button
- Chuck guard complete with microswitch
- Fixed guarding
- Coil-type lead screw protection to prevent damage from debris
- Tool post protection for operator safety and tooling longevity
- Main isolation switch
- VSD powered foot brake
Optional:
- BR/BP Quick change tool holder accepts 20x20 tool holders.
