EXPERT Parting Systems
1 / 5
EXPERT logo WEB-OPTIMUM PARTING

Tooling, Accessories & Consumables · Lathe & milling tooling

EXPERT Parting Systems

EXPERT Parting Systems

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Parting inserts W
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Expert is a trusted name in high-performance metalworking and cutting tools, known for delivering exceptional quality, durability, and value. With a focus on innovation and precision engineering, Expert tooling is developed to meet the rigorous demands of modern machining from parting and grooving to turning, milling, and beyond. Manufactured to strict standards using premium-grade materials, Expert tools provide consistent performance, long service life, and reliable results across a wide range of industrial applications. Backed by technical expertise and a commitment to excellence

Expert parting tooling is designed for high-performance parting and grooving applications, delivering precision and stability even under demanding conditions. Engineered from premium materials and manufactured to tight tolerances, these tools ensure optimal chip control, minimal vibration, and extended tool life. Whether in manual or CNC turning operations, Expert parting tools offer consistent results, reduced downtime, and improved surface finishes

Features:

  • High quality tool steel construction which delivers excellent strength, wear resistance, and tool life under demanding conditions
  • Precision ground cutting edges ensures clean, accurate parting with minimal burr formation
  • Optimised insert geometry provides smooth chip evacuation and reduced cutting forces
  • Rigid toolholder design minimises vibration and enhances surface finish consistency
  • Quick change insert system for fast and easy insert replacement and improved productivity
  • Available in multiple sizes and widths Suited to a variety of parting and grooving operations
  • Supplied in a durable storage case

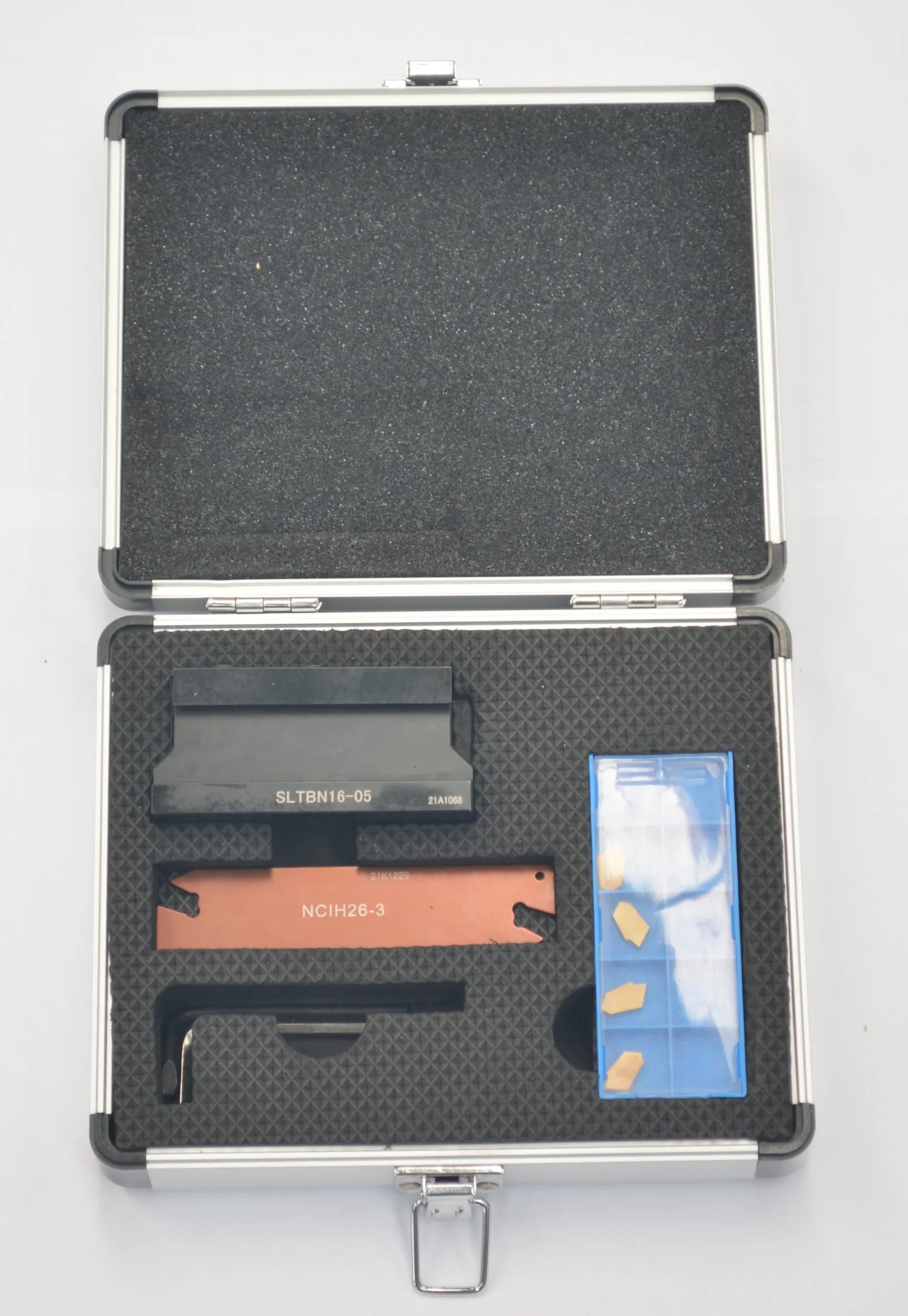

Parting kit includes:

  • Clamping block
  • Double ended blade
  • GTN3 carbide inserts (5 in the kit)
  • Allen key
  • Tip removal tool

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Optimum Expert parting kits
Parting System Price Excl GST
Parting blocks H B A A1 L H2 H4
SGTBU16 for 16mm centre height 26 16 36 100 43 14 $80.00
SGTBU20 for 20mm centre height 26 21 38 100 43 9 $90.00
SGTBU25 for 25mm centre height 32 23 42 110 50 8 $100.00
Parting blades complete with insert removal tool H1 H2 L W
SGIH26-3 3mm blade 16mm or 20mm centre height 26 21.4 110 3.1 $80.00
SGIH32-3 3mm blade for 25mm centre height 32 25 150 3.1 $85.00
Parting inserts W
GTN3 3mm parting insert $16.50
Parting Kit
PK26-16 PARTING KIT 26-16 C/W BLOCK BLADE & 5 INSERTS GTN3 $200.00
PK26-20 PARTING KIT 26-20 C/W BLOCK BLADE & 5 INSERTS GTN3 $215.00
PK32-25 PARTING KIT 32-25 C/W BLOCK BLADE & 5 INSERTS GTN3 $230.00

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding EXPERT Parting Systems
