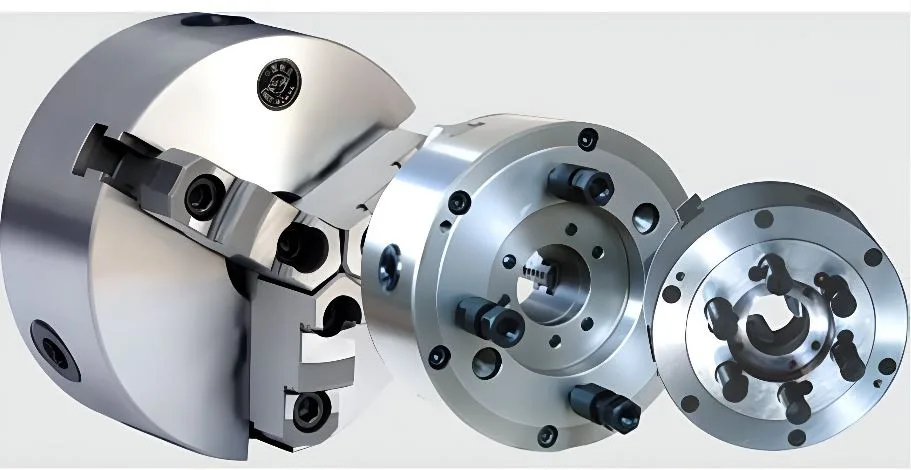

Universal K11 Series Direct Mounting 3 Jaw Lathe Chucks

Name: Universal K11 Series Direct Mounting 3 Jaw Lathe Chucks
Brand: Universal
SKU: WEB-UNIVERSAL K11 CAM

Self centering Camlock mounting

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Universal Direct mount

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Universal lathe chucks covers a range of high-quality lathe chucks, manufactured for accuracy, durability, and dependable performance in the workshop. Both universal self-centring chucks and four-jaw independent chucks are available, covering everything from fast general purpose workholding through to complex setups requiring precise adjustment. Built to exacting standards with quality materials and careful machining, these chucks provide good service life and reliability across a wide variety of applications.

Universal self-centring 3 jaw chucks are designed for quick and accurate workholding, with all jaws moving simultaneously to grip round or hexagonal workpieces securely. Ideal for general lathe applications, they provide fast setup and reliable performance for a wide range of machining tasks.

Features

All jaws move simultaneously for quick and accurate self-centring
Available with either bolt-on or in some cases, two sets of jaws (internal and external)
Precision scroll mechanism for smooth operation
Hardened and ground working surfaces for long service life
Suitable for gripping round or hexagonal workpieces
Direct mounting.

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Universal K11 Series
Universal	Direct mount
Size Dia / Camlock	D1	D2	Bore	D4	H1	h	h1	z-d	RPM	Weight	Price Excl GST
160mm / D1-4	63.5	82.6	40	117	70	13	10	3xM10	2,500	10 kg	$470.00
200mm / D1-5			50							21 kg	$589.00
200mm / D1-6	106.3	133.4	50	181	86	16	13	6xM16	2,000	21 kg	$599.00
250mm / D1-6	106.3	133.4	70	181	98	16	13	6xM16	1,600	32 kg	$675.00
250mm / D1-8	139.7	171.4	80	225	98	18	14	6xM20	1,600	32 kg	$699.00
325mm / D1-8	139.7	171.4	100	225	103.5	18	14	6xM20	1,200	51 kg	$899.00
380mm / D1-8	139.7	171.4	130	225	118	18	14	6xM20	1,000	81 kg	$1,299.00
380mm / D1-11	196.8	235	135	298	118	20	16	6xM22	1,000	81 kg	$1,349.00
500mm / D1-11											POA
