Universal K11 Series Direct Mounting 3 Jaw Lathe Chucks
Product overview
About this machine.
Universal lathe chucks covers a range of high-quality lathe chucks, manufactured for accuracy, durability, and dependable performance in the workshop. Both universal self-centring chucks and four-jaw independent chucks are available, covering everything from fast general purpose workholding through to complex setups requiring precise adjustment. Built to exacting standards with quality materials and careful machining, these chucks provide good service life and reliability across a wide variety of applications.
Universal self-centring 3 jaw chucks are designed for quick and accurate workholding, with all jaws moving simultaneously to grip round or hexagonal workpieces securely. Ideal for general lathe applications, they provide fast setup and reliable performance for a wide range of machining tasks.
Features
- All jaws move simultaneously for quick and accurate self-centring
- Available with either bolt-on or in some cases, two sets of jaws (internal and external)
- Precision scroll mechanism for smooth operation
- Hardened and ground working surfaces for long service life
- Suitable for gripping round or hexagonal workpieces
- Direct mounting.
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Universal | Direct mount | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

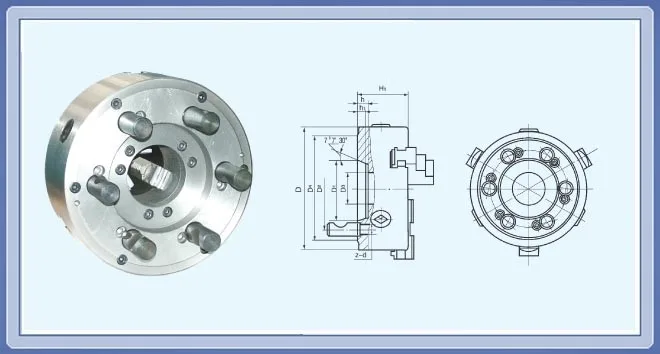

| Size Dia / Camlock | D1 | D2 | Bore | D4 | H1 | h | h1 | z-d | RPM | Weight | Price Excl GST |
| 160mm / D1-4 | 63.5 | 82.6 | 40 | 117 | 70 | 13 | 10 | 3xM10 | 2,500 | 10 kg | $470.00 |
| 200mm / D1-5 | 50 | 21 kg | $589.00 | ||||||||
| 200mm / D1-6 | 106.3 | 133.4 | 50 | 181 | 86 | 16 | 13 | 6xM16 | 2,000 | 21 kg | $599.00 |
| 250mm / D1-6 | 106.3 | 133.4 | 70 | 181 | 98 | 16 | 13 | 6xM16 | 1,600 | 32 kg | $675.00 |
| 250mm / D1-8 | 139.7 | 171.4 | 80 | 225 | 98 | 18 | 14 | 6xM20 | 1,600 | 32 kg | $699.00 |
| 325mm / D1-8 | 139.7 | 171.4 | 100 | 225 | 103.5 | 18 | 14 | 6xM20 | 1,200 | 51 kg | $899.00 |
| 380mm / D1-8 | 139.7 | 171.4 | 130 | 225 | 118 | 18 | 14 | 6xM20 | 1,000 | 81 kg | $1,299.00 |
| 380mm / D1-11 | 196.8 | 235 | 135 | 298 | 118 | 20 | 16 | 6xM22 | 1,000 | 81 kg | $1,349.00 |
| 500mm / D1-11 | POA |
