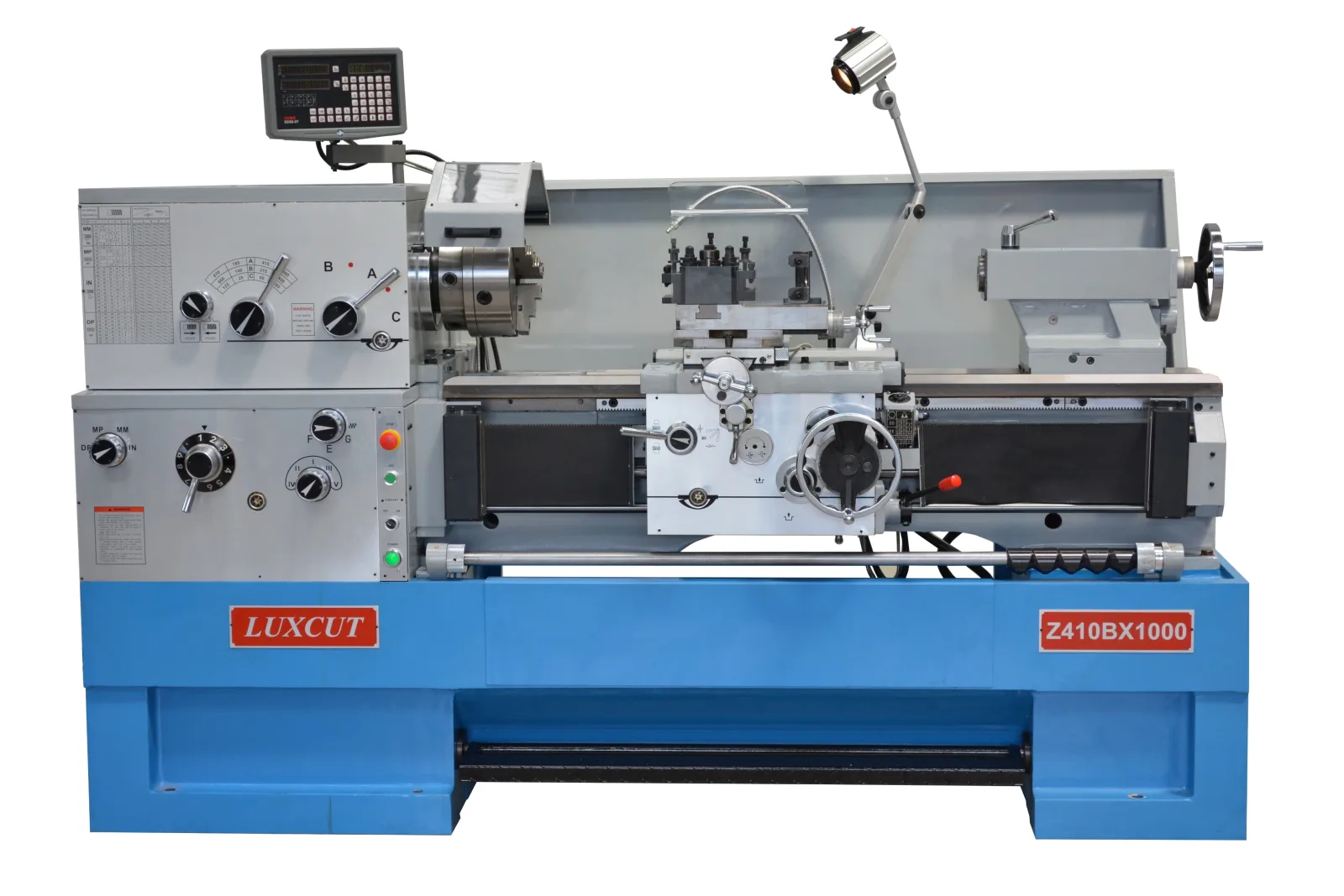

Luxcut Z410B x 1000 c/w 80mm bore Centre Lathe

410mm swing x 1000mm centres x 80mm bore.

$23,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 410mm
Spindle bore 80mm
Swing over carriage 250mm
Swing in gap 660mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut Z410B x 1000 is a versatile centre lathe designed for precision, reliability, and ease of use in both workshop and production environments. Built with a robust cast iron bed and hardened, ground slideways, it ensures long lasting accuracy and stability. The lathe features a wide speed range with smooth gear changes, a large 80mm spindle bore for handling bigger workpieces, and convenient dual metric/imperial graduations. Enhanced safety and operator comfort are provided with a full length splash guard, interlocked chuck guard, and integrated LED lighting. Combining heavy duty construction with practical features, the Z410B x 1000 is a dependable choice for general turning, threading, and repair work. We have evaluated many similar machines from the international market and have chosen this machine as we believe it represents good value for money. We visit the manufacturer annually. The main purpose of these visits is to evaluate new machine opportunities, and most importantly to ensure that the manufacturing facilities of the selected machine tool company we have chosen continue to produce machines that satisfy our criteria and have sales and technical service support and ex stock availability of spare parts.

Features:

  • Heavy duty one piece solid cast iron base for maximum rigidity and stability
  • Gap bed design allowing clearance for larger diameter workpieces
  • Convenient swarf removal via front tray for cleaner operation

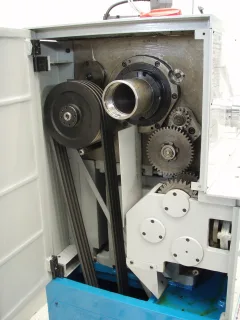

  • Geared headstock drive providing smooth and precise power transmission
  • Powerful 7.5hp main motor for reliable performance
  • D1-8 Camlock spindle for secure and efficient chuck changes
  • Clutch in apron for seamless feed and spindle engagement
  • Enclosed feed box to protect gears and maintain accuracy
  • Right hand carriage wheel for comfortable manual operation
  • Induction hardened and precision ground bedways for long term accuracy
  • 2-axis Digital Readout for accurate and reliable measurements
  • Quick change toolpost complete with 4 holders for fast tooling setup
  • Supplied with 3-jaw chuck (250 mm), 4-jaw chuck (320 mm), and 410 mm faceplate
  • Fixed steady rest and travelling steady rest included for versatile work support
  • Full length splash guard for improved safety and chip control
  • Thread dial indicator for simplified threading operations
  • Dual metric/imperial dials to accommodate all users
  • Coolant equipment for temperature control during heavy cuts
  • LED work lamp for clear illumination of the work area
  • Longitudinal stops for repeatable machining operations

Standard Accessories:

  • 3 Jaw chuck 250mm
  • 4 Jaw chuck 320mm
  • Faceplate 410mm
  • Fixed Steady rest
  • Travelling Steady
  • Quick change tool post (Italian style size BP) holds 25 x 25 tools
  • Full length rear splash guard
  • LED lamp
  • Coolant equipment
  • Bed stop
  • Thread dial indicator
  • Dual metric/imperial dials
  • Toolbox
  • 2 Axis SINO Digital Readout System fitted

Safety features:

  • Latching emergency stop button
  • Chuck guard complete with microswitch
  • Fixed guarding
  • Curtain-type lead screw protection to prevent damage from debris
  • Tool post protection for operator safety and tooling longevity
  • Main isolation switch
  • Mechanical foot brake

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed 410mm
Swing over carriage 250mm
Swing in gap 660mm
Spindle bore 80mm
Width of bed 335mm
Distance between centers 1000mm
Number of spindle speeds 12
Spindle speeds 25 - 1,800rpm
Thread range 0.5 - 20mm / 1 5/8 - 72 TPI
Tailstock taper 4MT
Main motor 5.5kW (7.5hp) 3 Phase
Weight 2,190 kg
Floor space 2310 x 1000 x 1275mm
Shipping 2,540 kg, 4.2m3

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Luxcut Z410B x 1000 c/w 80mm bore
