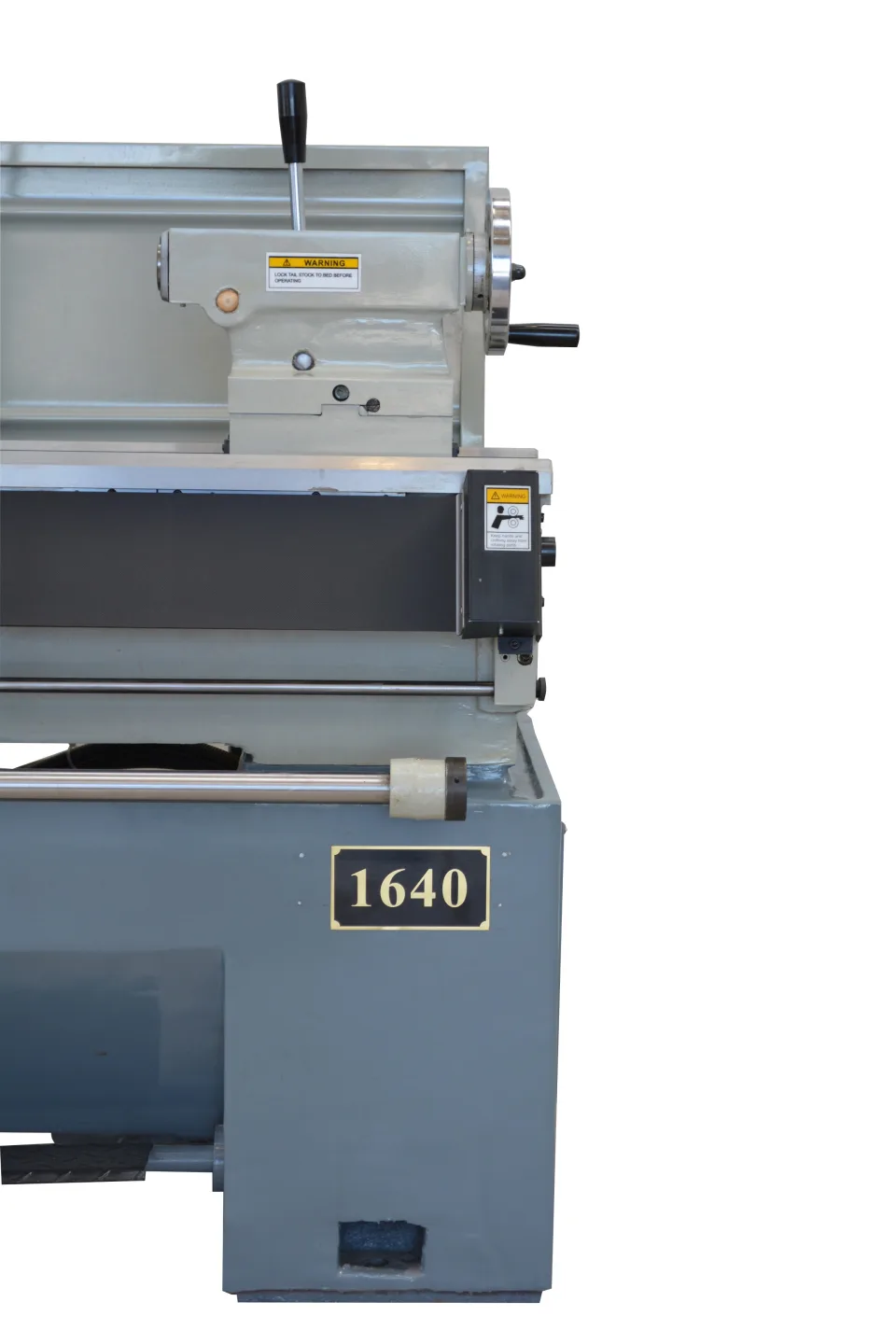

SCOTT 1640 Centre Lathe
c/w DRO & QCT
$19,900.00
LCNT-0-4219 | Prices exclude GST
Product overview
About this machine.
Scott Brand lathes are targeted at the astute engineer that requires reliable performance and accuracy to perform a variety of tasks common of New Zealands diverse range of turning work.
New improvements: Chuck cover with telemechanique switch Schnieder isolation lockout switch on cabinet Simple clear plastic toolpost guard without lockout Curtain type leadscrew & shaft protection Schnieder MCB motor circuit protection (replaces old overload/fuse system)
Standard features:
- Gap bed
- Solid one piece cast base
- D1-6 camlock spindle
- Two speed motor providing 16 spindle speeds
- Footbrake
- Longitudinal stops
- 250mm D1-6 3 Jaw Chuck
- 250mm D1-6 4 Jaw Chuck
- D1-6 Faceplate
- Following steady rest
- Large roller type fixed steady rest
- LED work lamp
- Coolant system
Key features

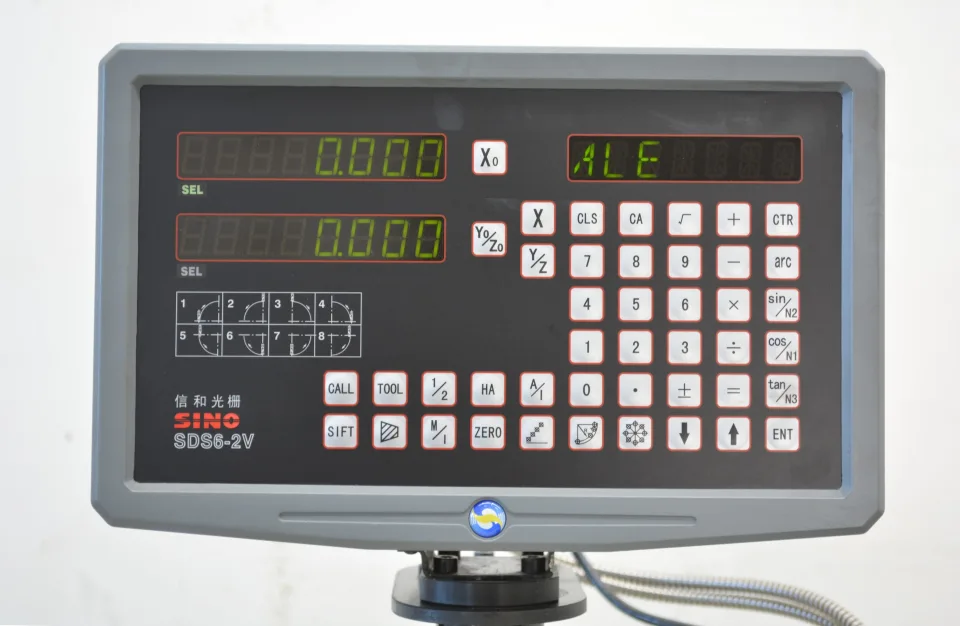

- SINO 2 Axis Digital readout system
- Italian style quick change toolpost BR/BP c/w 4 holders
- Right hand carriage wheel
- Siemens electrics
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
1640
Swing over bed
410mm
Swing over carriage
250mm
Swing in gap
580mm
Spindle bore
52mm
Distance between centres
1000mm
Bed width
274mm
Number of spindle speeds
16
Speed range
33 - 2,000 rpm
Thread range
0.2 - 7mm / 4 - 56 TPI
Tailstock taper
4MT
Motor power
6hp
Weight
1400kg
Floor space
2100 x 840 x 1220
Shipping
4.2m3, 1600kg
