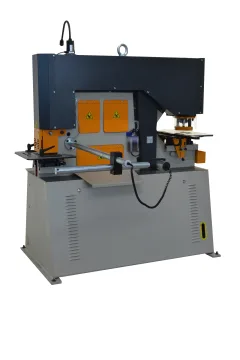

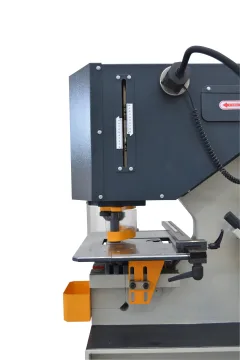

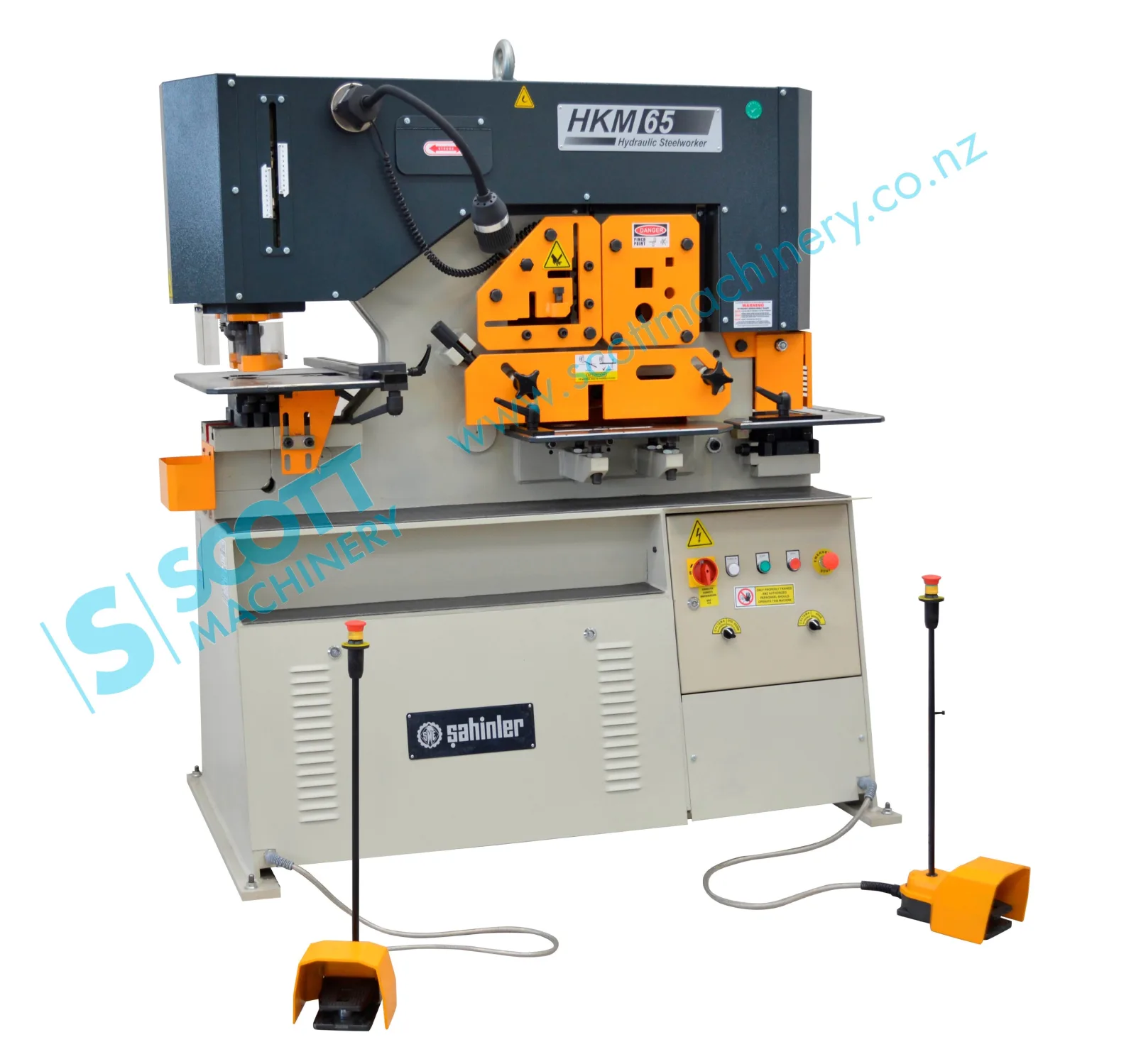

Sahinler HKM-65 Hydraulic Punch & Shearing Machine

65 Ton capacity 3 phase Made in Europe

$29,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Rated capacity 65 Ton
Punching example 26mm round through 20mm mild steel
Throat depth 305mm
Stroke length 55mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

65 Ton capacity 3 phase Made in Europe

Made in Europe

  • Heavy duty machine construction from high quality steel
  • Dual cylinder design with adjustable stops
  • Universal die bolster
  • Heavy duty support tables with guides
  • Central lubrication pump
  • Accepts Scotchman XL type punch & dies
  • Easy change punch system
  • Dual operation via 2 electric remote foot pedals

Standard accessories:

  • 1x 22mm punch & die
  • Halogen lamp
  • Back gauge with electric switch

Optional:

  • Press brake attachment
  • Round punch & die sets 5-31mm available ex stock
  • Various shapes and sizes of punch & dies available upon request

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.

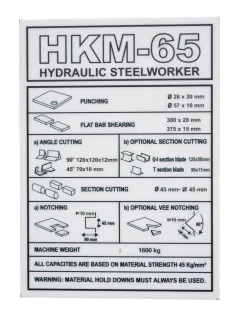

Punching
Rated capacity 65 Ton
Punching example 26mm round through 20mm mild steel
Throat depth 305mm
Stroke length 55mm
Shearing
Round bar 45mm
Square bar 45mm
Flat plate shearing examples 300 x 20mm or 375 x 15mm
Blade length 380mm
Angle iron shear
at 90deg 120 x 120 x 12mm
at 45deg 80 x 80mm
Notching
Rectangular notching (WxD) 45 x 90 x 10mm
Machine technical specification
Motor power 5.5 kW
Nett machine weight 1600kg
Machine dimensions (LxWxH) 1700 x 950 x 1880mm
