Sahinler HKM-85 Hydraulic Punch & Shearing Machine
1 / 15
Sahinler logo P&SH-0-5085

Sheet Metal & Fabrication · Punching & shearing

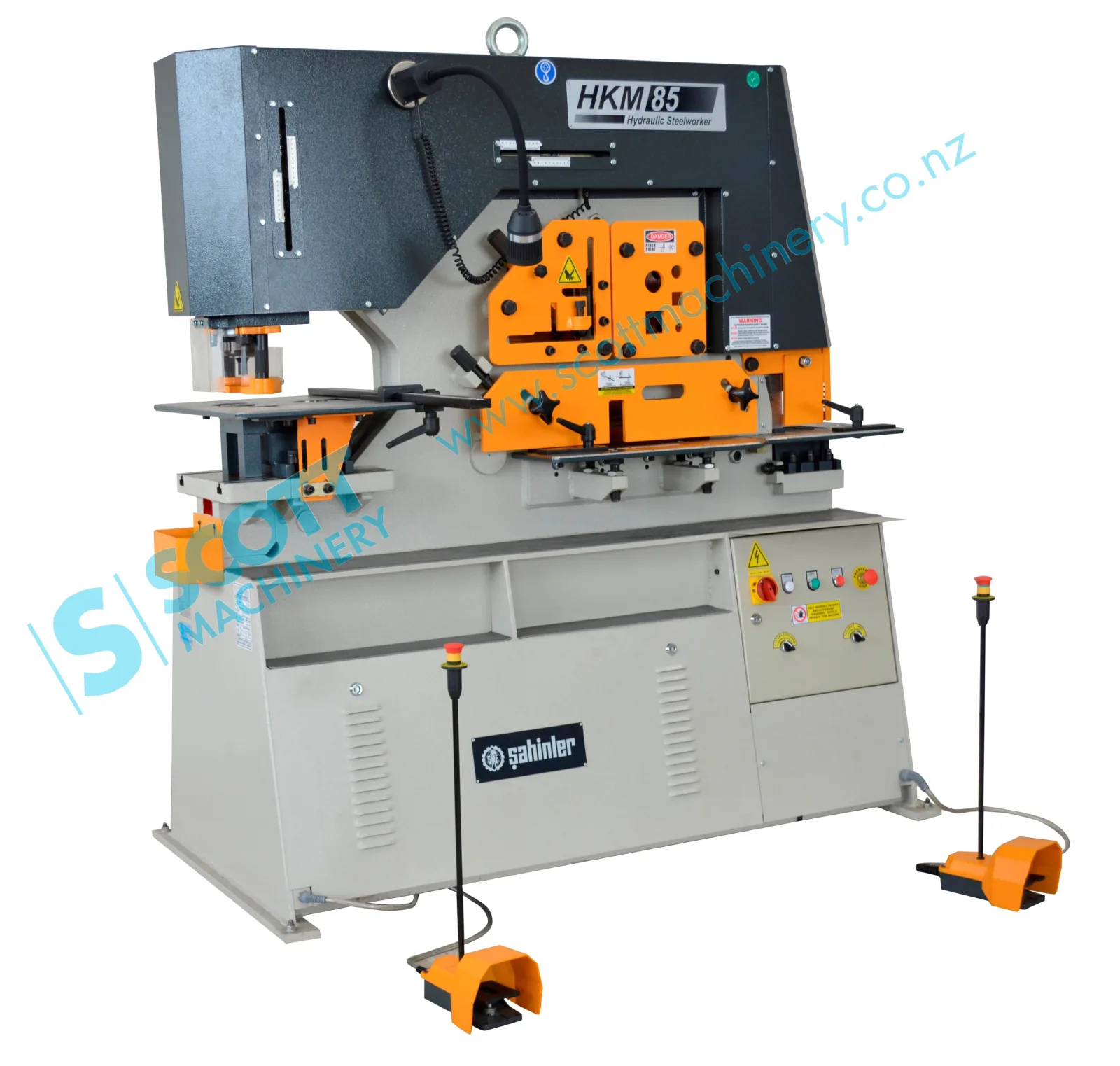

Sahinler HKM-85 Hydraulic Punch & Shearing Machine

85 Ton capacity Made in Europe

$36,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Rated capacity 85 Ton
Punching example 31mm dia. through 20mm steel
Throat depth 355mm
Stroke length 80mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Sahinler Metal Makina is a globally trusted leader in sheet metal working machinery, evolving from a family run textile equipment business in 1953 into a specialist manufacturer of bending, flanging, cutting, and pressing equipment. With cutting-edge CNC-EVO technology and a comprehensive product range, from plate rollers to ironworkers, Sahinler delivers high-quality, reliable machinery backed by decades of expertise and international certification

The Sahinler HKM 85 is a powerful and versatile hydraulic ironworker, expertly engineered for precision cutting, punching, notching, and shearing of various profile types. It offers robust performance with an impressive 85-ton pressing force, making it an essential asset for heavy-duty metal fabrication workshops

Features

  • Made in Europe
  • Heavy duty machine construction from high quality steel
  • Dual cylinder design with adjustable stops
  • Universal die bolster
  • Heavy duty support tables with guides
  • Central lubrication pump
  • Accepts Scotchman XL type punch & dies
  • Easy change punch system
  • Dual operation via 2 electric remote foot pedals

Standard accessories:

  • XL style 22mm punch & die
  • New model has excellent LED light bars over each working station.
  • Back gauge with electric switch

Optional:

  • Press brake attachment
  • Round punch & die sets 5-31mm available ex stock
  • Various shapes and sizes of punch & dies available upon request

Machine video

See Sahinler HKM-85 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.

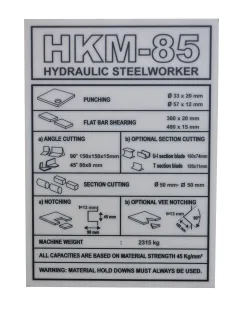

Punching
Rated capacity 85 Ton
Punching example 31mm dia. through 20mm steel
Throat depth 355mm
Stroke length 80mm
Shearing
Round bar 50mm
Square bar 50mm
Flat bar shearing examples 380 x 20mm or 480 x 15mm
Blade length 480mm
Angle Iron Shear
at 90deg 150 x 150 x 15mm
at 45deg 80 x 80 x 8mm
Notching
Rectangular notching (WxD) 52 x 100 x 13mm
Machine technical specifications
Motor power 7.5 kW / 10hp
Weight 2315kg
Floor space (LxWxH) 950 x 1920 x 2040mm
