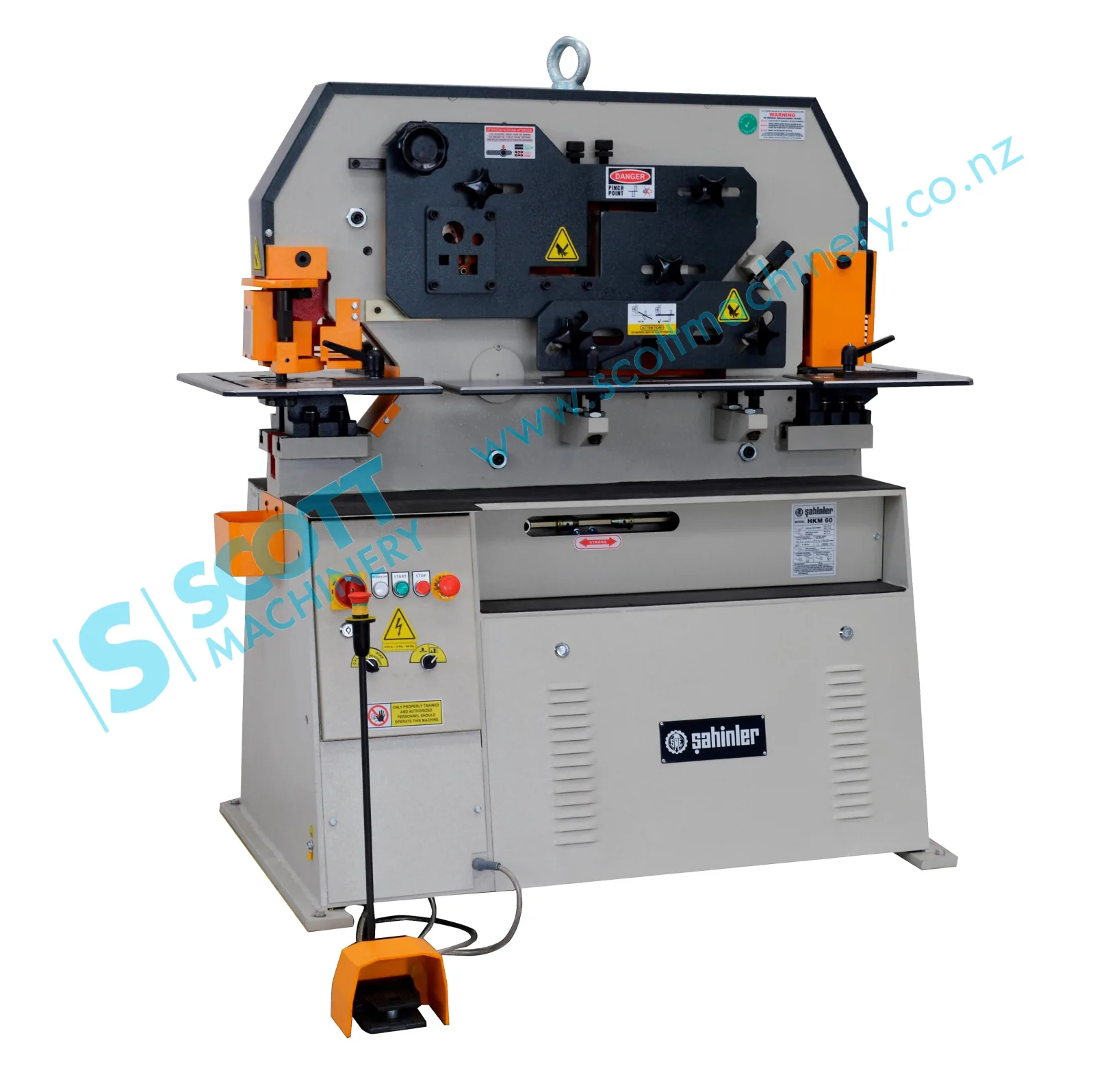

Sahinler HKM-60 Hydraulic Punch & Shearing Machine

60 Ton capacity 3 phase Made in Europe

$21,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Rated capacity 60 Ton
Punching example 28mm round through 15mm steel
Stroke length 55mm
Throat depth 220mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

60 Ton capacity 3 phase Made in Europe

Made in Europe

  • Heavy duty machine construction from high quality steel
  • Single cylinder design with adjustable stop
  • Universal die bolster
  • Heavy duty support tables with guides
  • Central lubrication pump
  • Accepts Scotchman XL type punch & dies
  • Easy change punch system
  • Operation via electric remote foot pedal

Standard accessories:

  • XL style 22mm punch & die
  • Press brake attachment (image 11)

Optional:

  • Round punch & die sets 5-31mm available ex stock
  • Various shapes and sizes of punch & dies available upon request

Machine video

See Sahinler HKM-60 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Punching
Rated capacity 60 Ton
Punching example 28mm round through 15mm steel
Stroke length 55mm
Throat depth 220mm
Shearing
Round bar 40mm
Square bar 35mm
Flat plate shearing examples 200 x 20mm or 300 x 15mm
Blade length 317mm
Angle Iron Shear
at 90deg 120 x 120 x 12mm
at 45deg 80 x 80mm
Notching
Rectangular notching (WxD) 42 x 100 x 10mm
Machine technical specification
Motor power 4 kW
Nett machine weight 1440kg
Machine dimensions(LxWxH) 1520 x 950 x 1780mm
