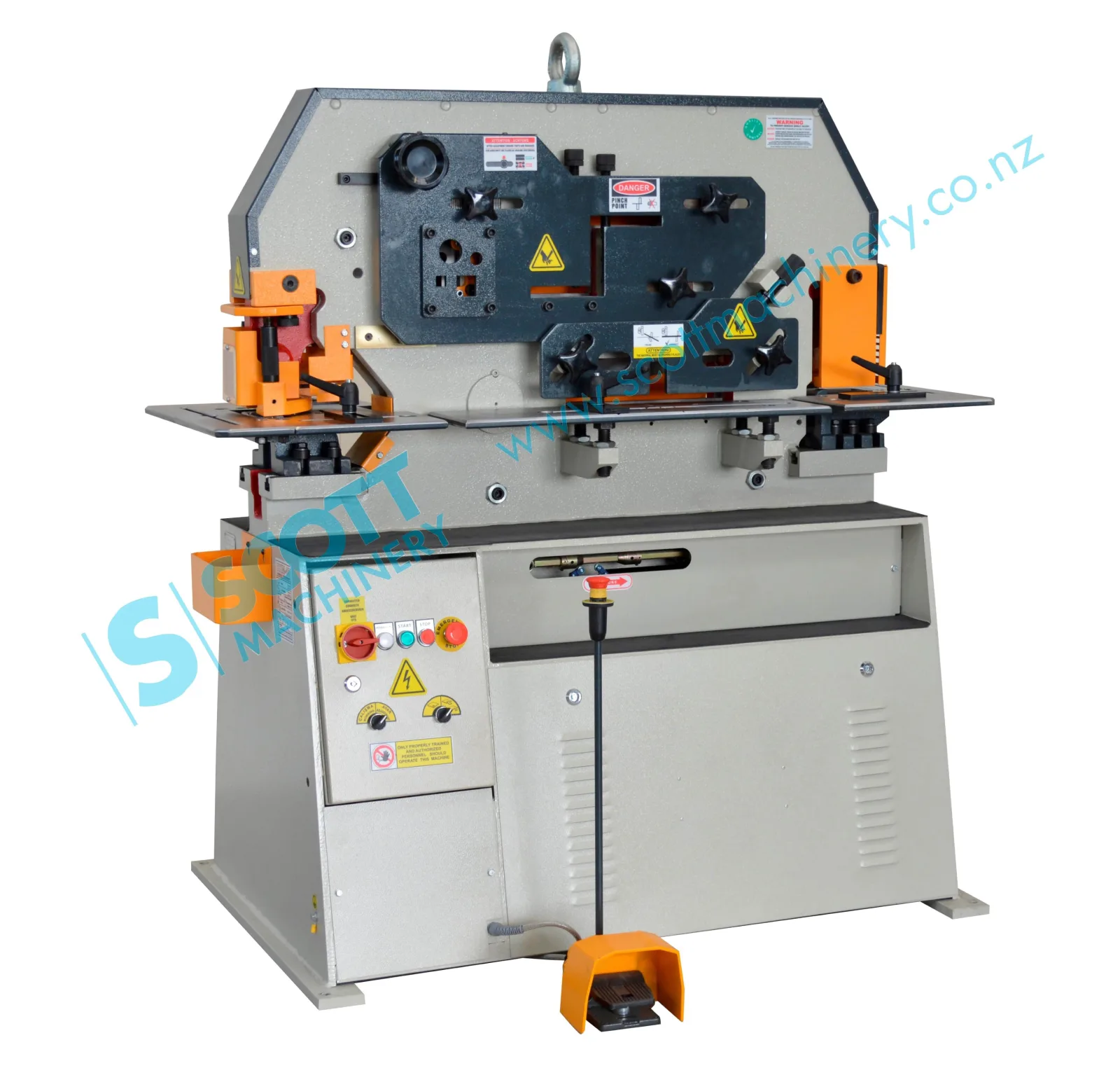

Sahinler HKM-45 Hydraulic Punch & Shearing Machine

45 Ton capacity 3 phase Made in Europe

$13,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Rated capacity 45 Ton
Puncing example 22mm dia through 15mm mild steel
Stroke length 50mm
Throat depth 175mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

45 Ton capacity 3 phase Made in Europe

Made in Europe

  • Heavy Duty machine construction from high quality steel
  • Single cylinder design with adjustable stop
  • Universal die bolster
  • Heavy duty support tables with guides
  • Central lubrication pump
  • Accepts Scotchman XL type punch & dies
  • Easy change punch system

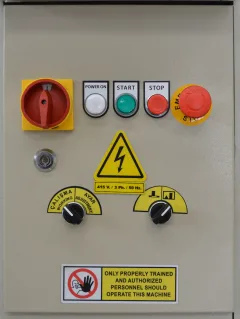

  • Operation via electric remote foot pedal

Standard accessories:

  • XL style 22mm punch and die
  • Press brake attachment (image 10)

Optional:

  • Round punch & die sets 5-31mm available ex stock
  • Various shapes and sizes of punch & dies available upon request

Machine video

See Sahinler HKM-45 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Punching
Rated capacity 45 Ton
Puncing example 22mm dia through 15mm mild steel
Stroke length 50mm
Throat depth 175mm
Shearing
Round bar 30mm
Square bar 25mm
Flat plate shearing examples 200 x 15mm or 300 x 12mm
Blade length 316mm
Angle Iron Shear
at 90deg 100 x 100 x 10mm
at 45deg 70 x 70mm
Notching
Rectangular notching (WxD) 35 x 75 x 8mm
Machine technical specification
Motor power 4 kW
Nett machine weight 1165kg
Machine dimensions (LxWxH) 1430 x 950 x 1680mm
