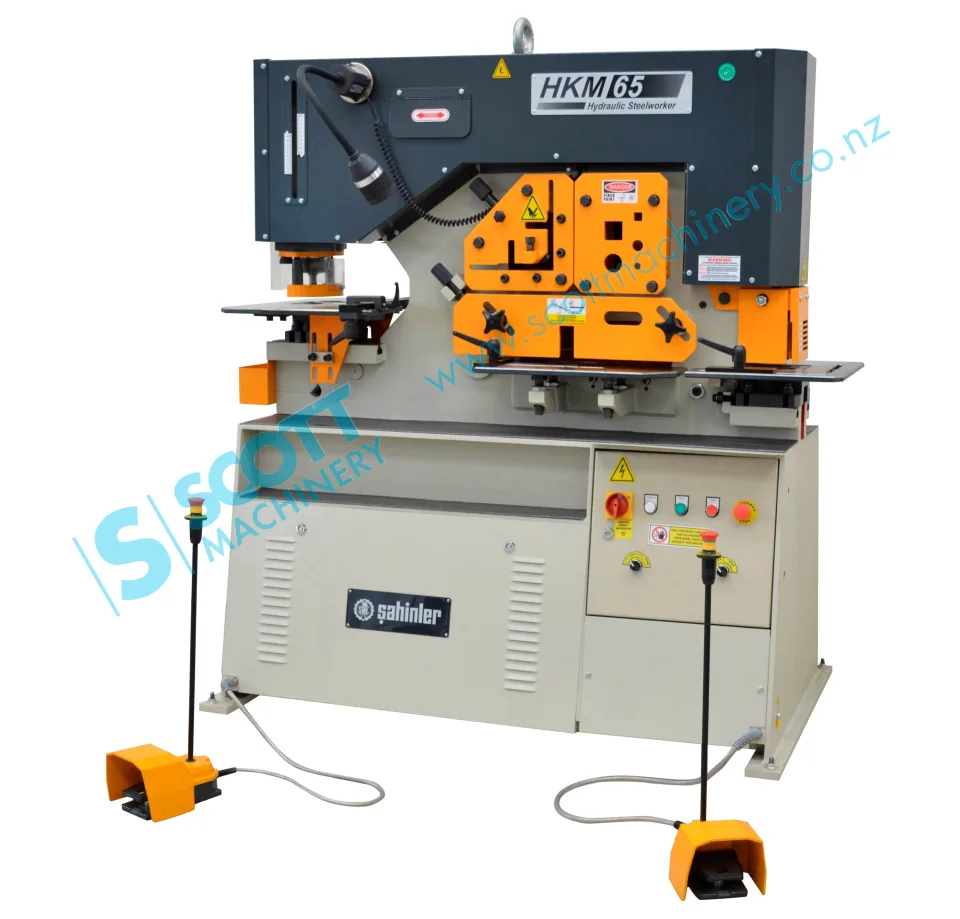

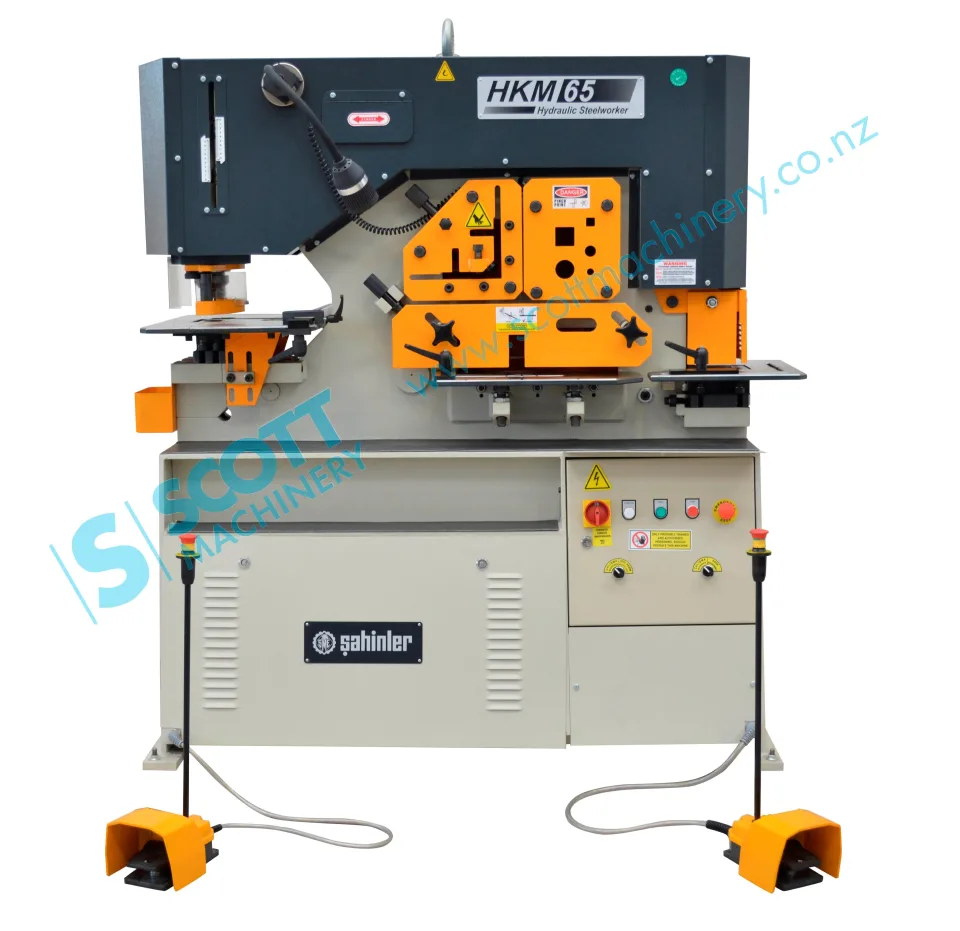

Sahinler HKM-65 Hydraulic Punch & Shearing Machine
Dual Operator
$29,900.00
P&SH-0-5065 | Prices exclude GST
Product overview
About this machine.
65 Ton capacity 3 phase Made in Europe
Made in Europe
- Heavy duty machine construction from high quality steel
- Dual cylinder design with adjustable stops
- Universal die bolster
- Heavy duty support tables with guides
- Central lubrication pump
- Accepts Scotchman XL type punch & dies
- Easy change punch system
- Dual operation via 2 electric remote foot pedals
Standard accessories:
- 1x 22mm punch & die
- Halogen lamp
- Back gauge with electric switch
Optional:
- Press brake attachment
- Round punch & die sets 5-31mm available ex stock
- Various shapes and sizes of punch & dies available upon request
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Punching
Rated capacity
65 Ton
Punching example
26mm round through 20mm mild steel
Throat depth
305mm
Stroke length
55mm

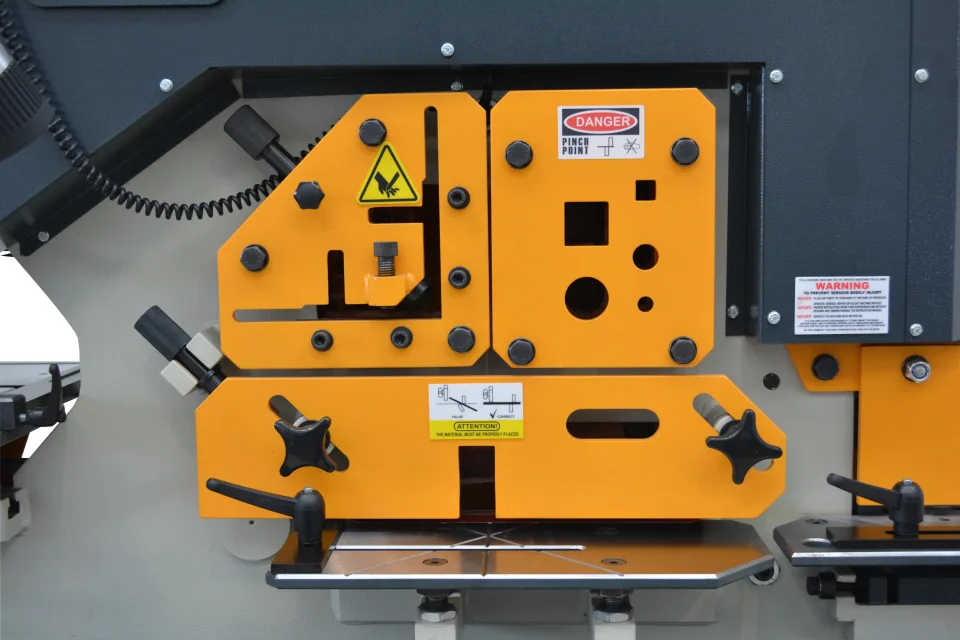

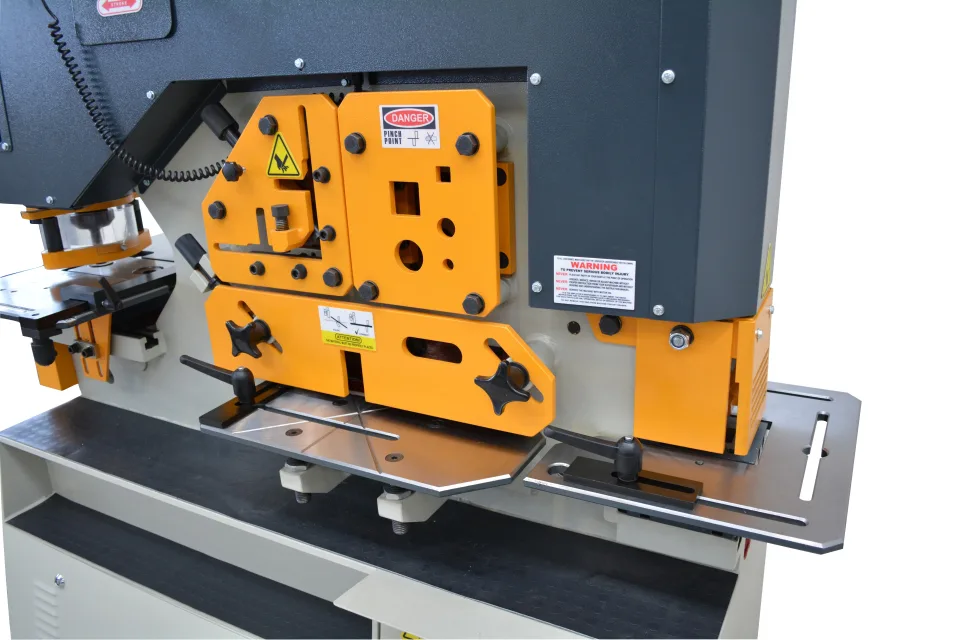

Shearing
Round bar
45mm
Square bar
45mm
Flat plate shearing examples
300 x 20mm or 375 x 15mm
Blade length
380mm
Angle iron shear
at 90deg
120 x 120 x 12mm
at 45deg
80 x 80mm
Notching
Rectangular notching (WxD)
45 x 90 x 10mm
Machine technical specification
Motor power
5.5 kW
Nett machine weight
1600kg
Machine dimensions (LxWxH)
1700 x 950 x 1880mm
