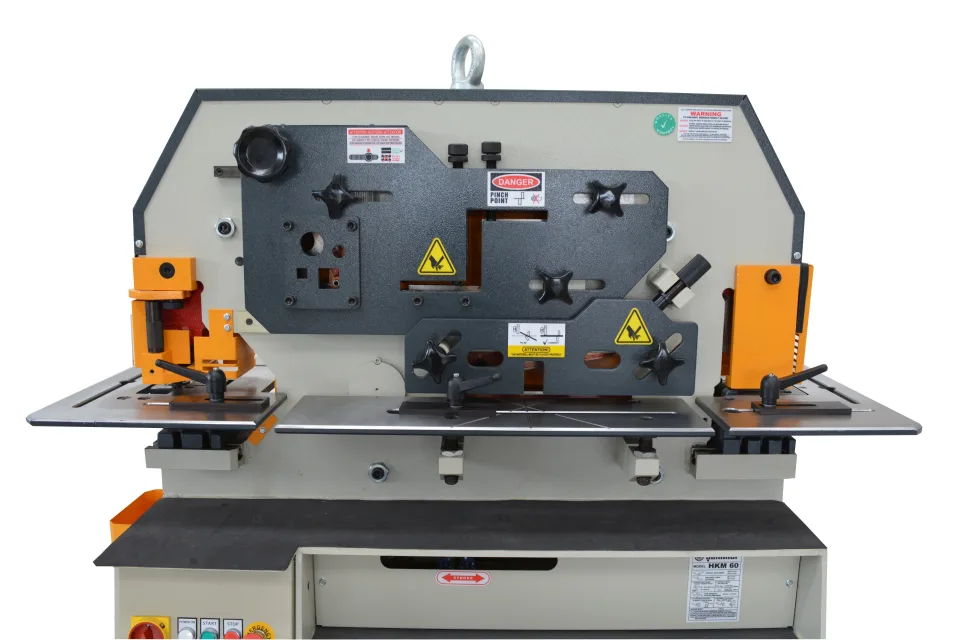

Sahinler HKM-60 Hydraulic Punch & Shearing Machine
$21,990.00
P&SH-0-5060 | Prices exclude GST
Product overview
About this machine.
60 Ton capacity 3 phase Made in Europe
Made in Europe
- Heavy duty machine construction from high quality steel
- Single cylinder design with adjustable stop
- Universal die bolster
- Heavy duty support tables with guides
- Central lubrication pump
- Accepts Scotchman XL type punch & dies
- Easy change punch system
- Operation via electric remote foot pedal
Standard accessories:
- XL style 22mm punch & die
- Press brake attachment (image 11)
Optional:
- Round punch & die sets 5-31mm available ex stock
- Various shapes and sizes of punch & dies available upon request
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Punching
Rated capacity
60 Ton
Punching example
28mm round through 15mm steel
Stroke length
55mm
Throat depth
220mm
Shearing
Round bar
40mm
Square bar
35mm
Flat plate shearing examples
200 x 20mm or 300 x 15mm
Blade length
317mm
Angle Iron Shear
at 90deg
120 x 120 x 12mm
at 45deg
80 x 80mm
Notching
Rectangular notching (WxD)
42 x 100 x 10mm
Machine technical specification
Motor power
4 kW
Nett machine weight
1440kg
Machine dimensions(LxWxH)
1520 x 950 x 1780mm
