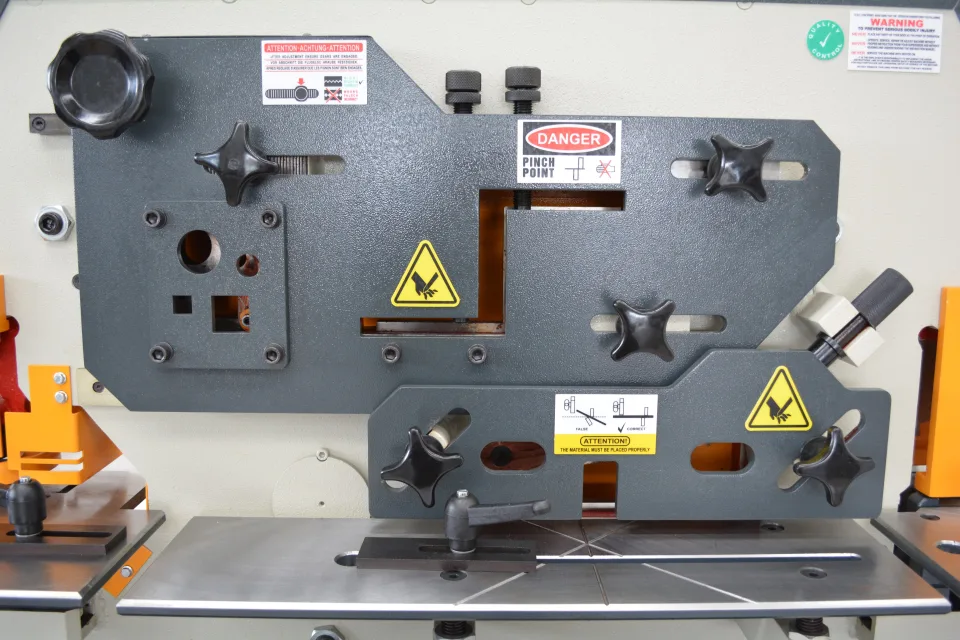

Sahinler HKM-45 Hydraulic Punch & Shearing Machine
$13,900.00
P&SH-0-5045 | Prices exclude GST
Product overview
About this machine.
45 Ton capacity 3 phase Made in Europe
Made in Europe
- Heavy Duty machine construction from high quality steel

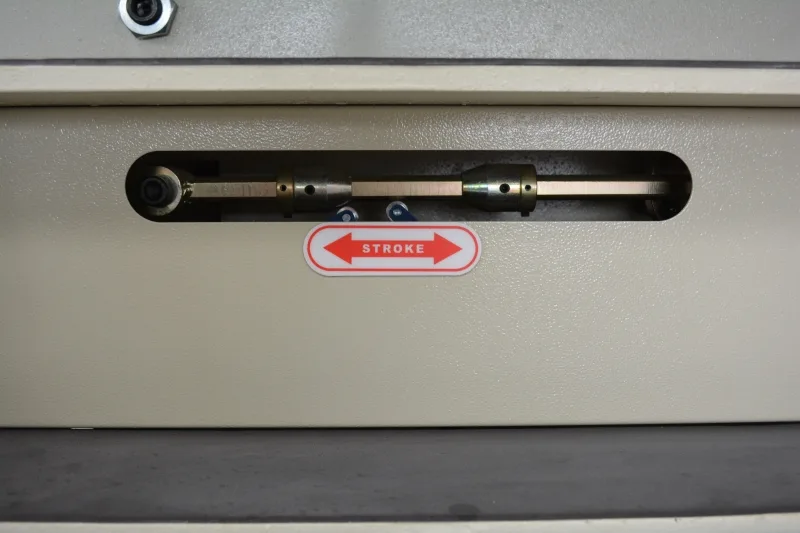

- Single cylinder design with adjustable stop
- Universal die bolster
- Heavy duty support tables with guides
- Central lubrication pump

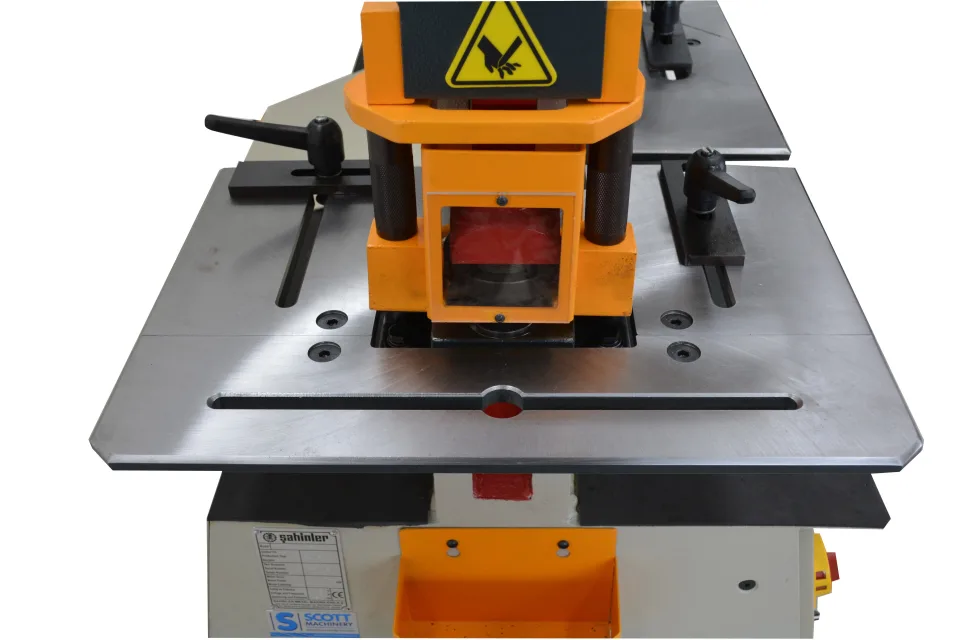

- Accepts Scotchman XL type punch & dies
- Easy change punch system
- Operation via electric remote foot pedal
Standard accessories:
- XL style 22mm punch and die
- Press brake attachment (image 10)
Optional:
- Round punch & die sets 5-31mm available ex stock
- Various shapes and sizes of punch & dies available upon request
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Punching
Rated capacity
45 Ton
Puncing example
22mm dia through 15mm mild steel
Stroke length
50mm
Throat depth
175mm
Shearing
Round bar
30mm
Square bar
25mm
Flat plate shearing examples
200 x 15mm or 300 x 12mm
Blade length
316mm
Angle Iron Shear
at 90deg
100 x 100 x 10mm
at 45deg
70 x 70mm
Notching
Rectangular notching (WxD)
35 x 75 x 8mm
Machine technical specification
Motor power
4 kW
Nett machine weight
1165kg
Machine dimensions (LxWxH)
1430 x 950 x 1680mm
