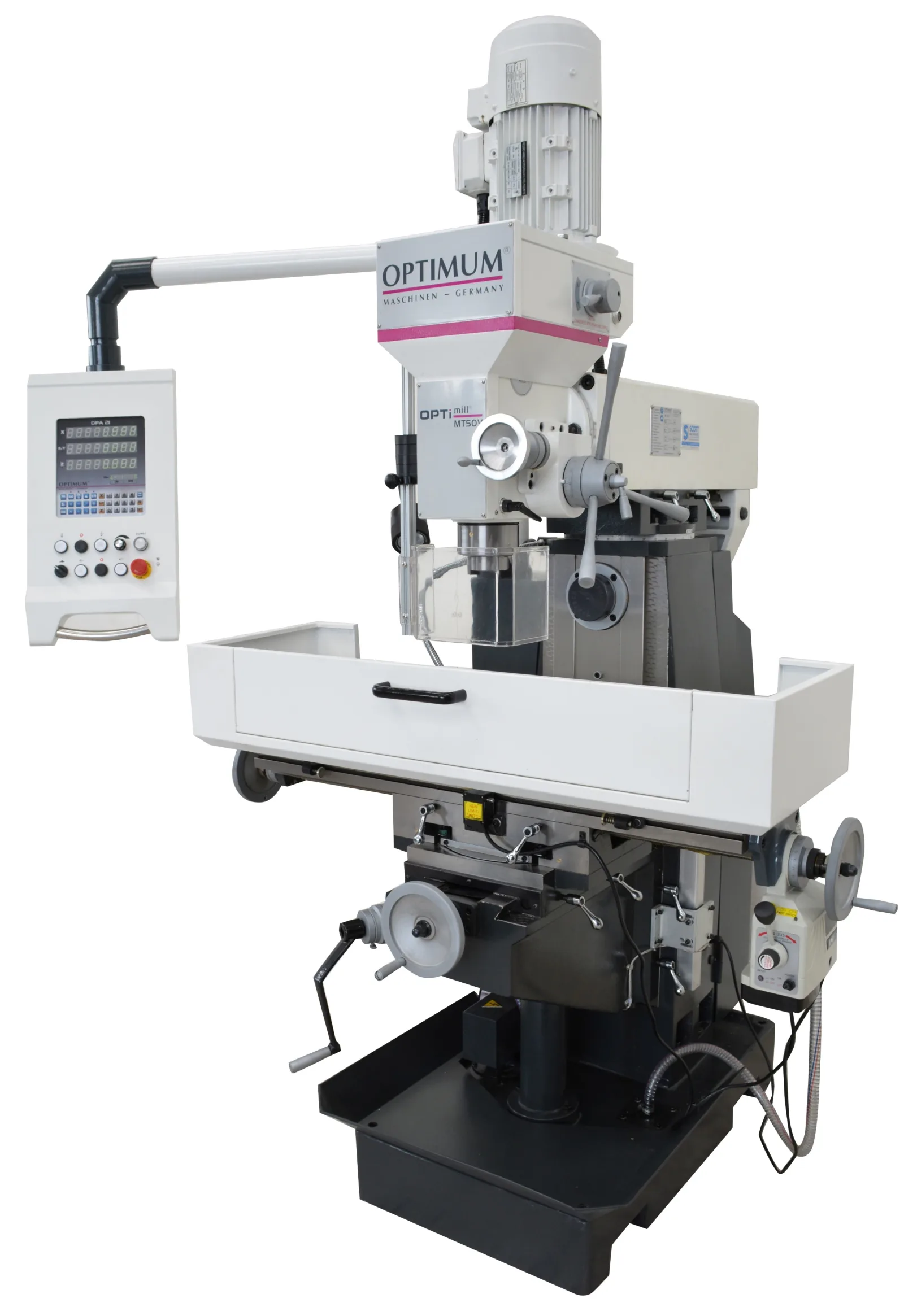

OPTIMUM MT50V Vert/Horizontal Mill

Name: OPTIMUM MT50V Vert/Horizontal Mill – c/w DRO, 230v
Brand: OPTIMUM
SKU: MTUR-0-0015

Workshop quality, Horizontal and Vertical mill

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Working surface of table 1000mm x 240mm (M12 x 16 tee nuts)

Longitudinal table travel 580mm

Cross table travel 200mm

Vertical table travel Z 340mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum MT50V is a versatile, single phase, universal milling machine with both vertical and horizontal spindles, ideal for a wide range of precision metalworking tasks. Its NT30 vertical and NT40 horizontal spindles, powered by 3HP and 2HP motors respectively, provide variable speeds for optimal control on different materials. The 1,000mm x 240mm table offers generous travel, while the solid cast iron construction ensures stability and accuracy. Equipped with a 3 axis digital readout, coolant system, halogen lamp, and safety guards, the MT50V combines reliability, precision, and flexibility for small to medium workshops

Features:

Vertical NT30 spindle with 3 HP motor Electronic variable speed vertical spindle speeds 100-2,000 RPM
Vertical spindle digital rpm display
Head tilt +/- 90 degrees L/R
Horizontal NT40 spindle with 2 HP motor, 9-speed range 60-1,350 RPM
Table size: 1,000 mm x 240 mm with 620 mm X, 195 mm Y, 310 mm Z travel
Quill travel 127 mm
Solid gray cast iron construction for stability and vibration absorption

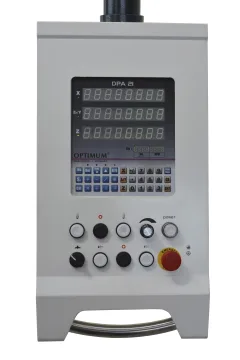

3 axis digital readout (DPA21) for precise positioning
Integrated coolant system with splash tray
Halogen work lamp and comprehensive safety guards included
Suitable for vertical and horizontal milling, drilling, and boring operations
Single phase 230 V power supply
