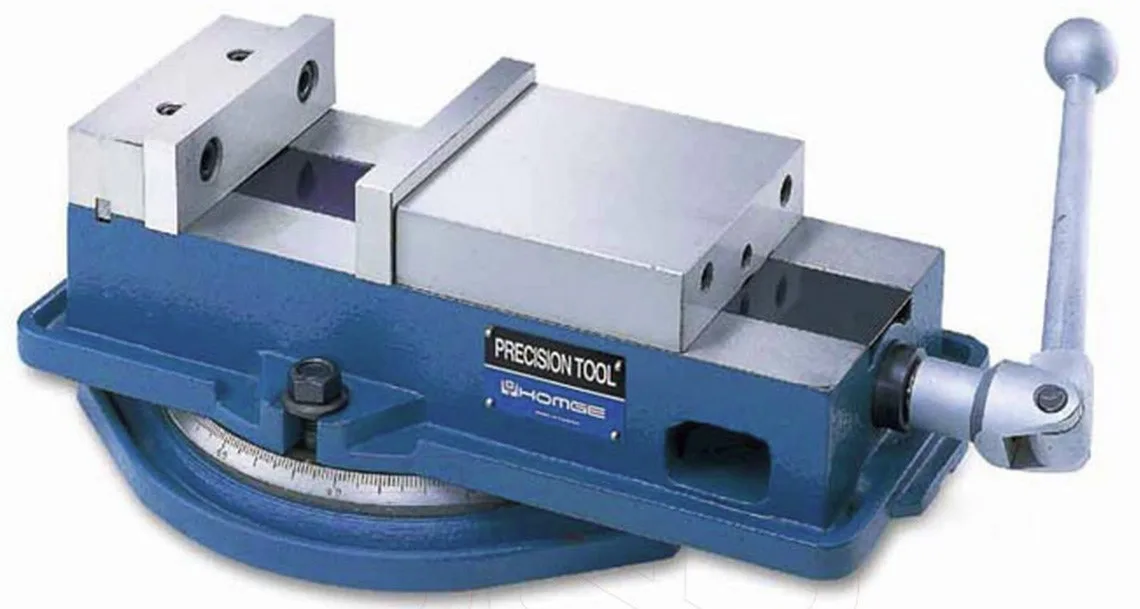

Homge HAV Series Precision Angle Lock Machine Vice Series

Name: Homge HAV Series Precision Angle Lock Machine Vice Series
Brand: Homge
SKU: WEB-ANGLE LOCK VICES

Homge HAV Angle Lock Vices

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

HAV Series Precision Angle Lock Machine Vices are designed for secure, repeatable workholding in milling, drilling, and general machining applications. The angle-lock design applies downward force on the workpiece, keeping both jaws seated and parallel during clamping to improve stability under load. Built for general machining environments, the HAV series combines rigidity with long-term wear resistance. Heat-treated slideways and hardened wear components maintain accuracy under regular production use, while protective features help reduce contamination and extend service life.

Features:

High tensile cast iron body for rigidity and vibration damping
Hardened alloy steel jaws for strength and wear resistance
Hardened and ground slideways for smooth travel and long-term accuracy
Swivel base for flexible positioning and setup on machine tables
Two set screws in fixed jaw prevent rearward tilt under high clamping loads
Needle bearing thrust collar reduces friction and increases clamping force capacity
Iron leadscrew cover protects leadscrew from swarf and contamination
Dust collars on leadnut prevent chip ingress and extend service life
Suitable for CNC milling, drilling, and general workshop machining applications
Designed for consistent performance in high-use production environments

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Homge HAV Series
HOMGE	Jaw width	Opening	Weight	Price Excl GST
HAV4	100mm	107mm	20 kg	$548.00
HAV5	125mm	110mm	29 kg	$599.00
HAV6	160mm	138mm	41kg	$698.00
Super 6 Opening 8 (non swivel base)	160mm	200mm	50 kg	$720.00
HAV8	200mm	198mm	80 kg	POA
HAV12	300mm	302mm	125 kg	POA
