OPTIMUM MT50V Vert/Horizontal Mill
c/w DRO, 230v
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

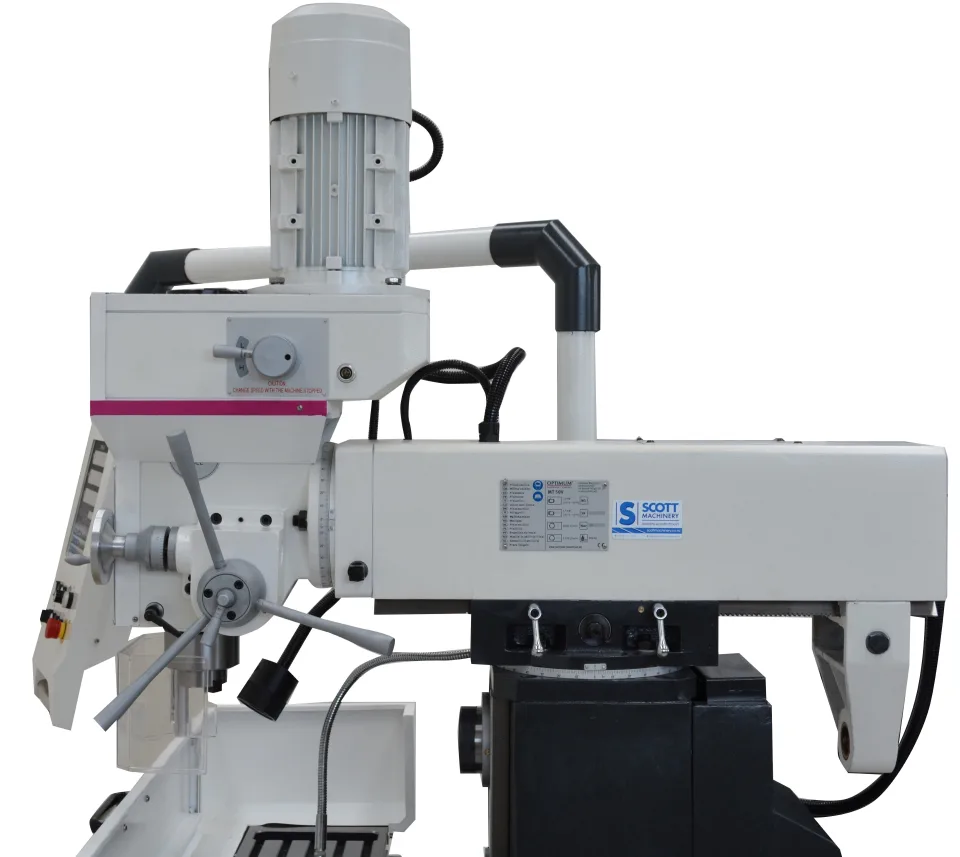

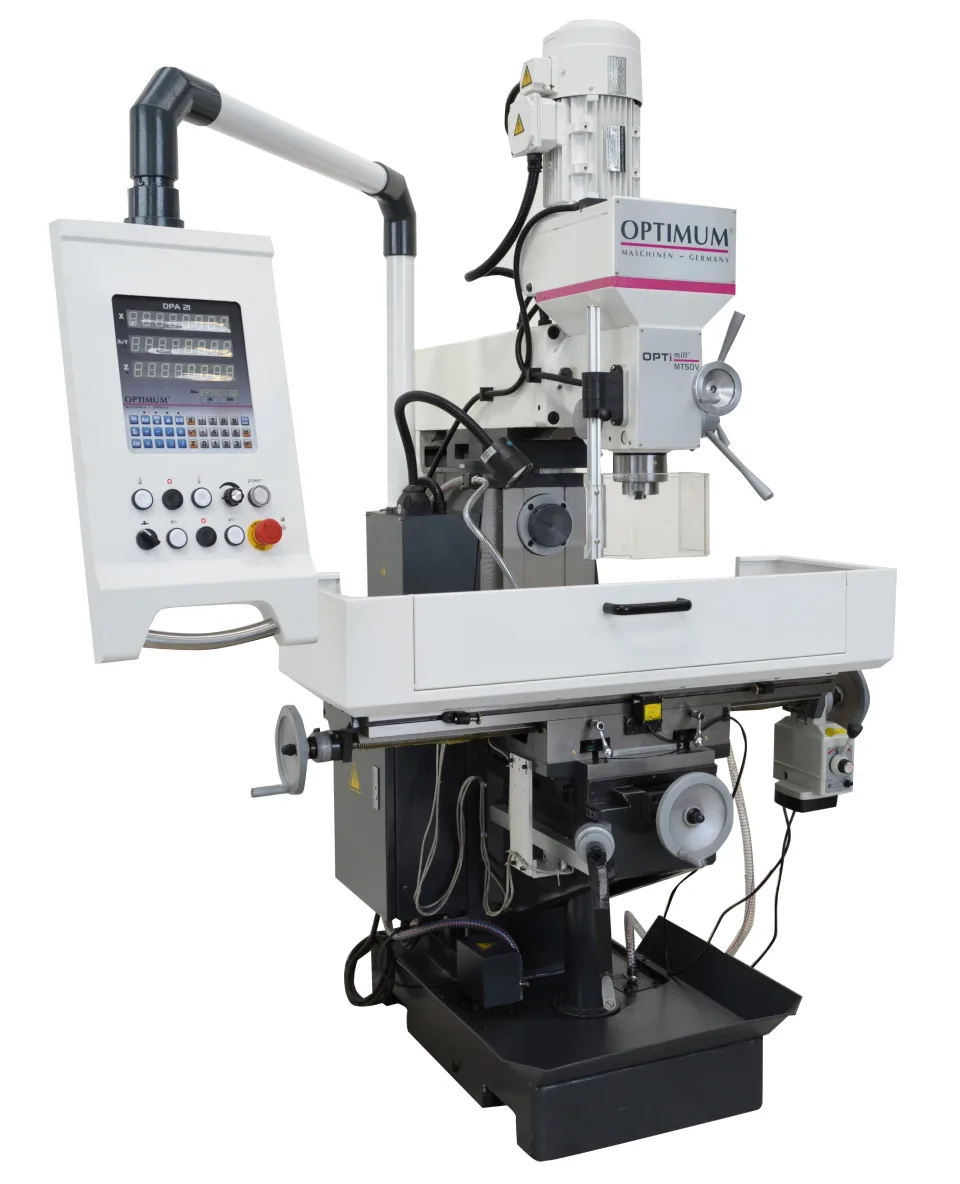

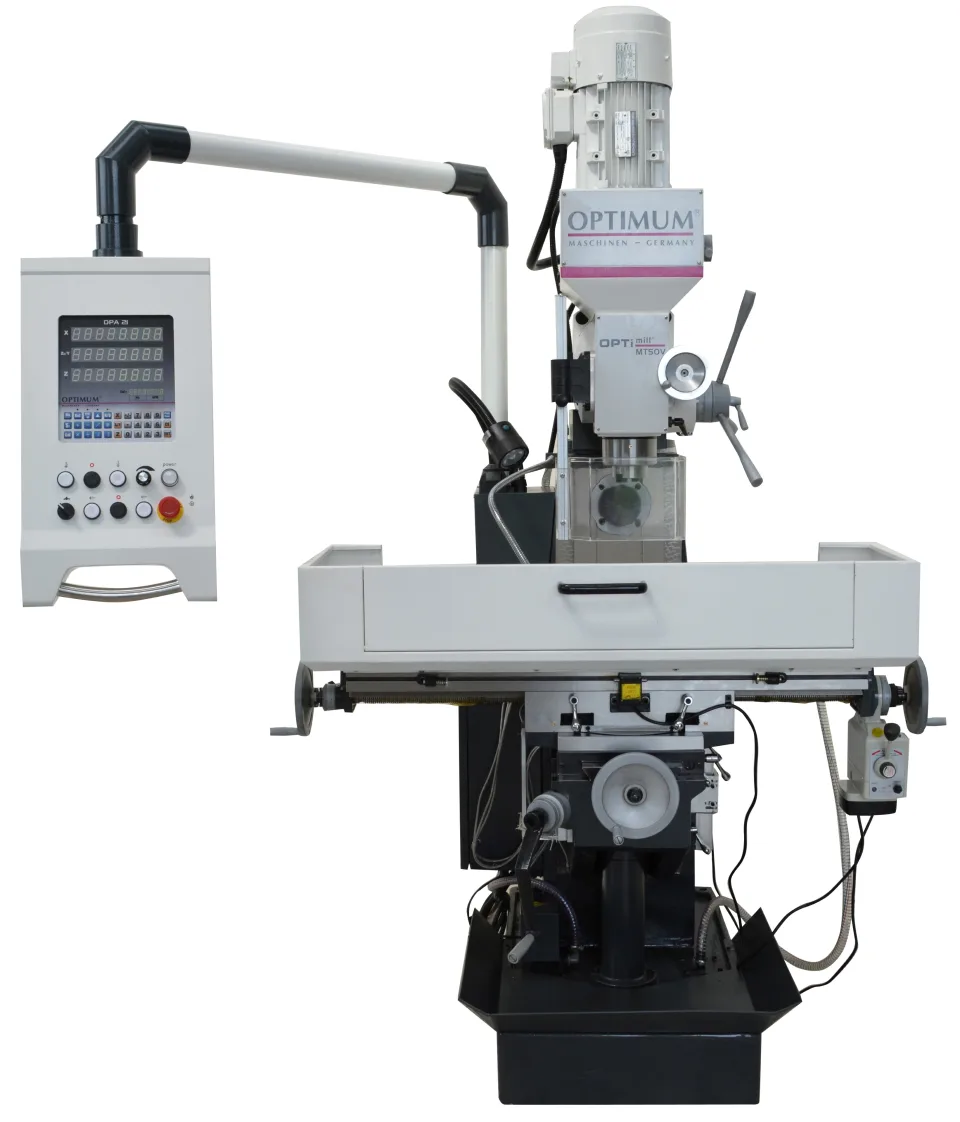

The Optimum MT50V is a versatile, single phase, universal milling machine with both vertical and horizontal spindles, ideal for a wide range of precision metalworking tasks. Its NT30 vertical and NT40 horizontal spindles, powered by 3HP and 2HP motors respectively, provide variable speeds for optimal control on different materials. The 1,000mm x 240mm table offers generous travel, while the solid cast iron construction ensures stability and accuracy. Equipped with a 3 axis digital readout, coolant system, halogen lamp, and safety guards, the MT50V combines reliability, precision, and flexibility for small to medium workshops
Features:
- Vertical NT30 spindle with 3 HP motor Electronic variable speed vertical spindle speeds 100-2,000 RPM
- Vertical spindle digital rpm display
- Head tilt +/- 90 degrees L/R
- Horizontal NT40 spindle with 2 HP motor, 9-speed range 60-1,350 RPM
- Table size: 1,000 mm x 240 mm with 620 mm X, 195 mm Y, 310 mm Z travel
- Quill travel 127 mm
- Solid gray cast iron construction for stability and vibration absorption
- 3 axis digital readout (DPA21) for precise positioning
- Integrated coolant system with splash tray
- Halogen work lamp and comprehensive safety guards included
- Suitable for vertical and horizontal milling, drilling, and boring operations
- Single phase 230 V power supply
Standard Accessories:
- OPTIMUM DPA21 3 Axis Digital Readout System
- Coolant system & splash tray
- LED lamp

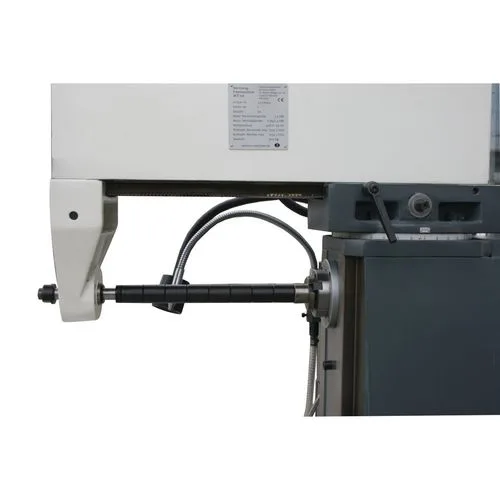

- Horizontal arbor & support bracket
Safety features:
- Latching Emergency stop separate from the on / off buttons
- Semi enclosed guarding
- Spindle guard with interlocked microswitch
- CE Conformity
Note: Supplied with 15AMP 3 pin plug & heavy duty 1.5m cable. Customer will need 15AMP socket.
