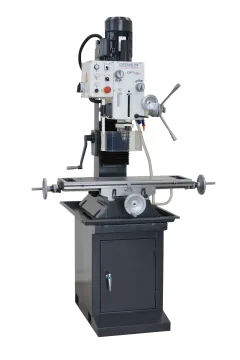

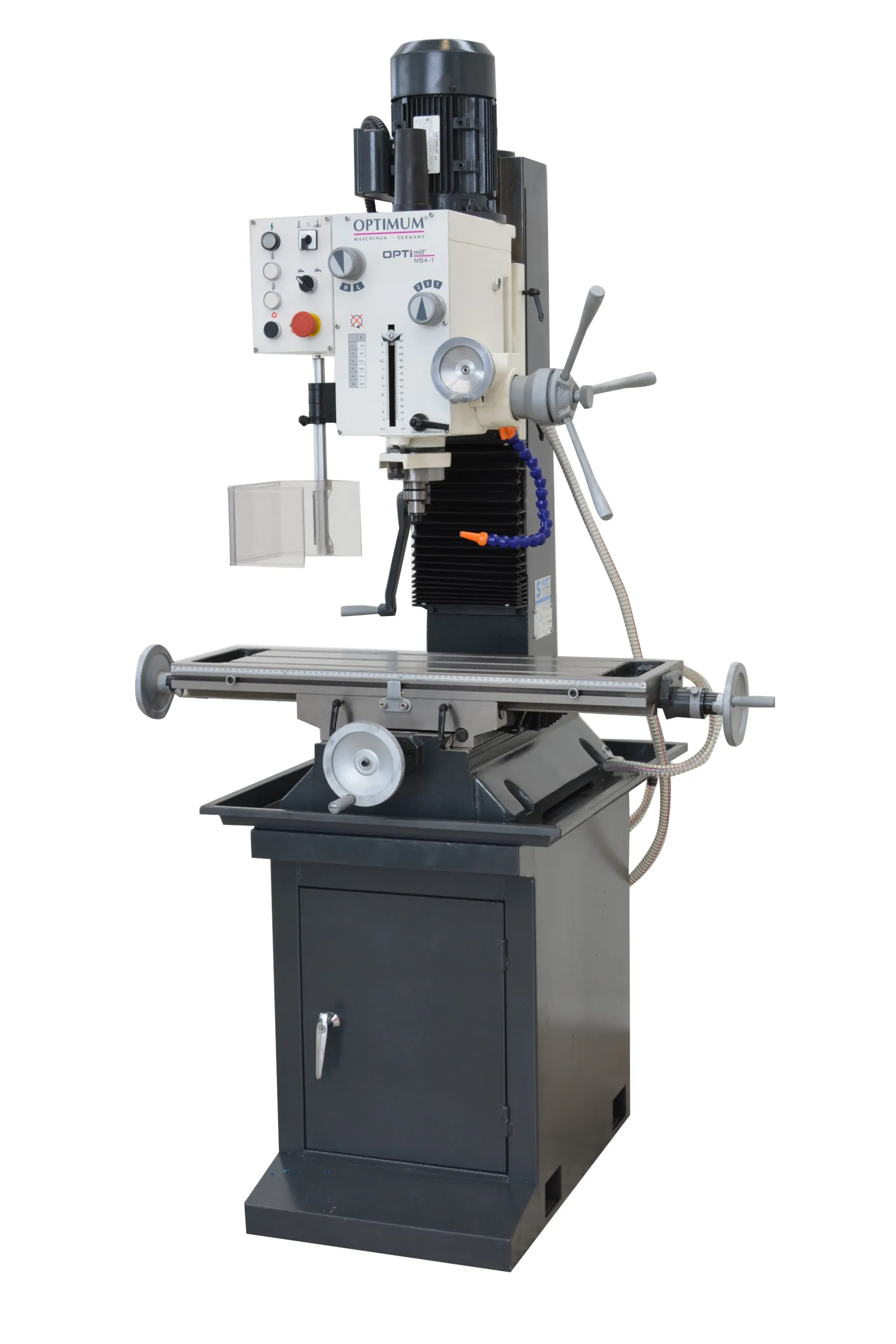

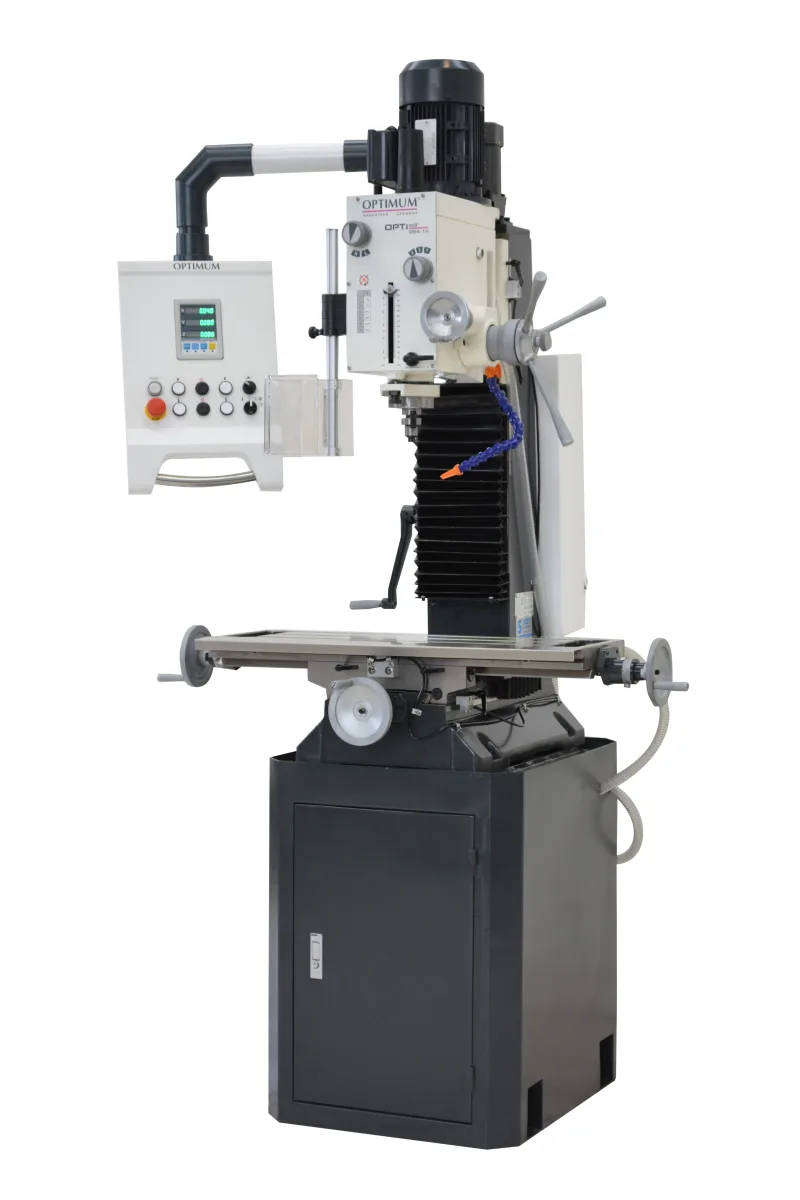

OPTIMUM MB4-1 Geared Head Mill Drill

Name: OPTIMUM MB4-1 Geared Head Mill Drill – c/w Stand, Coolant, 230v
Brand: OPTIMUM
SKU: MDRL-0-0096

Rigid box column style 2HP, 3MT 1 Phase, 6 spindle speeds, 32mm Drilling capacity.

On Order Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Drilling capacity steel 32mm

Continuous drilling capacity steel 28mm

Face milling capacity 63mm

End milling capacity 32mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum MB4-1 mill drill combines robust construction with versatile functionality, making it ideal for light industrial, maintenance, and serious workshop use. Featuring a powerful 1.1kW motor and gear-driven head, the MB4-1 delivers smooth, consistent torque across its 6-speed range (95-1,750rpm), suitable for a wide range of drilling and milling applications. A heavy-duty dovetail column ensures stability and precision, while the integrated fine feed and depth stop offer enhanced control for milling operations. With a tilting head, large worktable (700mm x 180mm), and 3MT spindle taper

Features:

Powerful 1.1 kW motor for reliable performance

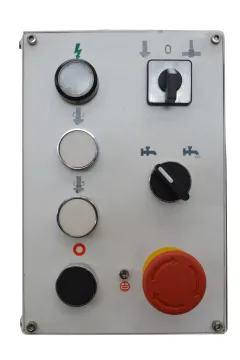

Fwd/rev spindle direction switch

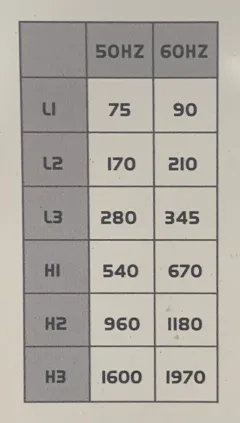

6-speed geared head (95-1,750 rpm) for consistent torque and material versatility
Rigid dovetail column design ensures stability and precision
Milling fine feed with scale and adjustable depth stop for controlled operation
Head tilts +/- 90 degrees left and right for angular machining
Large precision-ground table (700 x 180 mm) with T-slots for secure workholding
3MT spindle taper accommodates a wide range of tooling
Drilling & tapping functions
Integrated coolant tray and chip guard
Strong sheet metal stand with storage
Ideal for light industrial, maintenance, and serious workshop environments
