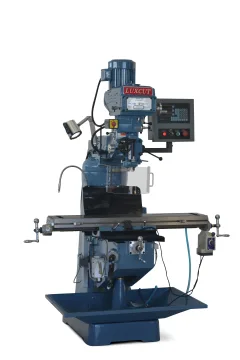

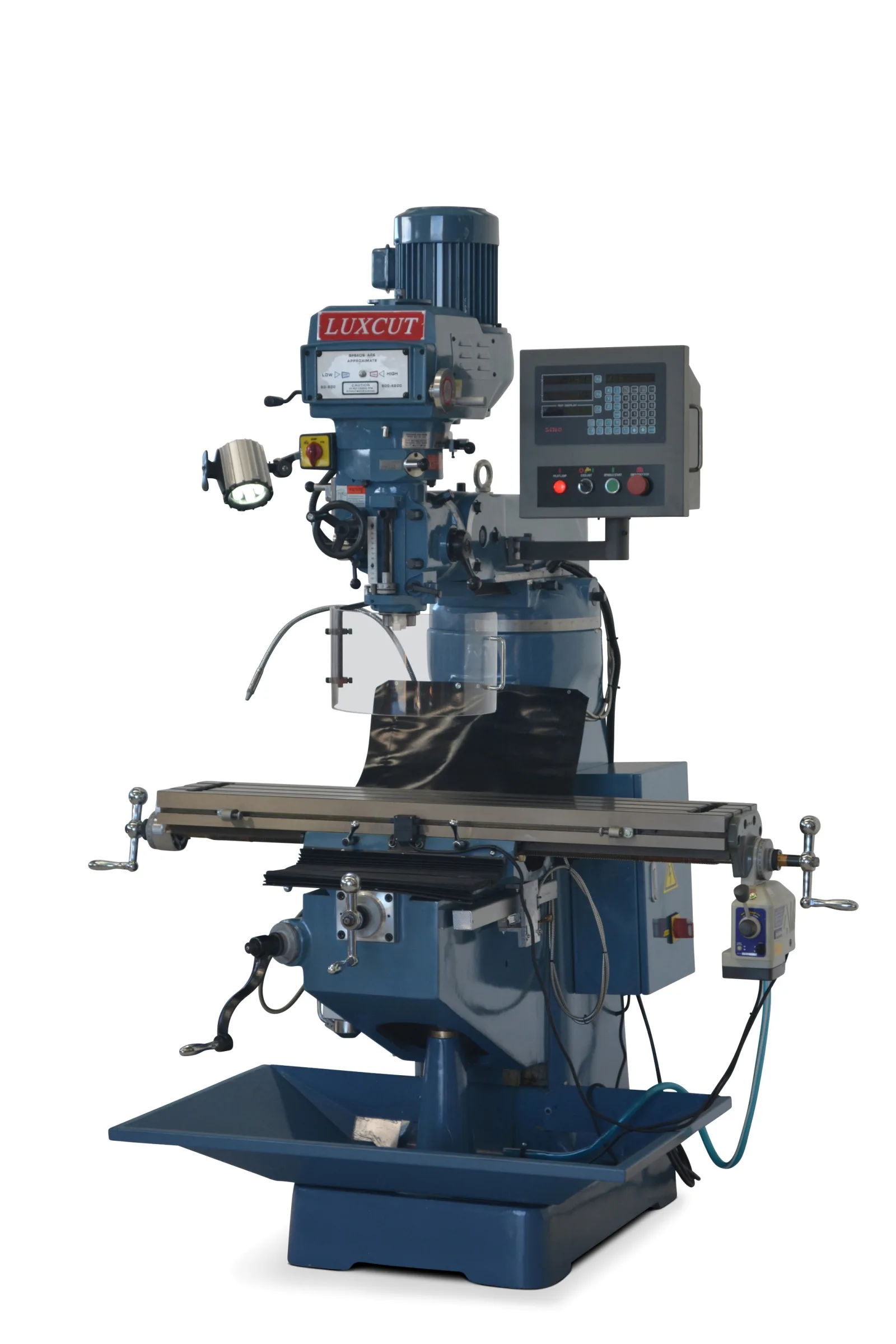

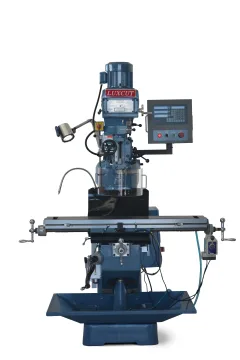

Luxcut TM-2VSL Turret Mill

230v model with variable speed head, Fitted with 3 axis digital readout

$17,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model TM-2VSL
Table size 1244 x 230mm
Longitudinal table travel 825mm
Cross table travel 310
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The TM-2VSL comes with a 3 axis Digital Readout fitted at the factory with all standard milling features.

Standard features:

  • Taiwanese variable speed change milling head
  • Variable speed change milling head
  • Digital Readout 3 Axis
  • Power Feed On Quill
  • ALIGN Longitudinal Power Feed
  • Centralised Lubrication System
  • Brake on spindle

Meehanite Casting

  • Hardened and ground table & slideways
  • Coolant System
  • Halogen Lamp
  • Splash tray
  • Interlocked spindle guard

Optional Extras

  • Three phase
  • Air power drawbar
  • Slotting attachment
  • Note: Supplied with 15A 3 pin plug & heavy duty 1.5m cable. Customer will need 15A socket.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model TM-2VSL
Table size 1244 x 230mm
Longitudinal table travel 825mm
Cross table travel 310
Vertical travel of knee 370
Spindle to table 90 - 460mm
Quill travel 127mm
Quill diameter 86mm
Quill feeds 0.045 / 0.086 / 0.142 mm/rev
Head tilt forward & back 45 deg L/R
Head tilt left & right 90 deg L/R
Spindle steps Infinite in high and low range
Spindle taper NT30 or R8 by request
Motor power 2.25kW 3HP 1 Ph (Customer requires 15Amp socket)
Dimensions (L x D x H) 1700 x 1750 x 2200mm
Machine nett weight 1000 kg
Shipping Details 5.5m3 / 1050kg
