METALEX logo ROLL-0-1306

Sheet Metal & Fabrication · Rolling & forming

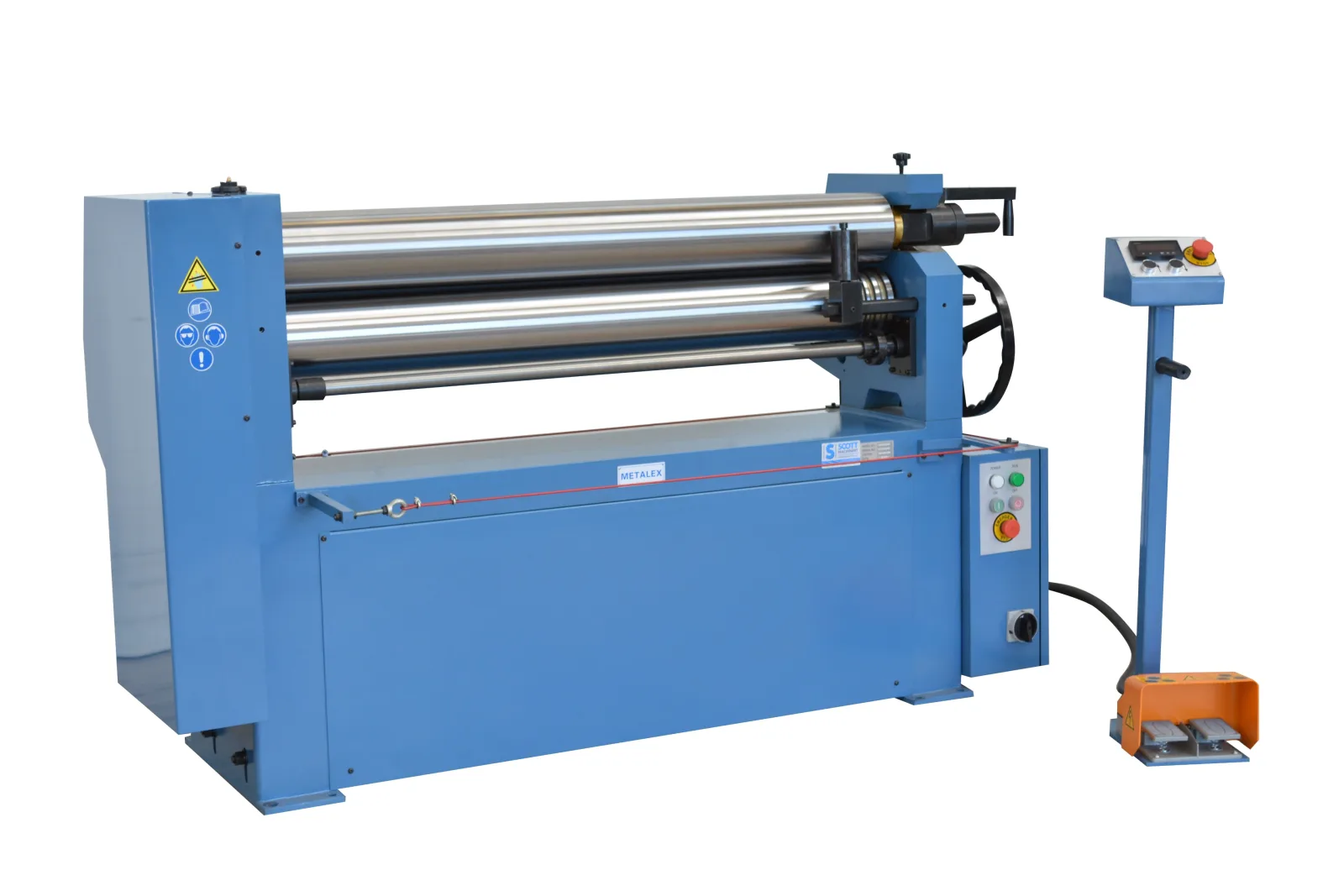

METALEX RM1300x6 Mechanical Plate Rolls

1300mm x 6mm with motorized back roll position & digital readout display

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

METALEX RM-1300x6mm
Capacity 1300mm x 6mm
Roll diameters 150mm
Minimum rolling diameter 220mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex RM1300 x 6mm plate rolls are a robust and reliable solution for precision sheet metal forming. Designed for durability and performance, these machines feature a rolling width of 1300mm and can handle plate thicknesses up to 6mm in mild steel. User freindly powered back roll positioning with a digital readout display. Convenient two speed motor provides two rolling speeds. Another key advantage is their hardened rolls, which provide increased wear resistance and longer service life ideal for demanding fabrication environments.

Features

  • 1300mm x 6mm capacity
  • Initial pinch assymetrical style for pre-bending.
  • Mechanically driven.
  • Swing out top roll for material removal.
  • Remote operator station with forward/reverse foot switch, back roll positioning switches & DRO display.

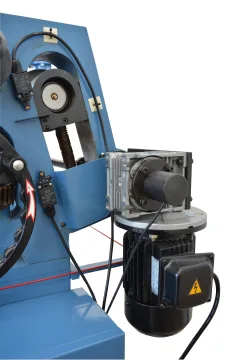

  • Motorized back-roll position with digital readout.
  • Conical bending feature.
  • Hardened rolls
  • High/low 2 speed main motor

Safety Features:

  • "E" stop and foot switch for safe, hands-free operation.
  • Safety wire with latching switch.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
METALEX RM-1300x6mm
Capacity 1300mm x 6mm
Roll diameters 150mm
Minimum rolling diameter 220mm
Main motor 3kW / 3ph 415V
Nett machine weight 1,100kg
Dimensions (L x D x H) 2080mm x 800mm x 1340mm (1,125kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
