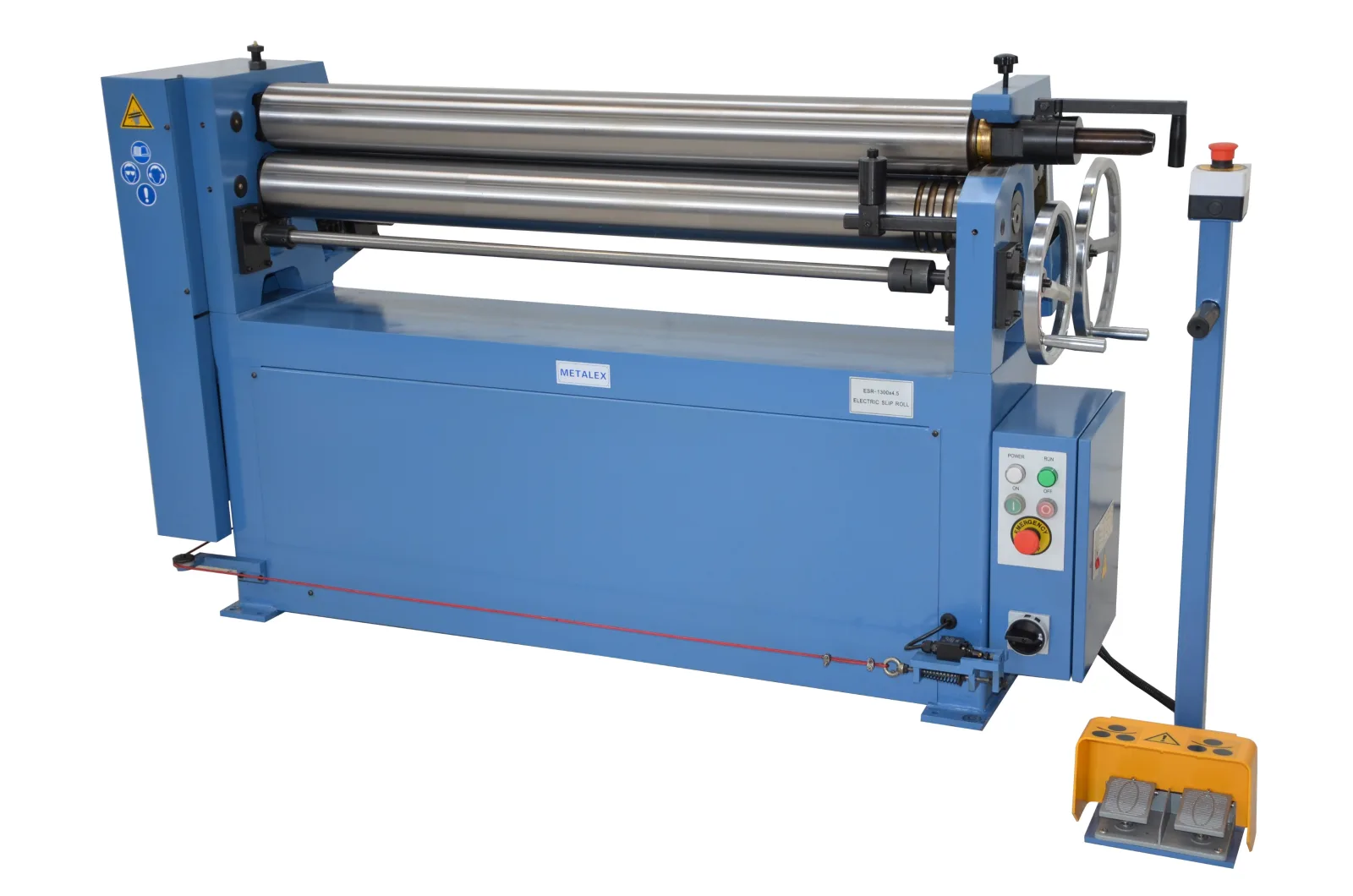

METALEX RM1250x4.5 Motorised Plate Rolls

1300mm x 4.5mm capacity, 415v 2 speed motor

$10,950.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

METALEX RM-1250x4.5
Capacity 1300mm x 4.5mm
Roll diameters 120mm
Minimum rolling diameter 130mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex RM1300 x 4.5mm plate rolls are a robust and reliable solution for precision sheet metal forming. Designed for durability and performance, these machines feature a rolling width of 1300mm and can handle plate thicknesses up to 4.5mm in mild steel. A key advantage is their hardened rolls, which provide increased wear resistance and longer service life ideal for demanding fabrication environments.

Features:

  • 1300mm x 4.5mm Capacity
  • Hardened rolls for extended wear resistance and durability
  • Initial pinch assymetrical style for pre-bending.
  • Mechanically driven.
  • Swing out top roll for easy removal of rolled workpieces

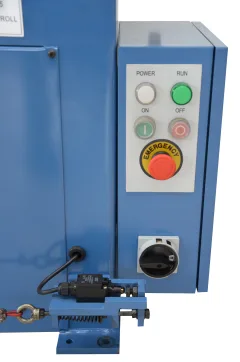

  • Remote forward/reverse switch with "E" stop.

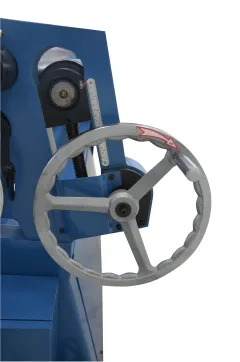

  • Manual backroll adjustment by hand wheel
  • Conical bending feature
  • Safety wire with latching switch.
  • High/low 2 speed main motor

Safety Features:

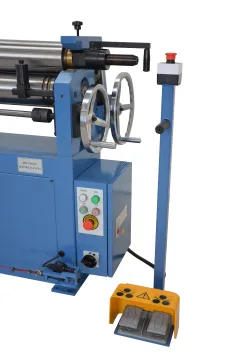

  • "E" stop and foot switch for safe, hands-free operation
  • Safety wire with latching switch

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
METALEX RM-1250x4.5
Capacity 1300mm x 4.5mm
Roll diameters 120mm
Minimum rolling diameter 130mm
Motor power 2.2 kW / 3ph 415V 2 speed
Weight 750kg
Shipping (L x D x H) 2000mm x 760mm x 1270mm (775kg)
