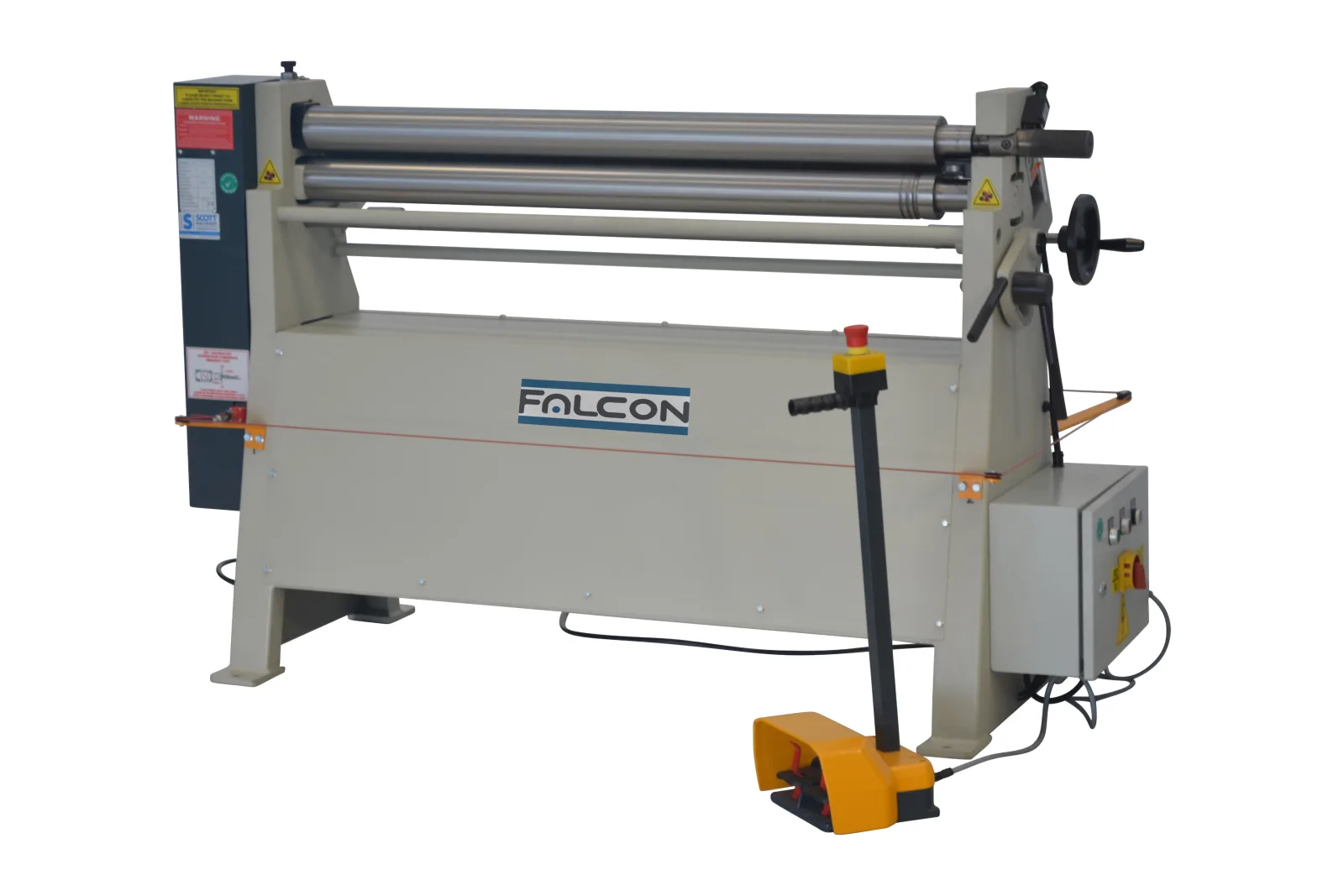

FALCON RM1270x90 Motorised Asymmetrical Rolls
1 / 9
FALCON logo ROLL-0-5125

Sheet Metal & Fabrication · Rolling & forming

FALCON RM1270x90 Motorised Asymmetrical Rolls

Manufactured in Europe 1270 X 2.5mm capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Maximum width 1270mm
Capacity 2.5mm
Diameter of pinch rolls 90mm
Diameter of back roll 90mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

FALCON sheet metal rolls are manufactured in Europe and have been proven over time to be among the best high-quality powered sheet metal rolls, designed for precision and durability in metalworking tasks. These machines are ideal for rolling tubes and cylinders in sheet metal, providing consistent results for light to medium-duty applications.

Features:

  • Manufactured in Europe
  • Cast iron construction
  • 1270 mm working length and a 2.5 mm mild steel capacity
  • Precision ground SAE 150 quality certified steel rolls
  • 415v Braked motor

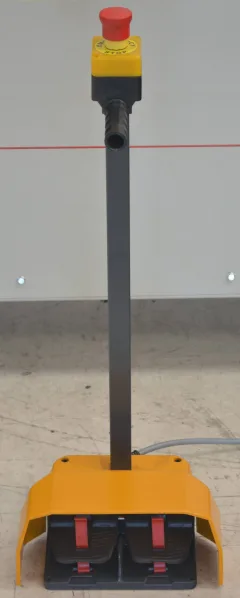

  • Remote control station
  • Two driving rolls
  • Initial pinch style

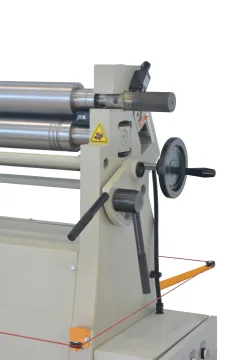

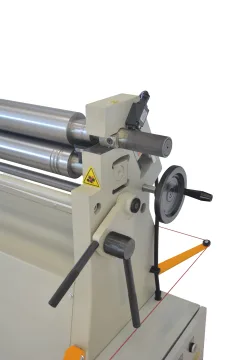

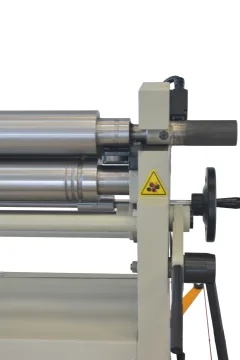

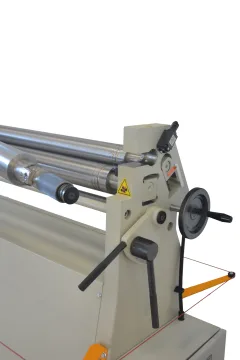

  • Wiring grooves and a quick-action swivel out top roller for ease of use
  • Cast iron end frames ensuring stability and longevity
  • A conical bending device and single-handle adjustment for the bottom rolls

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Maximum width 1270mm
Capacity 2.5mm
Diameter of pinch rolls 90mm
Diameter of back roll 90mm
Motor power 1.1kW Braked motor. 415V 3 phase
Dimensions LxWxH 2300 x 700 x 1250mm
Net machine weight 490kg
Net machine weight 490kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
