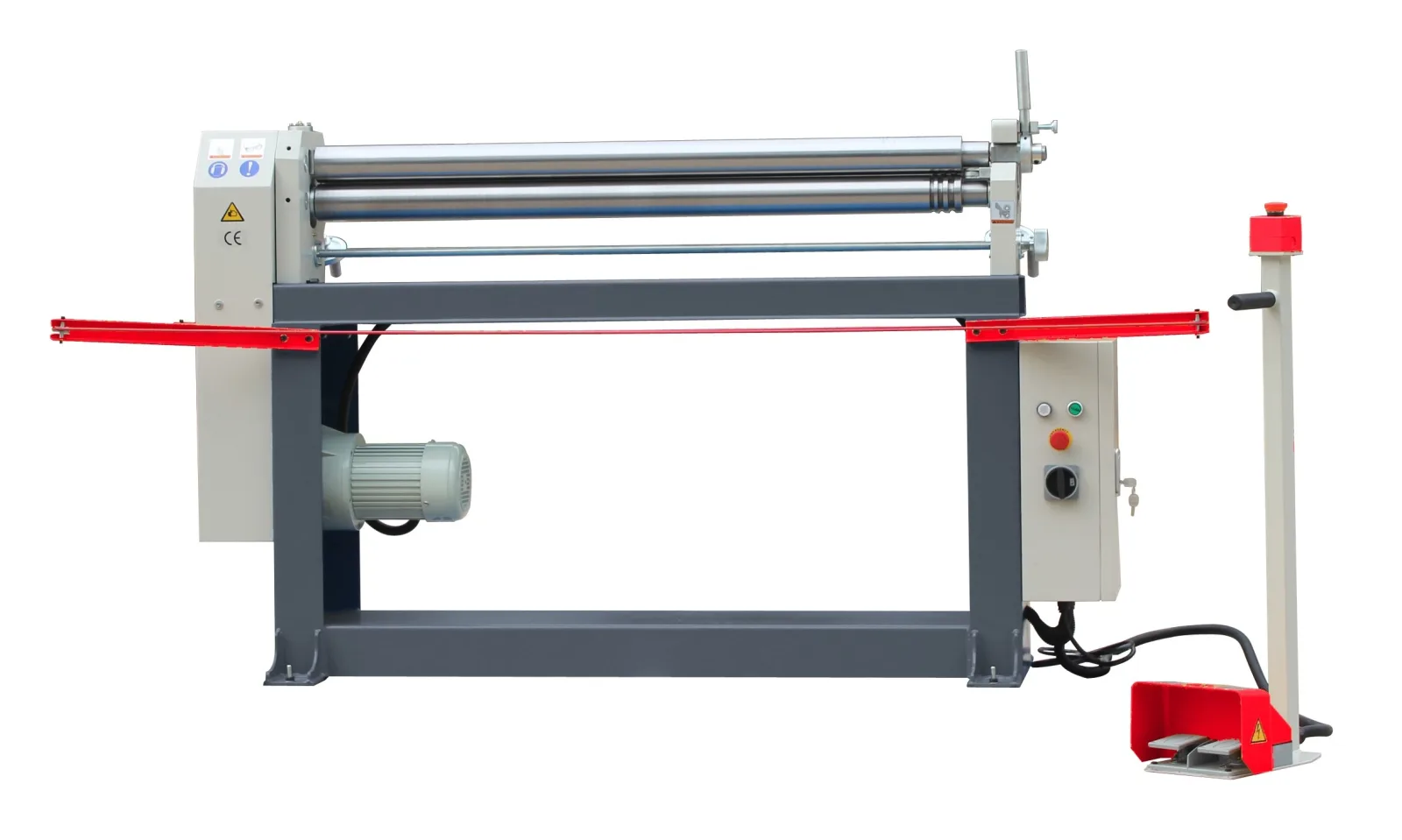

LUXCUT RBM-1300E Motorised Asymmetrical Rolls
1 / 3
LUXCUT logo ROLL-0-0027

Sheet Metal & Fabrication · Rolling & forming

LUXCUT RBM-1300E Motorised Asymmetrical Rolls

1300mm x 1.5mm with motor & foot switch, 1hp 415V

$3,790.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Maximum capacity 1300mm x 1.5mm
Roll diameters 75mm
Minimum work piece diameter 115mm
Rolling speed 3.6m/min
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut RBM-1300E is a robust and efficient motorized electric roll designed for precision sheet metal rolling. With a maximum rolling width of 1300 mm and a capacity of up to 1.5 mm sheet thickness, it is ideal for various industrial applications. The machine features a powerful 1 HP motor, providing consistent performance for continuous operations. Its asymmetrical 3 roller system allows for effective pre bending and rolling of materials. The top roller can be swung out for easy removal of finished workpieces, enhancing operational efficiency. Additionally, the RBM-1300E includes a remote foot switch for forward/reverse operation and an emergency stop function, ensuring user safety and convenience.

Features:

  • Maximum rolling width: 1,300 mm
  • Sheet thickness capacity: up to 1.5 mm
  • Powerful 1 HP motor with gearbox for consistent, continuous operation
  • Initial pinch for pre-bending
  • Asymmetrical 3 roller system for precise pre-bending and rolling
  • Manual back roll positioning
  • Top roller swings out for easy removal of finished workpieces
  • Forward/reverse operation via remote foot switch

Safety Features:

  • Emergency stop on remote stand for safe operation
  • Safety wire with latching switch
  • 415v 1HP motor
  • CE Conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Maximum capacity 1300mm x 1.5mm
Roll diameters 75mm
Minimum work piece diameter 115mm
Rolling speed 3.6m/min
Motor power 750W 415V / 3ph / 50Hz
Packaged weight 420 kg
Packaged dimensions 1700 x 750 x 2000mm (450kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding LUXCUT RBM-1300E
