Baileigh BR16E-36EV Electric Bead Roller

1.2mm mild steel capacity manual bead roller

$9,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model BR-16E-36EV
Capacity 1.6mm Mild steel
Shaft diameter 19mm
Roll diameter 2 1/2 inch
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

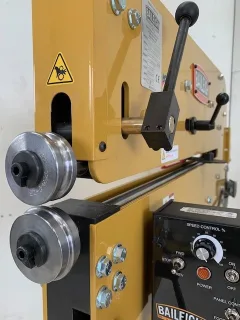

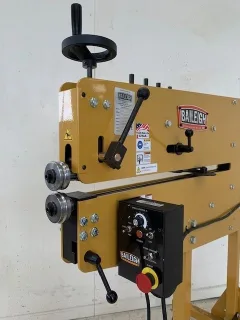

The Baileigh BR-16E-36EV bead roller is a beautifully built variable speed power operated bead roller. The bead depth is adjustable via the top roll. Baileigh offers many sets of tooling for the BR-16E-36EV bead roller and the shaft diameter is 19mm and will fit many commercially available roll sets. Like most Baileigh bead rollers, the BR-16E-36EV comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand on wheels. This bead roll is built to last.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degree bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Made in USA

Features

  • Rigid, fully welded steel frame gives this power bead roller the strength to shape metal accurately and reliably for many years.
  • 16-gauge (1.6mm) mild steel capacity
  • 14-gauge (2mm) aluminium capacity
  • Stand and depth stop included
  • Adjustable length top and bottom shafts
  • 900mm deep throat
  • .5 hp motor
  • Variable-speed pedal lets you control the speed with your foot.
  • Manual adjustable speed on the control panel.
  • Material stop, adjustable on a large slide with a quick-release handle, lets you make perfectly straight beads every time.
  • Adjust the forming depth with the easily accessible handwheel above the working area.
  • Quick-release top die opens and closes while maintaining the same forming depth.
  • You can begin or end a design in the middle of the panel without worrying if the depth is correct.
  • Bottom die can slide in or out to create offsets for a custom profile.

Included

  • Comes standard with popular .25" round bead set and .05" step roll set.

Optional

  • Various tooling options available

VIDEO LINK IS OF SIMILAR MACHINE TO SHOW CAPABILITY

Machine video

See Baileigh BR16E-36EV in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model BR-16E-36EV
Capacity 1.6mm Mild steel
Shaft diameter 19mm
Roll diameter 2 1/2 inch
Throat depth 900mm
Speed Variable speed
Motor Power 1/2 HP
Shipping (L x W x H) 1525mm x 1120mm x 1800mm
Weight 275kg
