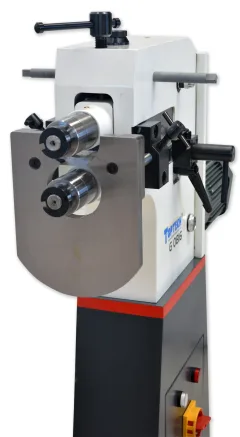

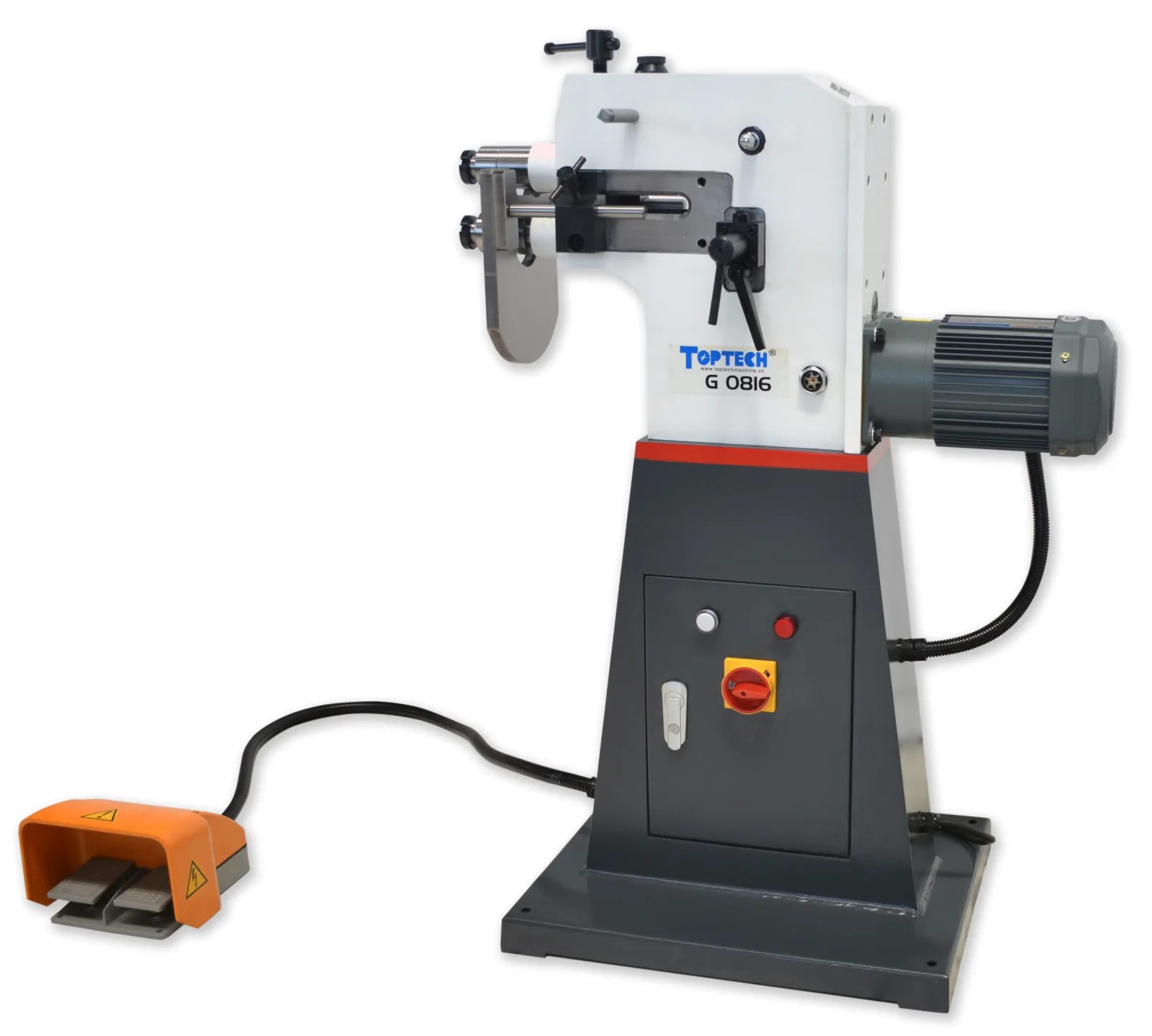

TOPTECH G-0816 Powered Swager Bead Roller
1 / 5
ROLL-0-0011

Sheet Metal & Fabrication · Rolling & forming

TOPTECH G-0816 Powered Swager Bead Roller

Heavy duty 2mm steel or 1.6mm stainless steel

$5,450.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Heavy duty 2mm steel or 1.6mm stainless steel

Heavy duty construction

  • Suitable for 1.6mm steel (.9mm Stainless steel) or 2mm Aluminium
  • 290mm throat
  • 30mm shafts
  • Machine weight 185 kg + pallet etc

Complete with:

  • 1 set of 3/8in Round bead roll set
  • Remote fwd/rev foot switch
  • 3 phase 750w motor

Optional Roll Sets:

  • 1/4" Single bead rolls
  • 5/16" Single bead rolls
  • 1/2" Single bead rolls
  • 1" Single bead rolls
  • V groove
  • Flanging 3/8"
  • Flanging 1/2"
  • Shear mandrel set
  • OGEE set
  • Offset Swage
  • 1/16" Step mandrel set
  • 1/8" Step mandrel set
  • 3/16" Step mandrel set
  • Combi 1/2"crimp & 5/16" bead
  • 2" Wide crimping rolls
  • 3/8" Flat hem Step 1
  • 1/4" Flat hem Step 1
  • Flat hem step 2
  • Flat hem stem 3
