Baileigh BR16E-36EV Electric Bead Roller
Product overview
About this machine.

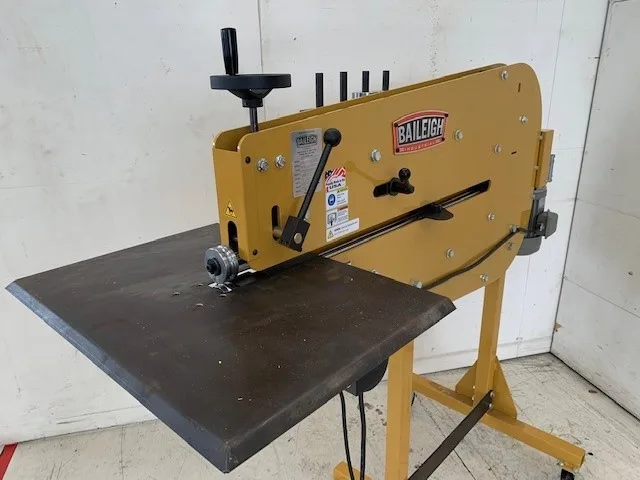

The Baileigh BR-16E-36EV bead roller is a beautifully built variable speed power operated bead roller. The bead depth is adjustable via the top roll. Baileigh offers many sets of tooling for the BR-16E-36EV bead roller and the shaft diameter is 19mm and will fit many commercially available roll sets. Like most Baileigh bead rollers, the BR-16E-36EV comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand on wheels. This bead roll is built to last.
Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degree bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.
Made in USA
Features
- Rigid, fully welded steel frame gives this power bead roller the strength to shape metal accurately and reliably for many years.
- 16-gauge (1.6mm) mild steel capacity
- 14-gauge (2mm) aluminium capacity
- Stand and depth stop included
- Adjustable length top and bottom shafts
- 900mm deep throat
- .5 hp motor
- Variable-speed pedal lets you control the speed with your foot.

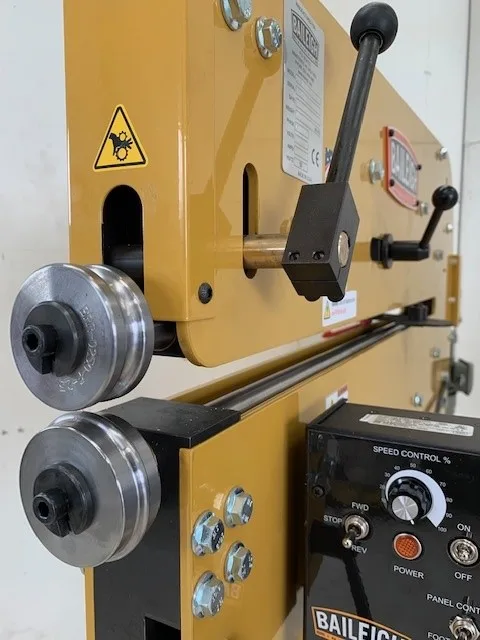

- Manual adjustable speed on the control panel.

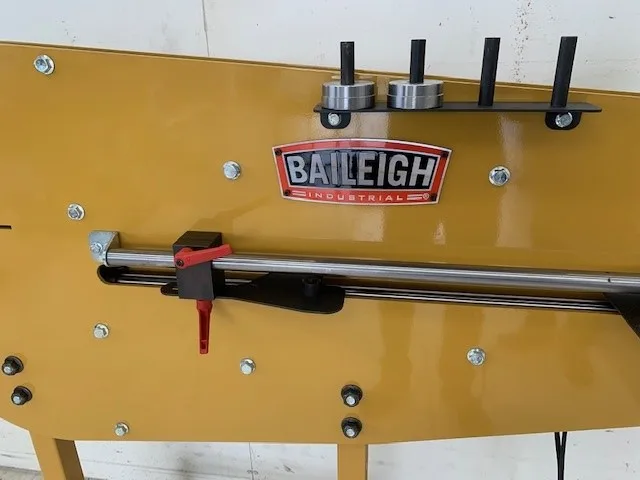

- Material stop, adjustable on a large slide with a quick-release handle, lets you make perfectly straight beads every time.

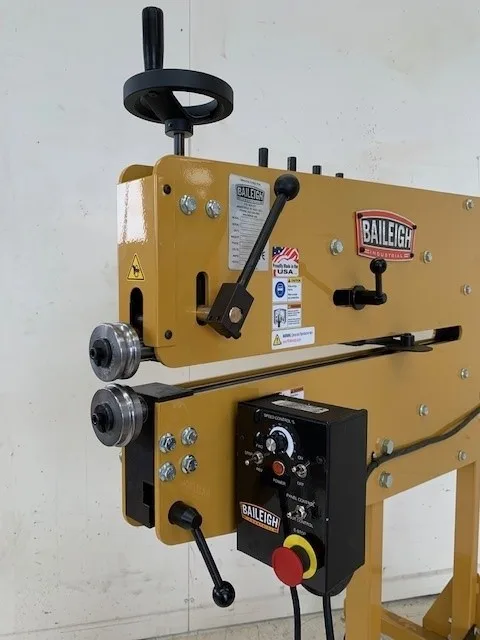

- Adjust the forming depth with the easily accessible handwheel above the working area.
- Quick-release top die opens and closes while maintaining the same forming depth.
- You can begin or end a design in the middle of the panel without worrying if the depth is correct.
- Bottom die can slide in or out to create offsets for a custom profile.
Included
- Comes standard with popular .25" round bead set and .05" step roll set.
Optional
- Various tooling options available
VIDEO LINK IS OF SIMILAR MACHINE TO SHOW CAPABILITY
Published data
