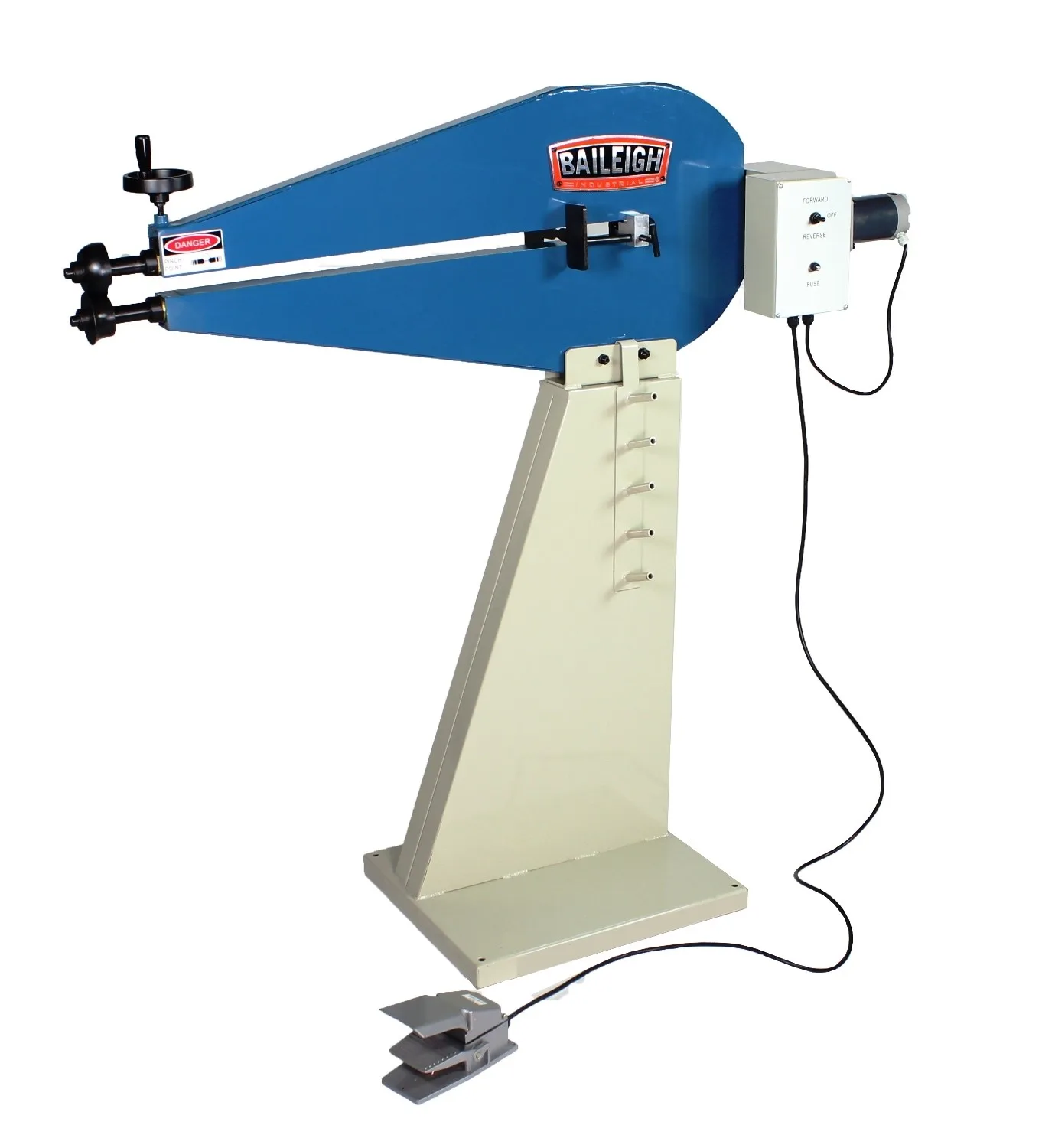

Baileigh BR-18E-36 Powered Bead Roller 230v

240v single phase

$3,290.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model BR-18E-36
Capacity 1.2mm Mild steel
Shaft diameter 19mm
Roll diameter 2 1/2 inch
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

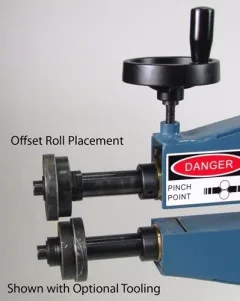

The BR-18E-36 bead roller is the mechanically operated bead roller based off of their popular manual BR-18M-24. This bead roller is made from of a heavy steel framework that is electro welded for further rigidity. The bead depth is adjustable via the top roll. Baileigh offers many sets of tooling for the BR-18M-24 bead roller and the shaft diameter is 19mm and will fit most commercially available roll sets. All moving parts on the BR-18E-36 bead roller have bronze bushings for long life. Like most Baileigh bead rollers, the BR-18E-36 comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Features

  • Fully welded heavy duty rigid frame
  • 18-gauge (1.2mm) mild steel capacity
  • 16-gauge (1.6mm) aluminium capacity
  • Stand and depth stop included
  • Adjustable length top and bottom shafts
  • 610mm deep throat
  • All moving parts are through bronze bearings with grease nipples for longevity.
  • Variable speed foot pedal control
  • Forward and reverse rotation

Included

  • Supplied with one set of 1 1/4" spoiler tooling as shown in image #2

Optional

  • Various tooling options available (see image #5)
  • Work table (see image #6)
  • Tipping roll set

Machine video

See Baileigh BR-18E-36 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model BR-18E-36
Capacity 1.2mm Mild steel
Shaft diameter 19mm
Roll diameter 2 1/2 inch
Throat Depth 915mm
Motor 1/8HP / 240v Single phase
Shipping Dimensions (L x W x H) 1600mm x 600mm x 600mm
Weight 115kg
