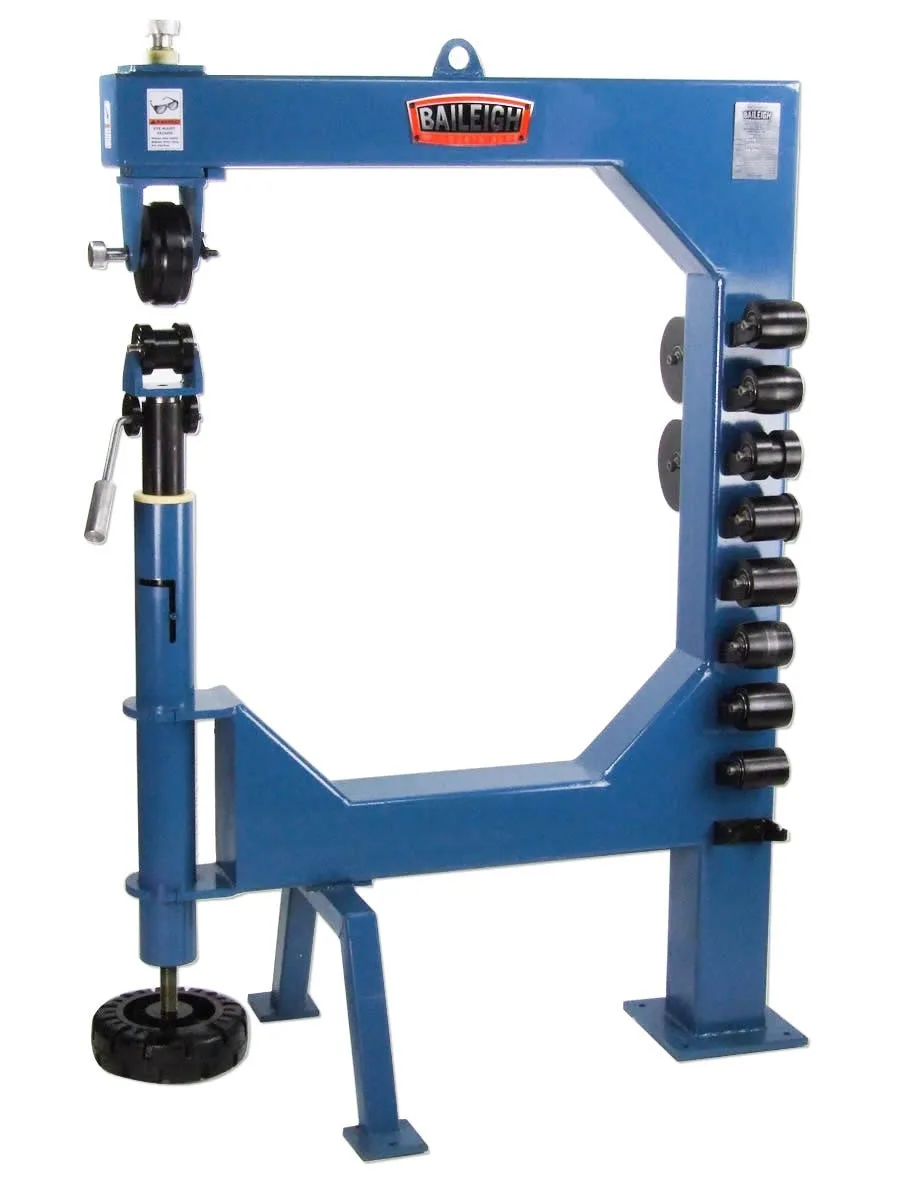

Baileigh EW-40 English Wheel

Wheeling machine 1.6mm x 960mm throat

$4,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model EW-40
Mild Steel 16g/1.6mm
Aluminium 14g/2mm
Throat Depth 960mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Baileigh EW‑40 is a heavy‑duty manual English wheel built for serious sheet‑metal shaping. Its fully a welded 127mm x 127mm x 6.4mm box‑tube frame delivers exceptional rigidity and supports forming up to 16 gauge mild steel ideal for automotive, aviation, motorcycle, and decorative metalwork. The EW-40 is a ridged "English wheel" style sheet metal former with a throat depth of 960mm.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Features:

  • Fully welded construction
  • Generous 960mm throat depth which allows for forming large panels
  • Comprehensive tooling set supplied as standard. Comes complete with 3 upper wheels (6"x2.75")
  • 9 Hardened bottom anvils. 1/8", 1/2",and 3/4 edge radii.6"crown radius. 2"flat rolls. 5/16x1/4" step roll. 1 1/2" and 5/8" round bead rolls
  • Precision sealed bearings, a swivel head for pushing panels at any angle (including perpendicular), a quick‑release cam, and a rubber foot kick tensioner

Machine video

See Baileigh EW-40 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model EW-40
Capacity
Mild Steel 16g/1.6mm
Aluminium 14g/2mm
Throat Depth 960mm
Lower Die Edge Radius 3.175, 12.7, 19.05mm
Lower Crown Radius 152,4 x 57.15mm
Top Wheel Dimensions 178 x 76mm
Step Roll 7.951 x 6.35mm
Bead Roll 19.05, 38.1mm
Dimensions (WxLxH) 1750mm x 920mm x 390mm
Weight 185kg
