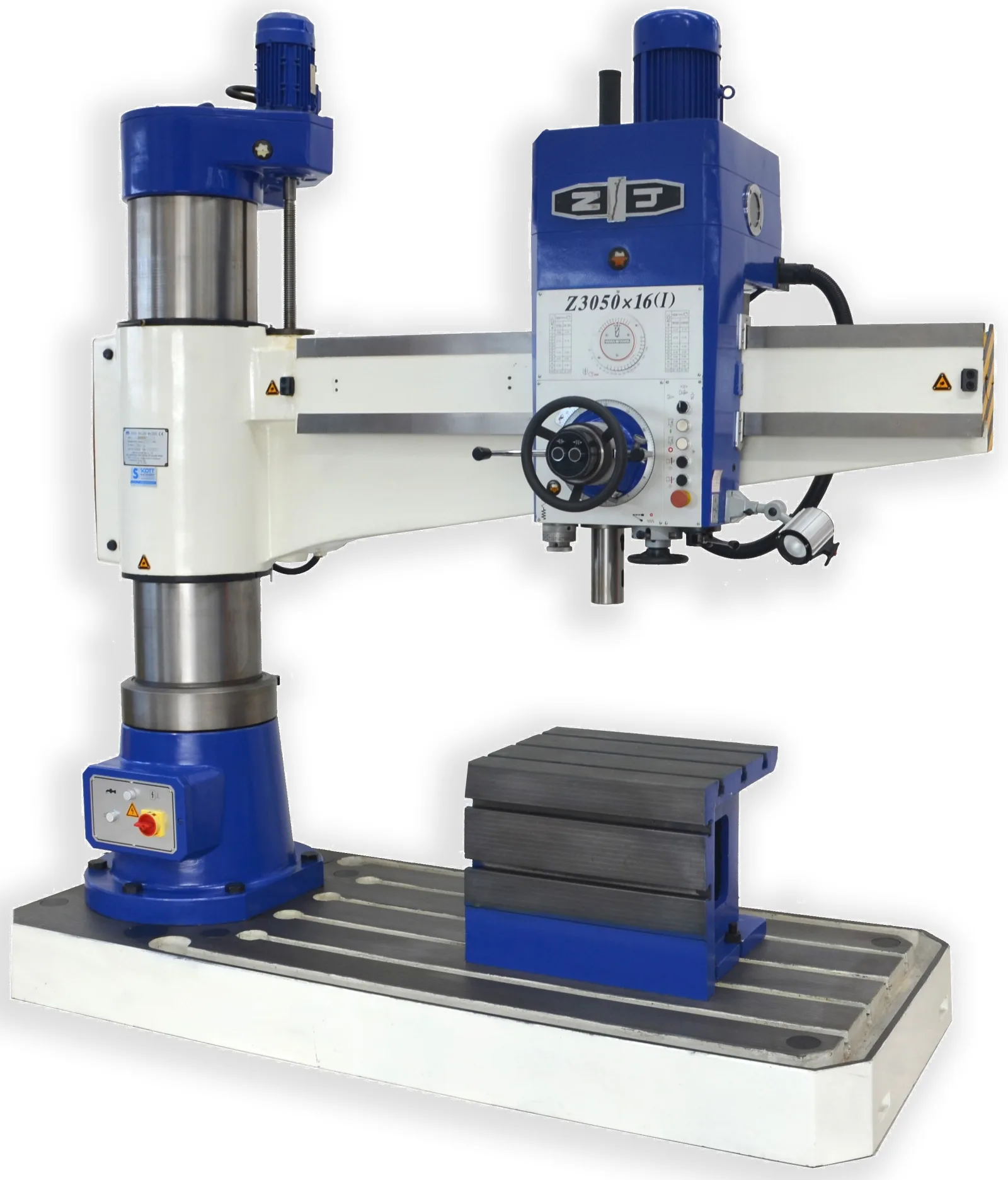

ZJ Heavy Duty Series Radial Drilling Machines

3 axis power clamping Motorised elevation

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

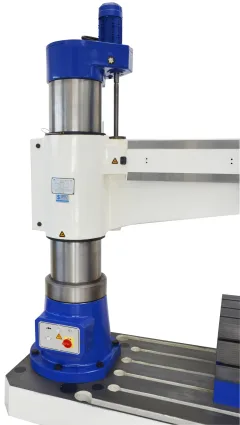

3 axis power clamping Motorised elevation

Heavy duty column & base

  • 3 axis power clamping
  • Motorised elevation

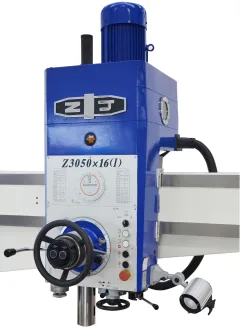

  • Centralised controls
  • Hydraulic pre-select spindle speeds & quill feeds
  • Large quill stroke
  • Large box table
  • Coolant
  • Halogen lamp
  • Large range of models available

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model ZJ-3032 ZJ-3040 ZJ-3050/16 ZJ-3063 ZJ-3080 ZJ-30100 ZJ-30125
Drilling capacity 32mm 40mm 50mm 63mm 80mm 100mm 125mm
Throat 800 / 1000mm 1250 / 1600mm 1600 mm
Spindle taper 4MT 4MT 5MT
Speed range rpm 32 - 2,500 25 - 2,000 25 - 2,000
Number of spindle speeds 16 16 16
Quill travel 280mm 315mm 335mm
Quill power feed mm/rev 0.10 - 1.25 0.10 - 1.25 0.04 - 3.2
Number of feeds 8 8 16
Table / base size 500 x 500mm 500 x 630mm 500 x 615mm
Motor 2.2 kw 3 kw 4 kw
Machine weights 1200 / 1600 kg 3000 / 3500 kg 4300 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
