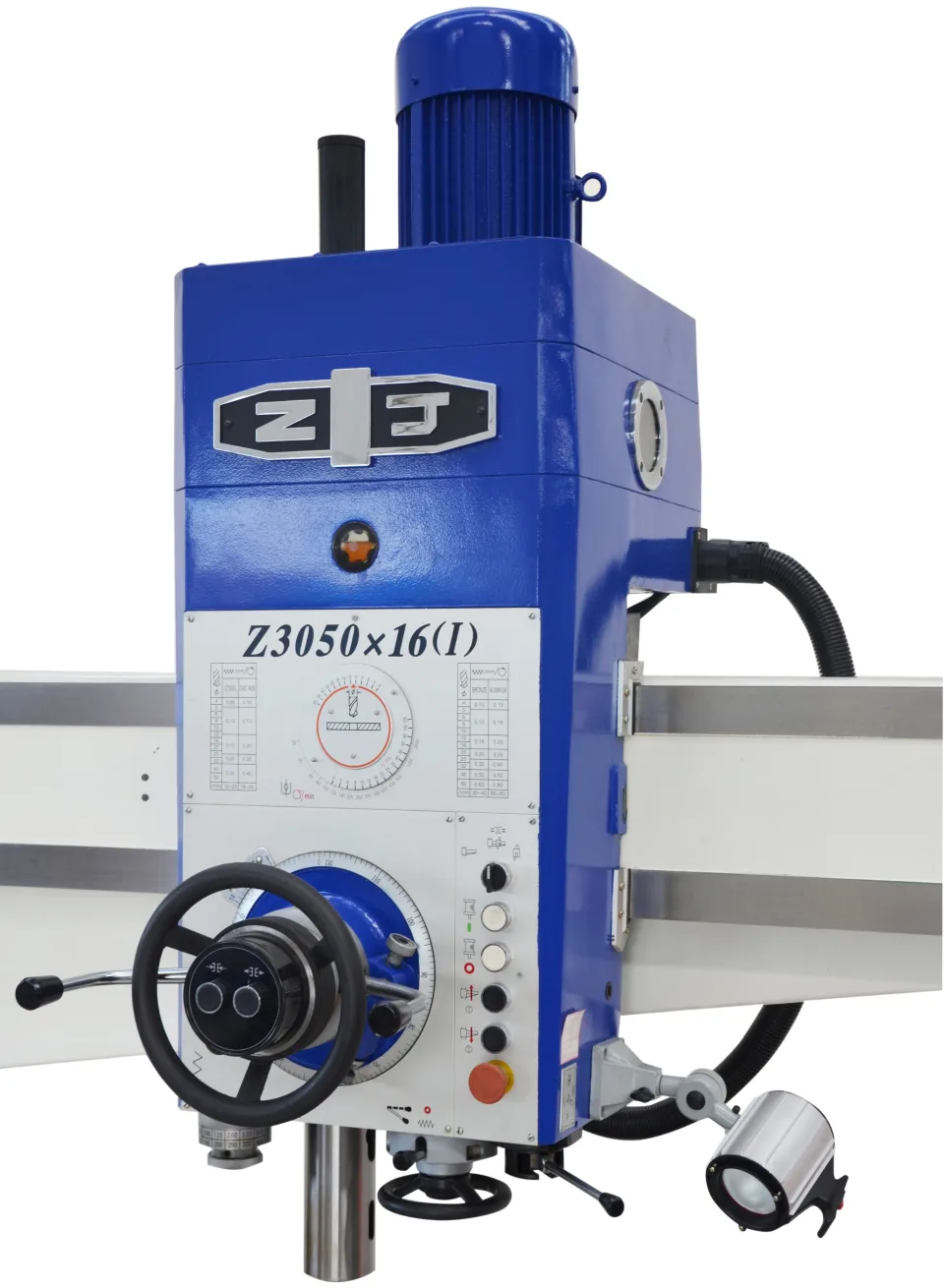

ZJ Heavy Duty Series Radial Drilling Machines
POA
WEB-HD RADIAL DRILLS | Prices exclude GST
Product overview
About this machine.
3 axis power clamping Motorised elevation

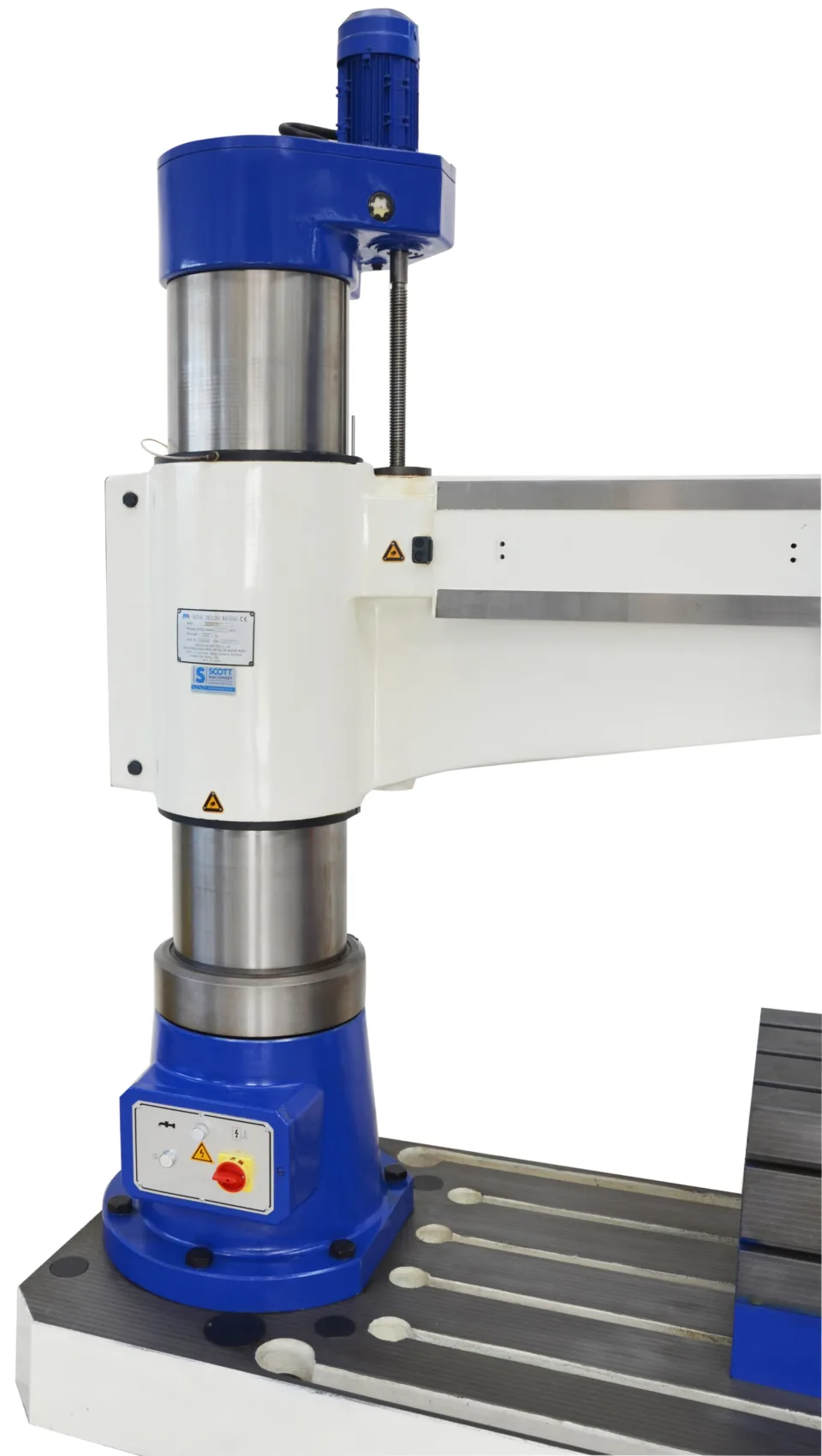

Heavy duty column & base
- 3 axis power clamping
- Motorised elevation

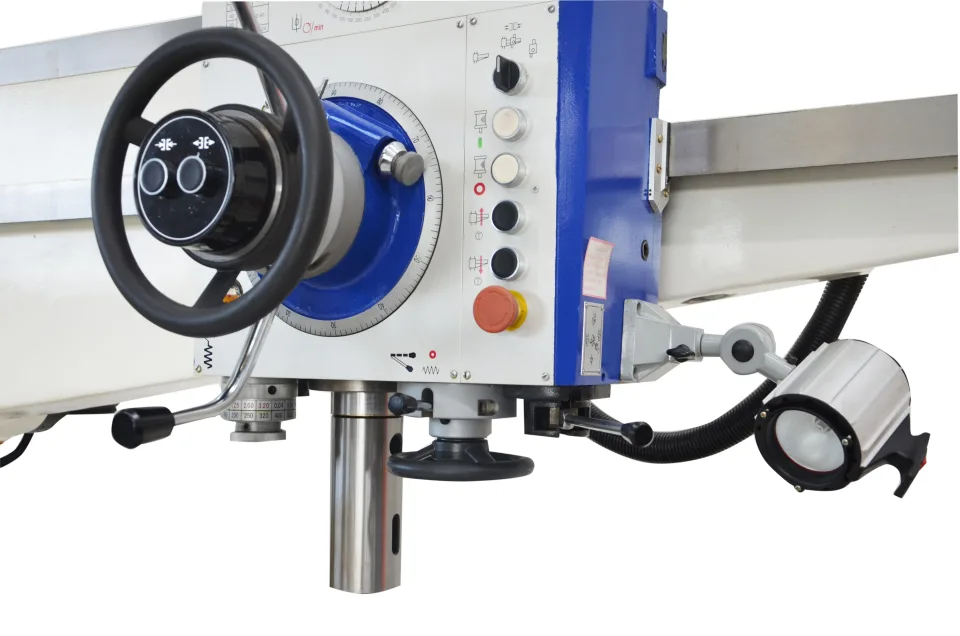

- Centralised controls
- Hydraulic pre-select spindle speeds & quill feeds
- Large quill stroke

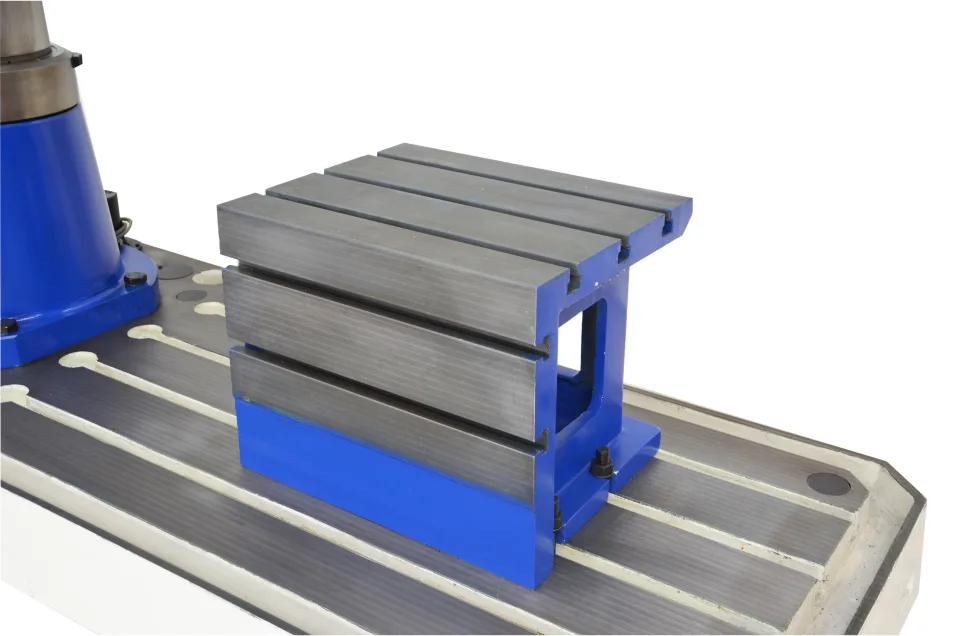

- Large box table
- Coolant
- Halogen lamp
- Large range of models available
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | ZJ-3032 | ZJ-3040 | ZJ-3050/16 | ZJ-3063 | ZJ-3080 | ZJ-30100 | ZJ-30125 |
|---|---|---|---|---|---|---|---|
| Drilling capacity | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm | 125mm |
| Throat | 800 / 1000mm | 1250 / 1600mm | 1600 mm | ||||
| Spindle taper | 4MT | 4MT | 5MT | ||||
| Speed range rpm | 32 - 2,500 | 25 - 2,000 | 25 - 2,000 | ||||
| Number of spindle speeds | 16 | 16 | 16 | ||||
| Quill travel | 280mm | 315mm | 335mm | ||||
| Quill power feed mm/rev | 0.10 - 1.25 | 0.10 - 1.25 | 0.04 - 3.2 | ||||
| Number of feeds | 8 | 8 | 16 | ||||
| Table / base size | 500 x 500mm | 500 x 630mm | 500 x 615mm | ||||
| Motor | 2.2 kw | 3 kw | 4 kw | ||||
| Machine weights | 1200 / 1600 kg | 3000 / 3500 kg | 4300 kg |
