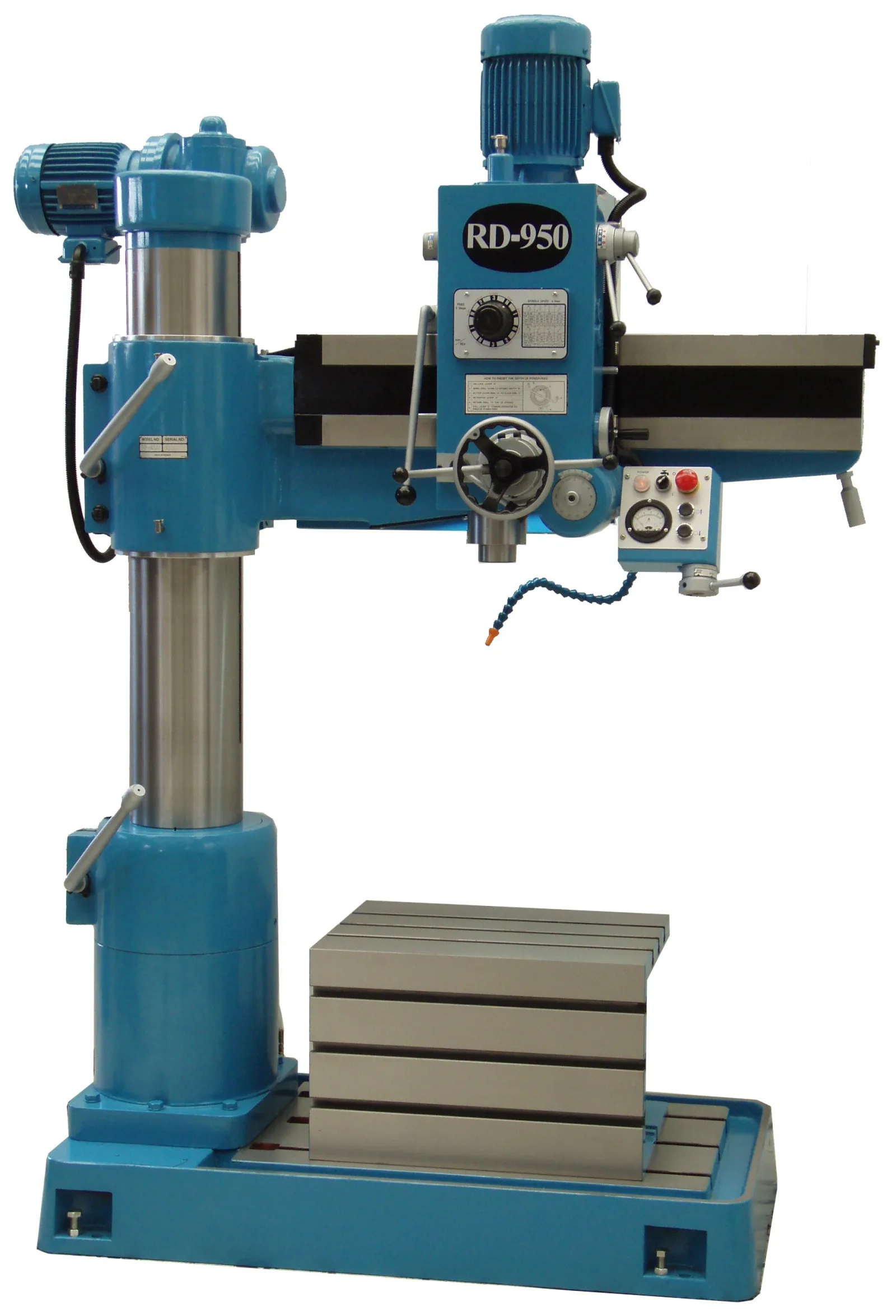

Rong Fu Premium Quality Series Radial Arm Drilling Machines
1 / 4
Rong Fu logo WEB-HD RADIAL DRILLS RF

Workshop Machinery · Drilling machines

Rong Fu Premium Quality Series Radial Arm Drilling Machines

High Quality - Made in Taiwan for 35 years

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

High Quality - Made in Taiwan for 35 years

Made in Taiwan for over 35 years

  • High quality geared head
  • Heavy duty column & base
  • 3 axis clamping
  • Motorised elevation
  • Centralised controls
  • Some models hydraulic pre-select spindle speeds & quill feeds
  • Large quill stroke
  • Large box table
  • Coolant
  • Halogen lamp
  • Other models available

Manual Clamping models:

  • RD-750
  • RD-850
  • RD-950
  • RD-1100

Electric Clamping model

  • RD-1250

Hydraulic clamping models

  • RD-1170
  • RD-1580
  • RD-1600
  • RD-2500

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model RD-750 RD-850 RD-950 RD-1100 RD-1170 RD-1250 RD-1580 RD-1600 RD-2500
Drilling capacity 32mm 32mm 32mm 42mm 42mm 50mm 65mm 50mm 80mm
Spindle taper MT4 MT4 MT4 MT4 MT4 MT5 MT5 MT5 MT6
Spindle centre to column maximum 750mm 850mm 950mm 1100mm 1170mm 1210mm 1580mm 1600mm 2500mm
Spindle to table (max) 1060mm 1210mm 1210mm 1270mm 1370mm 1600mm 1345mm 1600mm 2000mm
Quill travel 220mm 220mm 220mm 230mm 250mm 270mm 370mm 270mm 450mm
Speed range rpm 88-1500 88-1500 88-1500 44-1500 44-1500 56-1450 40-1920 56-1450 16-1250
Number of speeds 6 6 6 12 12 12 12 12 16
Motor power 1.5 kW 1.5 kW 1.5 kW 2.1 kW 2.1 kW 3.7 kW 5.6 kW 3.7 kW 7.5 kW
