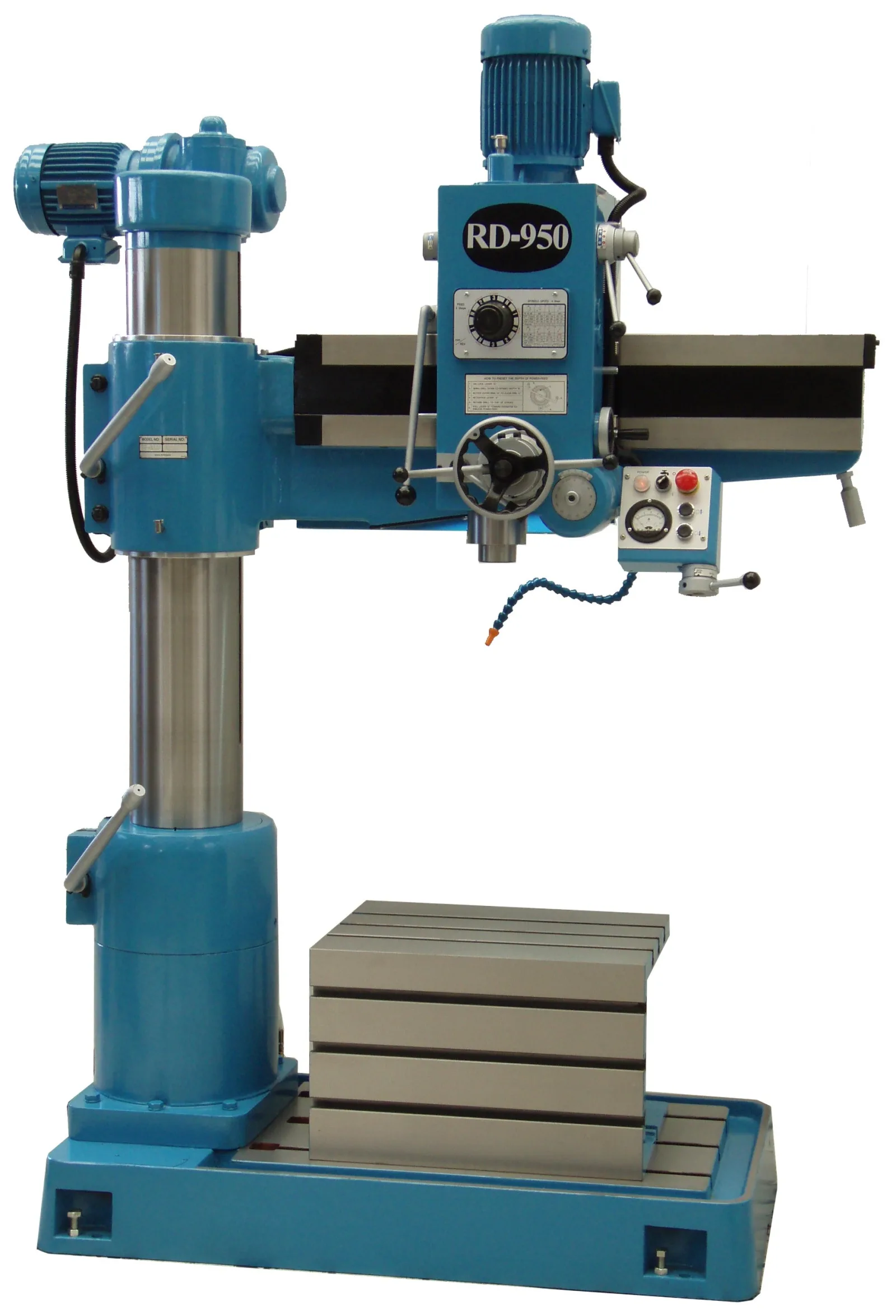

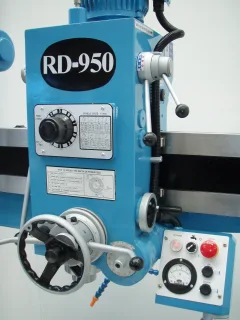

Rong Fu RD-950 Radial Arm Drilling Machine
1 / 4
Rong Fu logo DRAD-0-3042

Workshop Machinery · Drilling machines

Rong Fu RD-950 Radial Arm Drilling Machine

High Quality - Made in Taiwan for 35 years

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Speed range 88 - 1,500 rpm
Drilling capacity 32mm
Tapping capacity M24
Spindle taper 4MT
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

High Quality - Made in Taiwan for 35 years

Quality Taiwanese Manufacturing

  • Three phase motor
  • Geared Head
  • Power feed to quill
  • Motorised arm elevation
  • Mechanical switching between fwd & rev
  • Main spindle has special balancing system
  • Auxiliary dial for spindle depth
  • Arm is hardened and ground
  • Adjustable depth stop
  • Heavy duty rigid table
  • Emergency stop

Standard Accessories:

  • Box table 600 x 445 x 380mm
  • Coolant
  • Work light
  • 16mm Keyed drill chuck & arbor

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Drilling capacity 32mm
Tapping capacity M24
Spindle taper 4MT
Quill travel 220mm
Quill feeds 0.05 / 0.09 / 0.15 mm/rev
Column diameter 210mm
Throat 220 - 950mm
Spindle to base (maximum) 1210mm
Speed range 88 - 1,500 rpm
Number of speeds 6
Motor power 1.5 kW 3 phase
Nett weight 1250 kg
Shipping 3.3 m3 1400 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Rong Fu RD-950
