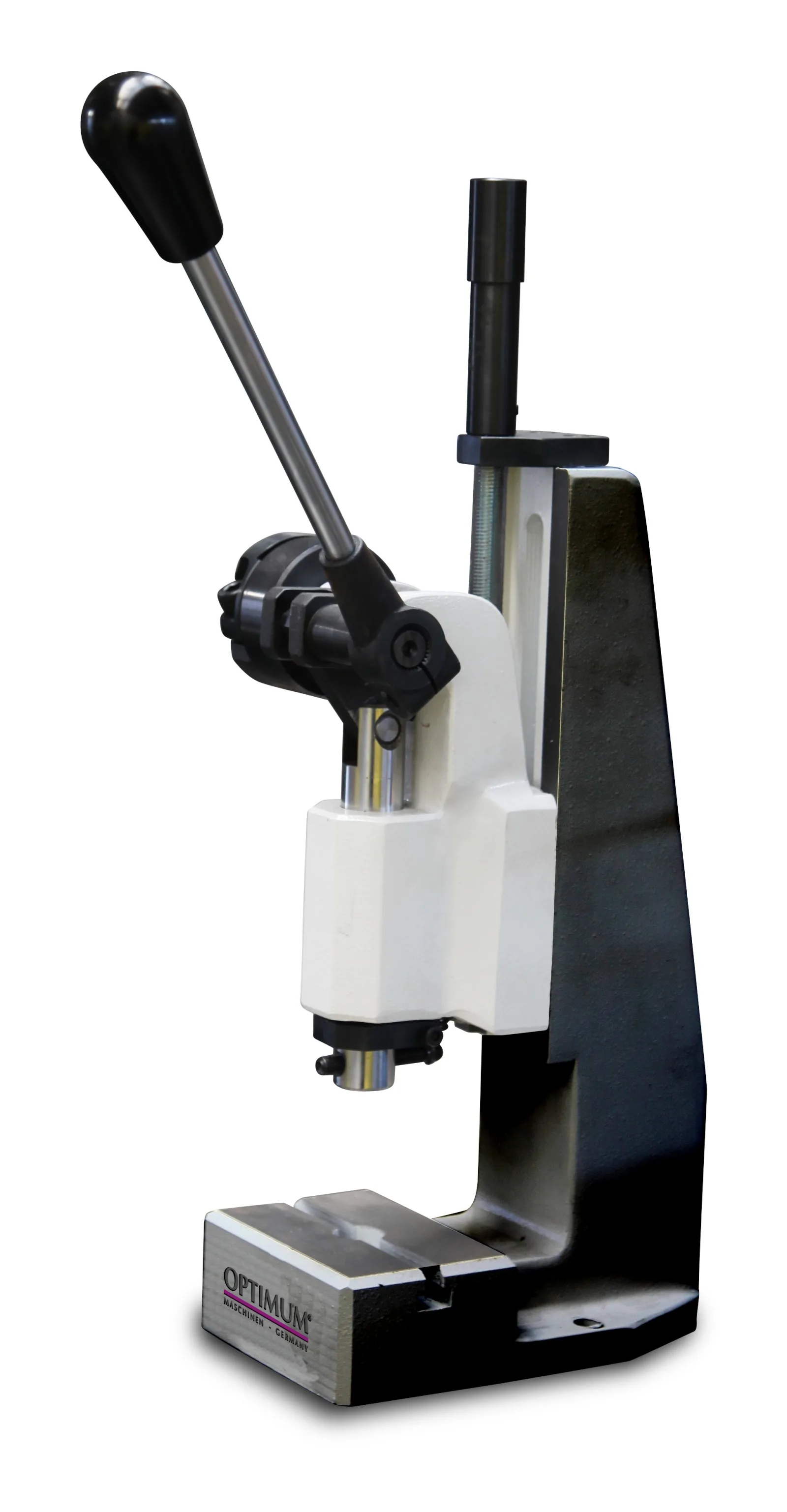

Optimum PD5 Arbor Press 5 kN

5 kN Arbor press

$420.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Nominal Capacity 5kN
Maximum height (base to ram) 180mm
Stroke 40mm
Throat depth 80mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum PD5 is a compact manual arbor press designed for pressing, riveting, punching and other light to medium workshop applications. It features a hardened and ground spindle, long spindle guide and adjustable working height for quick setup. The ground press table provides accurate and repeatable positioning of tooling, while the toggle mechanism delivers high pressing force at the end of the stroke.

Features:

  • Designed to be bolted to your bench for added rigidity during operation 
  • 5 kN maximum pressing force
  • Hardened and ground spindle
  • Long spindle guide for accurate operation
  • 40 mm spindle stroke with latching function
  • Adjustable press head height from 65-180 mm
  • 80 mm throat depth
  • 115 x 80 mm ground work table
  • 16 x 7 mm T-slots for tooling
  • Compact 13 kg design

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Nominal Capacity 5kN
Maximum height (base to ram) 180mm
Stroke 40mm
Throat depth 80mm
Table size 115mm x 80mm
Dimensions D x W x H 120mm x 200mm x 520mm
Weight 13kg
