Optimum PD3 Arbor Press 3 kN

3kN Arbor press

$268.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Nominal Capacity 3kN
Maximum height (base to ram) 170mm
Stroke 120mm
Throat depth 80mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

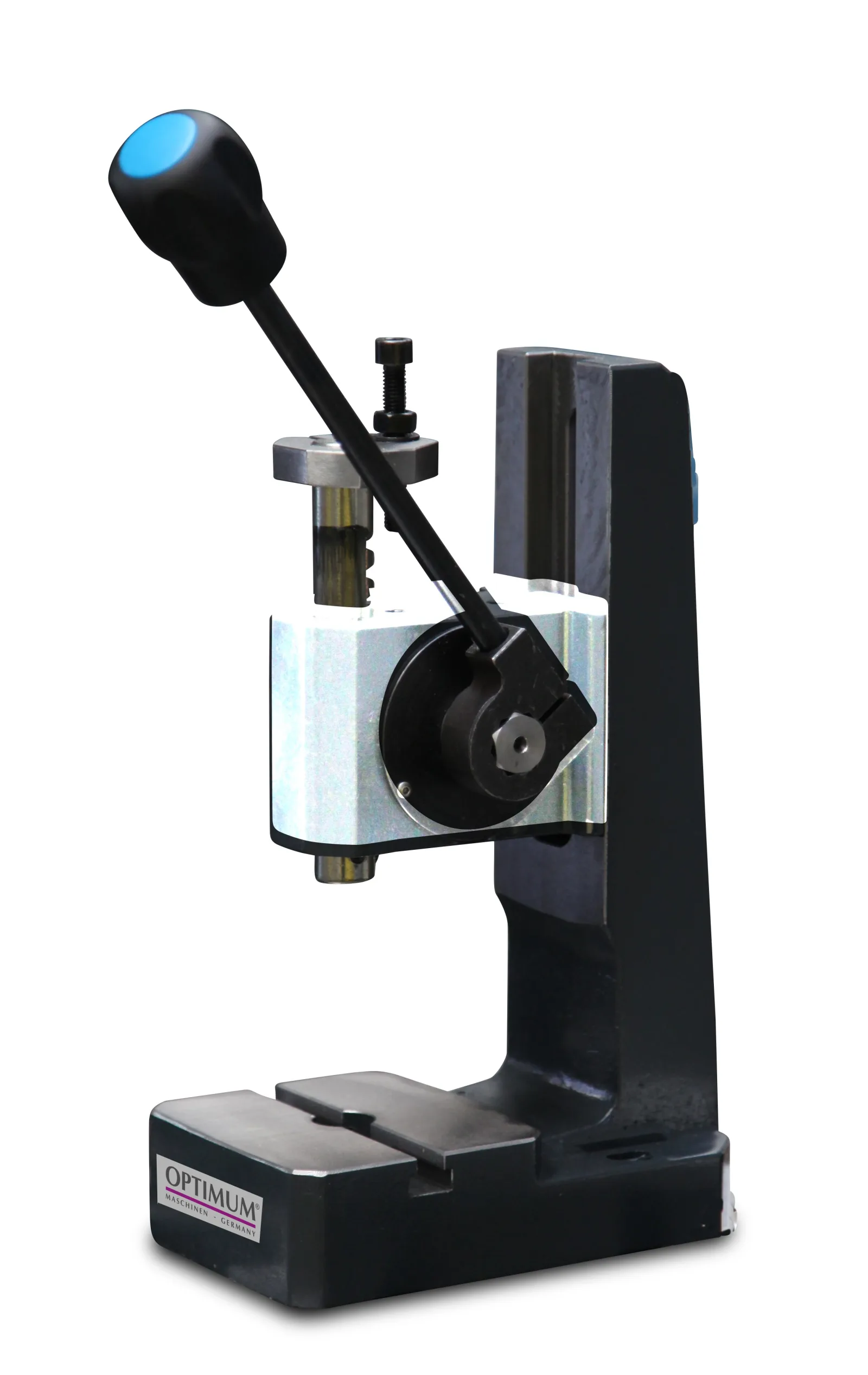

The Optimum PD3 is a compact manual arbor press designed for pressing, riveting, punching and other light workshop applications. It features a hardened and ground spindle, long spindle guide and adjustable working height for quick setup. The ground press table provides accurate and repeatable positioning of tooling, while the toggle mechanism delivers high pressing force at the end of the stroke.

Features:

  • Designed to be bolted to your bench for added rigidity during operation 
  • 3 kN maximum pressing force
  • Hardened and ground spindle
  • Long spindle guide for accurate operation
  • 30 mm spindle stroke
  • Adjustable press head height from 50-170 mm
  • 80 mm throat depth
  • 110 x 100 mm ground work table
  • 16 x 7 mm T-slots for tooling
  • 10 mm spindle diameter
  • Compact 10 kg design

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Nominal Capacity 3kN
Maximum height (base to ram) 170mm
Stroke 120mm
Throat depth 80mm
Table size 110mm x 100mm
Dimensions D x W x H 115mm x 185mm x 450mm
Weight 10kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
