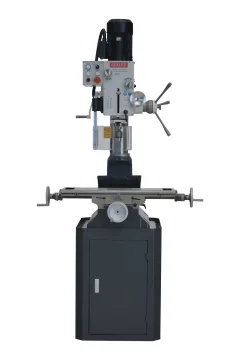

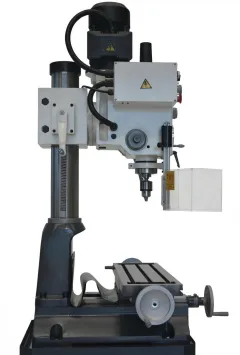

Luxcut DM-40 Geared Head Mill Drill

Round column style 2HP, 3MT, Bench mount, 1 Phase, 6 spindle speeds, 30mm Drilling capacity.

$2,850.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Table size 730 x 210mm (accepts M12 x14 Tee nuts)
Longitudinal table travel 500mm
Cross table travel 230mm
Spindle taper 3MT
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut DM-40 is a robust geared head drill built for precision and durability. With a 130mm quill travel, six speed head (95-1,600rpm), 3MT spindle, and 30mm steel drilling capacity, it handles tough workshop tasks with ease. Features include a tilting/rotating head, fine-feed handwheel, forward/reverse spindle, coolant system, and a 730 x 210mm compound table with T slots. Powered by a single phase 1.5kW motor, the DM40 combines reliable performance with versatile setup, ideal for fabrication, prototyping, or general machine shop work.

Features:

  • Geared head drive with 6 speed range (95-1,600 rpm) for smooth, high-torque performance across various materials
  • Drilling capacity up to 30 mm in mild steel (maximum) and 25 mm continuous
  • 3 MT spindle taper with M12 draw bar
  • Tilting and rotating head for angled drilling and versatile setups
  • Integrated fine-feed handwheel for precise depth control
  • Forward/reverse spindle operation
  • Integrated coolant system for extended tool life
  • 730 x 210 mm compound table with 500 x 230 mm X/Y travel, T-slots for secure fixturing
  • Accepts Tee nut M12 x 14mm on compound table
  • 130 mm quill travel and 115 mm diameter cast iron column for stability
  • Single-phase 230 V, 1.5 kW motor for workshop-friendly operation

Optional accessories :

  • Coolant system
  • Sheetmetal cabinet stand (check last photo)
  • Longitudinal power feed unit
  • Heavy duty cast iron stand
  • Drill Chuck & arbor (as shown)

Safety features:

  • Latching Emergency stop separate from the on / off buttons
  • Drill chuck safety shield with interlocked microswitch
  • CE conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Table size 730 x 210mm (accepts M12 x14 Tee nuts)
Longitudinal table travel 500mm
Cross table travel 230mm
Spindle taper 3MT
Spindle to table max 450mm
Quill diameter 75mm
Quill travel 130mm
Column diameter 115mm
Throat depth 280mm
Spindle speeds 75 - 1600 rpm (6 steps)
Motor power 2 HP 1 phase 230v
Drilling capacity maximum steel 32mm
Drilling capacity continuous 25mm
Machine dimensions (L x W x H) 750 x 1000 x 1120 ( H 2150mm on the stand )
Weight 310 - 340kg approx.
