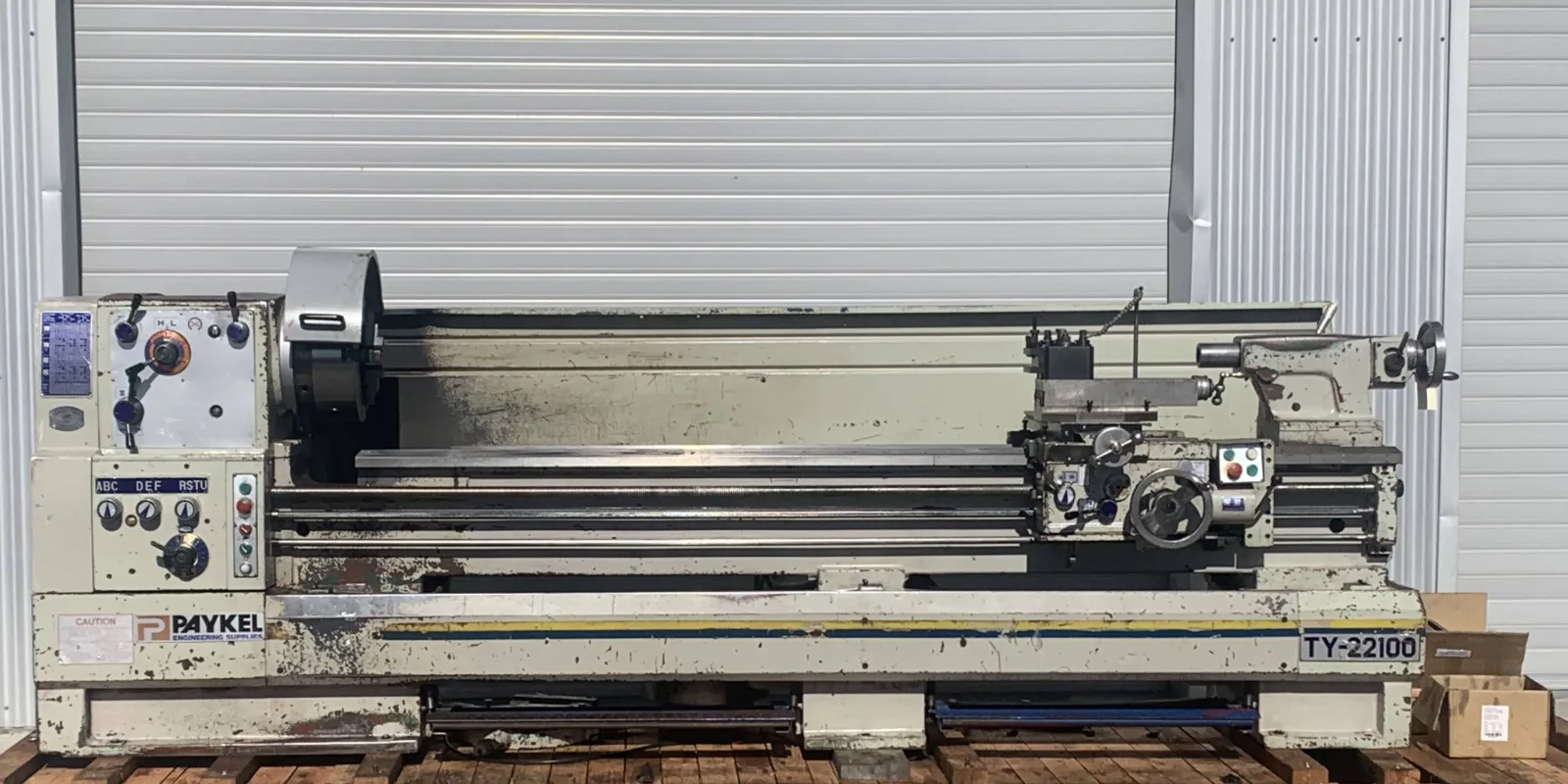

Microweily TY22100 Used Centre Lathe

560mm Swing x 2540mm Between centres. 105mm spindle bore Heavy duty lathe. Quick change tool post.

$19,500.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 560mm
Distance between centres 2,540mm
Spindle bore 105mm
Speed range 15-1,200 rpm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.

This used Microweily TY22100 is a heavy duty precision lathe with our popular 105mm spindle bore, suiting a large number of general heavy turning applications. It has a powerful 15HP electric motor (direct drive) and all the benefits of a heavy-duty solid casting, features typically associated with large machines.

Key features

  • 3 phase
  • Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
  • Bedways and cross slide are induction hardened to HRC 52 and precision ground.
  • The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance.
  • Fully enclosed 12-speed headstock
  • Hardened and precision ground headstock gears.
  • Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
  • Direct drive (not a clutched head)
  • D1-11 Spindle nose with 105mm spindle bore
  • Metric and imperial threading capability via gear driven leadscrew
  • Power feed range. From 0.037mm - 1.04 (50 settings) on the longitudinal axis (X) and from 0.0185mm - 0.52mm/rev (50 settings) on the cross slide (Y)
  • Generous swing with gap bed.
  • Right hand carriage wheel
  • One shot lubrication system
  • Robust, two speed, cast tailstock with 5MT quill

Scott package includes

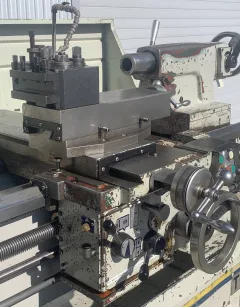

  • Italian Style quick change toolpost (C) c/w 1 x holder accepts 25 x 25mm tooling, 1 x 3MT holder (more holders available ex stock).
  • Brand new 3 Jaw chuck 380mm Universal D1-11
  • 4 Jaw chuck 400mm direct mounting (D1-11)
  • Fixed steady rest (105mm-300mm)
  • Following steady rest (10 - 100mm)
  • Coolant system
  • Chuck guard with microswitch
  • Full length splash guard
  • Foot brake

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Microweily TY22100 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Used Microweily TY-22100
Swing over bed 560mm
Swing over cross slide 360mm
Swing in gap 745mm
Spindle bore 105mm
Distance between centres 2,540mm
Bed width 400mm
Number of speeds 12
Speed range 15-1,200 rpm
Thread range 0.2 - 14mm / 2 - 112 TPI
Tail stock taper 5mt
Motor power 15hp 415V (3 Phase)
Weight (kg) 2,775
Shipping (L x W x H) 4100mm x 1350 x 1400mm (3100kg)
