MICROWEILY TY-1860TS Used Centre Lathe
1 / 11
MICROWEILY logo LCNT-1-1862

MICROWEILY TY-1860TS Used Centre Lathe

458mm swing x 1524mm between centers x 58mm bore, Heidenhan digital readout, Quick change tool-post.

$15,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 458mm
Spindle bore 58mm
Speed range 30 - 2000
Microweily Used TY-1860TS
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.

The Microweily TY-1860TS is a heavy-duty precision lathe designed for workshops that require both size and strength without sacrificing accuracy. With a robust cast-iron construction, large 18" swing, and 60" distance between centres, it offers generous capacity for a wide range of turning applications. A powerful spindle bore and high-torque motor provide the strength needed for demanding work, while still retaining the smooth, precise operation Microweily lathes are known for.

Key features

  • 3 phase
  • Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
  • Bedways and cross slide are induction hardened to HRC 52 and precision ground.
  • The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.
  • Fully enclosed 12-speed headstock
  • Hardened and precision ground headstock gears.
  • Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
  • D1-6 Camlock type spindle
  • 58mm spindle bore
  • Metric and imperial threading capability via gear driven leadscrew
  • Power feed range. From 0.037mm - 1.04mm (50 settings) on both the longitudinal axis (X) and cross slide (Y)
  • Generous swing with gap bed.
  • Right hand carriage wheel
  • One shot lubrication system
  • Robust cast tailstock with 4MT quill

Scott package includes

  • Heidenhan 2 axis digital readout system
  • Italian Style quick change toolpost (B) c/w 3 holders accepts 25 x 25mm tooling.
  • 3 Jaw chuck 250mm direct mounting
  • 4 Jaw chuck 320mm direct mounting

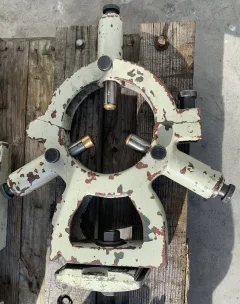

  • Fixed steady rest

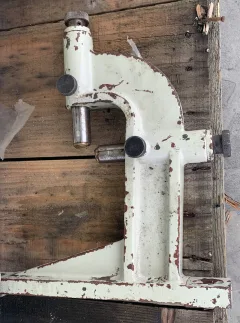

  • Following steady rest
  • Coolant system
  • Halogen lamp
  • Full length splash guard
  • Thread dial indicator

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See MICROWEILY TY-1860TS in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily Used TY-1860TS
Swing over bed 458mm
Swing over cross slide 288mm
Swing in gap 640mm
Spindle bore 58mm
Distance between centers 1524mm
Bed width 300mm
Number of spindle speeds 12
Speed range 30 - 2000
Thread range 0.2 - 14mm / 2 - 112 TPI
Tail stock taper 4 MT
Motor power 5.5kW (7.5hp) 3 phase
Weight (kg) 2150kg (approximately)
Floor space (l x w x h) 2950 x 1077 x 1245mm
Shipping 2400kg / 4.8m3
