Microweily TY22100 Used Centre Lathe
c/w 105mm Bore & QCT
Product overview
About this machine.
The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.

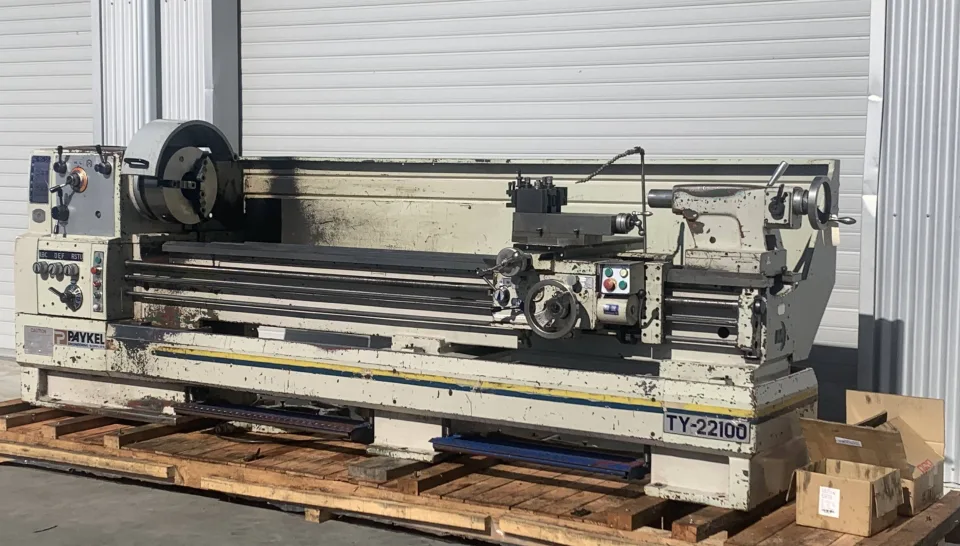

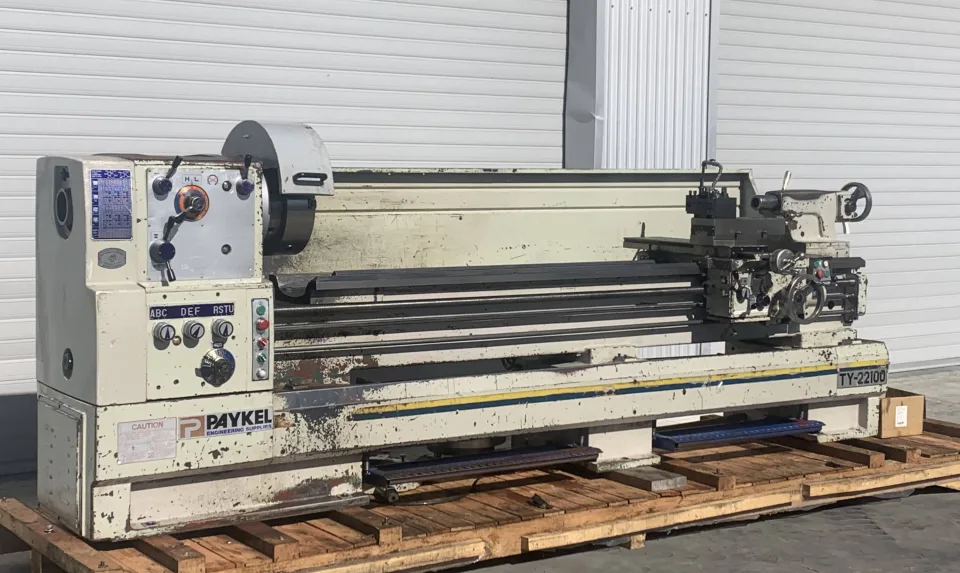

This used Microweily TY22100 is a heavy duty precision lathe with our popular 105mm spindle bore, suiting a large number of general heavy turning applications. It has a powerful 15HP electric motor (direct drive) and all the benefits of a heavy-duty solid casting, features typically associated with large machines.
Key features
- 3 phase
- Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
- Bedways and cross slide are induction hardened to HRC 52 and precision ground.
- The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance.

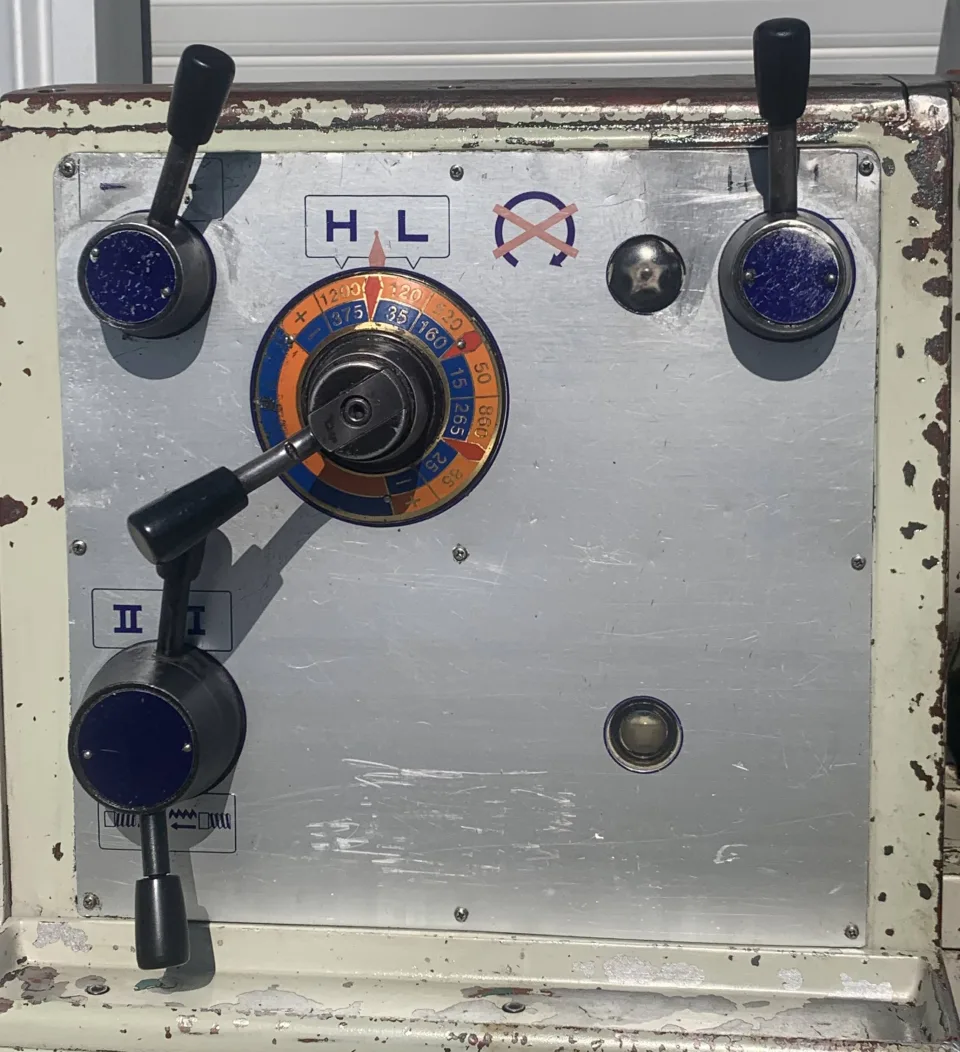

- Fully enclosed 12-speed headstock
- Hardened and precision ground headstock gears.
- Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
- Direct drive (not a clutched head)
- D1-11 Spindle nose with 105mm spindle bore
- Metric and imperial threading capability via gear driven leadscrew
- Power feed range. From 0.037mm - 1.04 (50 settings) on the longitudinal axis (X) and from 0.0185mm - 0.52mm/rev (50 settings) on the cross slide (Y)
- Generous swing with gap bed.
- Right hand carriage wheel
- One shot lubrication system
- Robust, two speed, cast tailstock with 5MT quill
Scott package includes

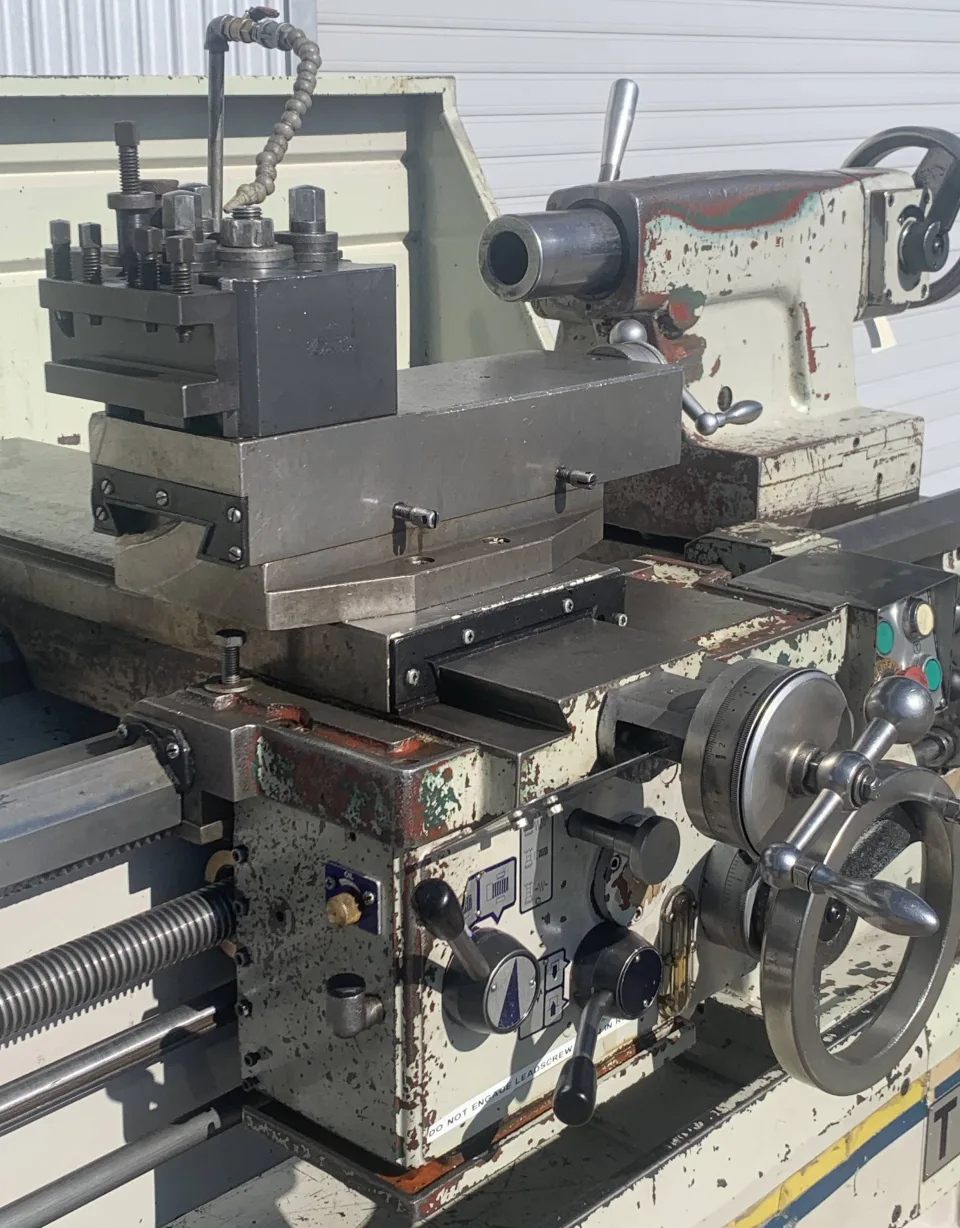

- Italian Style quick change toolpost (C) c/w 1 x holder accepts 25 x 25mm tooling, 1 x 3MT holder (more holders available ex stock).
- Brand new 3 Jaw chuck 380mm Universal D1-11
- 4 Jaw chuck 400mm direct mounting (D1-11)
- Fixed steady rest (105mm-300mm)
- Following steady rest (10 - 100mm)
- Coolant system
- Chuck guard with microswitch
- Full length splash guard
- Foot brake
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
