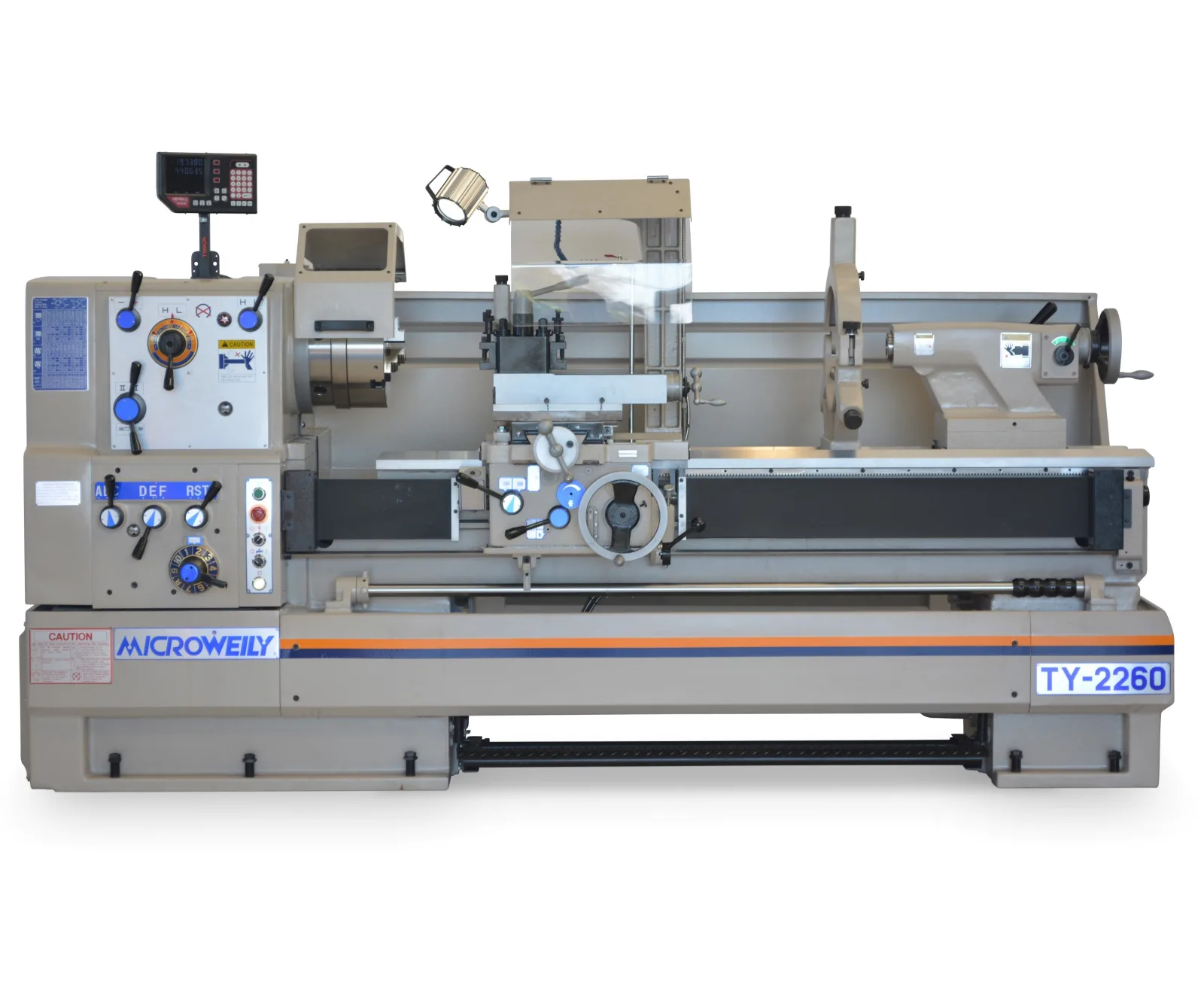

Microweily TY-2260-CE Precision Centre Lathe

Name: Microweily TY-2260-CE Precision Centre Lathe
Brand: Microweily
SKU: LCNT-0-1273

22 inch swing gap bed series, High Quality Lathe.

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 560mm

Distance between centres 1530mm

Spindle bore 105mm (D1-11)

Speed range 15-1,200 rpm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.

The TY-2260 has the shortest bed (whilst still having a large swing) of our most popular 105mm spindle bore sellers, suiting a large number of general turning applications. It has a powerful 10HP electric motor and all the benefits of a heavy-duty solid casting, features typically associated with larger machines. This means you get a reasonably agile machine with precision feel that is hard to achieve on heavier lathes, along with quality operation and an excellent finish.

Key features

Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
Bedways and cross slide are induction hardened to HRC 52 and precision ground.
The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.

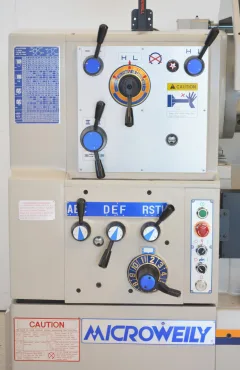

Fully enclosed 12-speed headstock
Hardened and precision ground headstock gears.
Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
Direct drive (not a clutched headstock)
D1-11 Spindle nose with 105mm spindle bore
Metric and imperial threading capability via gear driven leadscrew
Power feed range. From 0.037mm - 1.04 (50 settings) on the longitudinal axis (X) and from 0.0185mm - 0.52mm/rev (50 settings) on the cross slide (Y)
Generous swing with gap bed.
Right hand carriage wheel
One shot lubrication system
Robust, two speed, cast tailstock with 5MT quill
Manufactured to ISO 9002 standards
CE Conformity

Scott package includes

Newall NMS300 2 axis digital readout system
Italian Style quick change toolpost (C) c/w 4 holders accepts 25 x 25mm tooling.
3 Jaw chuck 310mm "Strong brand" Taiwan
4 Jaw chuck 400mm direct mounting (D1-11)
Fixed steady rest (101mm-250mm)
Following steady rest
Coolant system
LED lamp
Longitudinal positional stops
Chuck guard with microswitch
Toolpost protector
Leadscrew protection (Curtain style)
Full length splash guard
Thread dial indicator
