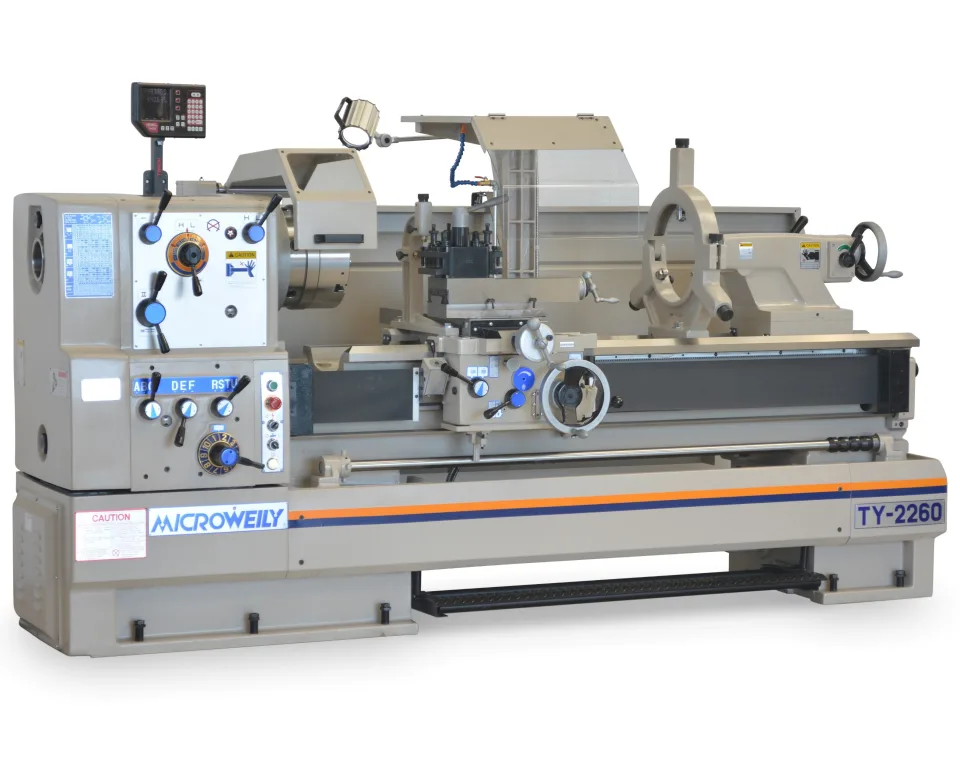

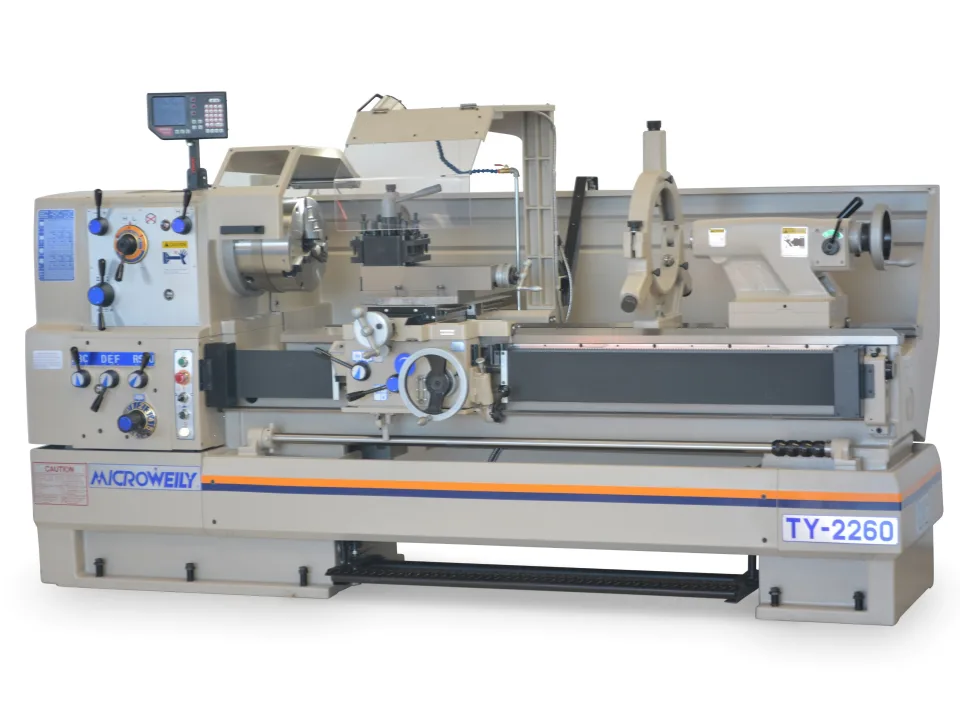

Microweily TY-2260-CE Precision Centre Lathe
Product overview
About this machine.
The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.
The TY-2260 has the shortest bed (whilst still having a large swing) of our most popular 105mm spindle bore sellers, suiting a large number of general turning applications. It has a powerful 10HP electric motor and all the benefits of a heavy-duty solid casting, features typically associated with larger machines. This means you get a reasonably agile machine with precision feel that is hard to achieve on heavier lathes, along with quality operation and an excellent finish.
Key features
- Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
- Bedways and cross slide are induction hardened to HRC 52 and precision ground.
- The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.

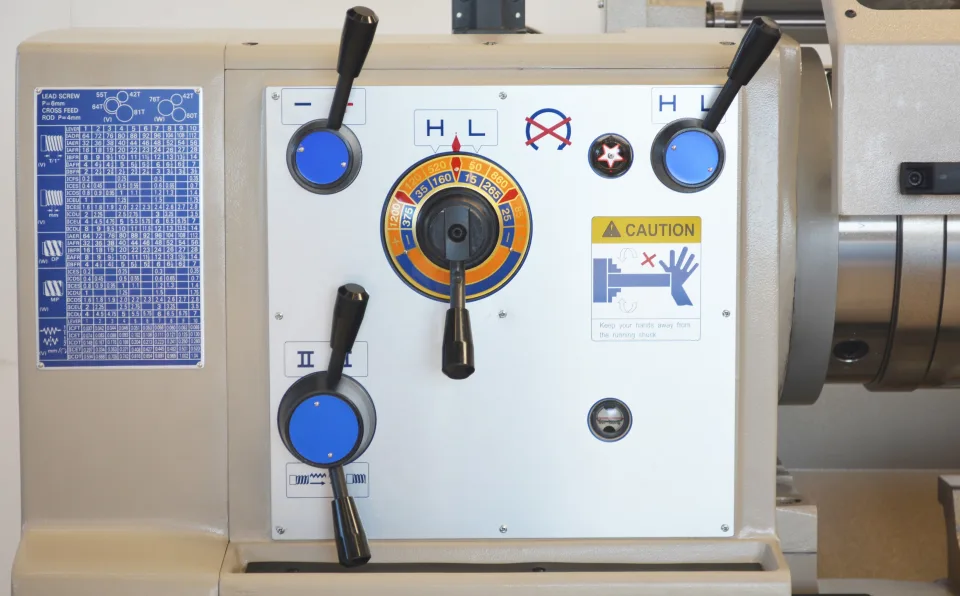

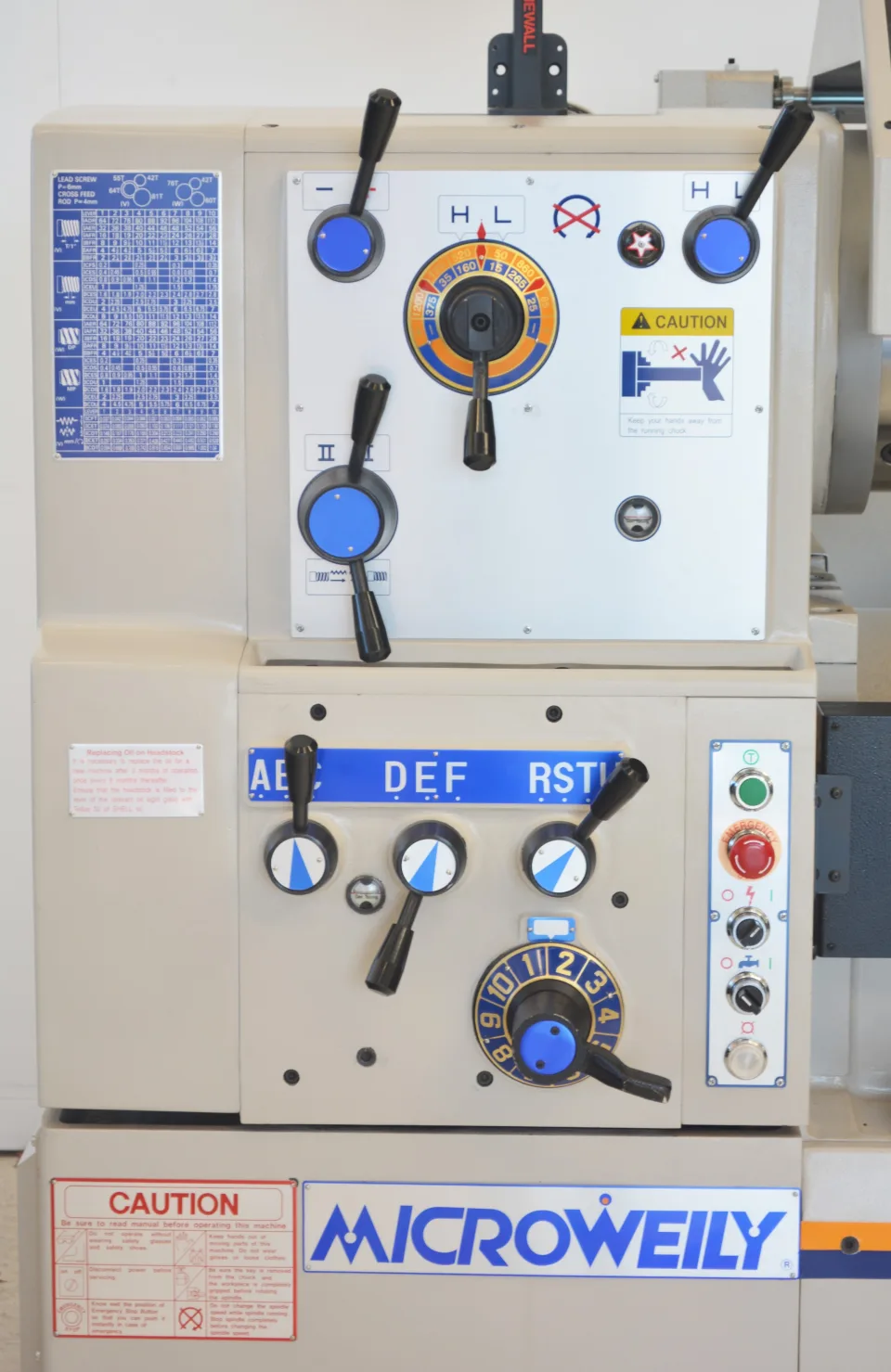

- Fully enclosed 12-speed headstock
- Hardened and precision ground headstock gears.
- Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
- Direct drive (not a clutched headstock)
- D1-11 Spindle nose with 105mm spindle bore
- Metric and imperial threading capability via gear driven leadscrew
- Power feed range. From 0.037mm - 1.04 (50 settings) on the longitudinal axis (X) and from 0.0185mm - 0.52mm/rev (50 settings) on the cross slide (Y)
- Generous swing with gap bed.
- Right hand carriage wheel
- One shot lubrication system
- Robust, two speed, cast tailstock with 5MT quill
- Manufactured to ISO 9002 standards
- CE Conformity
Scott package includes
- Newall NMS300 2 axis digital readout system
- Italian Style quick change toolpost (C) c/w 4 holders accepts 25 x 25mm tooling.
- 3 Jaw chuck 310mm "Strong brand" Taiwan
- 4 Jaw chuck 400mm direct mounting (D1-11)
- Fixed steady rest (101mm-250mm)
- Following steady rest
- Coolant system
- LED lamp
- Longitudinal positional stops
- Chuck guard with microswitch
- Toolpost protector
- Leadscrew protection (Curtain style)
- Full length splash guard
- Thread dial indicator
Optional
- 15HP Motor upgrade
- Taper turning attachment
- Faceplate
- Chuck upgrades available
- Anti-vibration leveling feet
Safety features:
- Latching emergency stop button
- Chuck guard complete with microswitch
- Fixed guarding
- Curtain-type lead screw protection to prevent damage from debris
- Tool post protection for operator safety and tooling longevity
- Main isolation switch
- Mechanical foot brake
