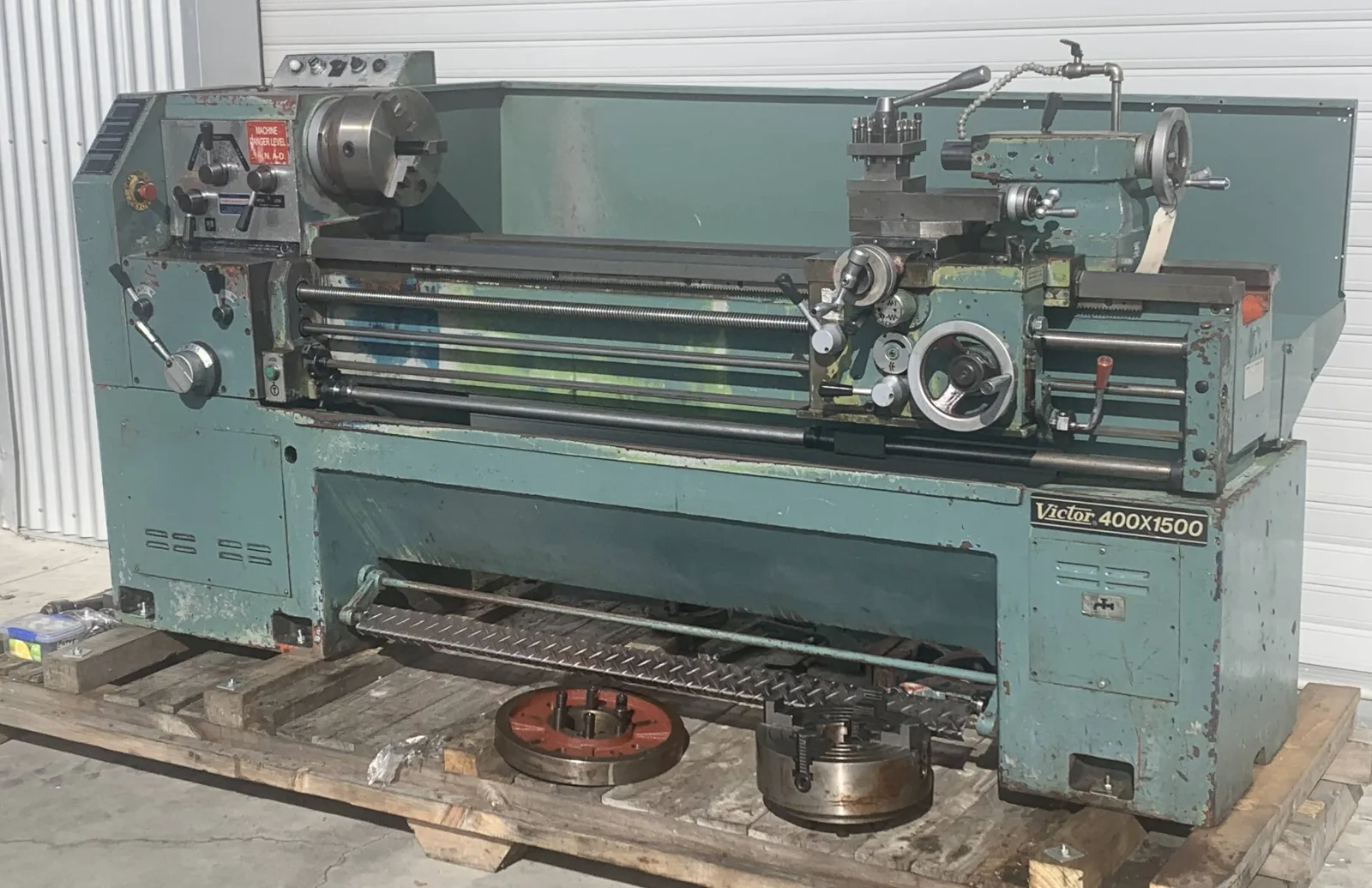

Victor (Taiwan) 400 x 1500 Used Centre Lathe
1 / 9
LCNT-1-4549

Victor (Taiwan) 400 x 1500 Used Centre Lathe

400 x 1500mm x 52mm bore 7.5HP

$9,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 400mm
Distance between centres 1500mm
Spindle bore 52mm
Speed range 30 - 1,800 rpm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Victor 400 x 1500 mm is a robust, mid-sized Taiwanese engineered centre lathe prized for its well rounded performance and reliability in general purpose workshops for a wide spectrum of turning tasks. Sitting on its one piece solid cast base & having a 52 mm spindle bore allows for working with substantial bar stock, while its 1,500 mm distance between centres provides flexibility for turning both compact and longer parts.

This used machine runs well with nothing notable to report.

Features:

  • 3 phase
  • Gap bed
  • One piece solid cast base
  • 52mm spindle bore
  • 4 way toolpost
  • 16 spindle speeds via two speed motor
  • D1-6 camlock spindle
  • Right hand carriage wheel
  • Full length rear splash guard
  • Longitudinal stops
  • Coolant system
  • Foot brake

Accessories:

  • 3 jaw chuck 250mm
  • 4 jaw chuck 300mm
  • Faceplate 360mm
  • Drive plate
  • 13mm & 16mm Jacobs keyed drill chucks
  • Fixed & following steady rests

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Victor (Taiwan) 400 x 1500 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Victor Lathe Model 400 x 1500
Swing over bed 400mm
Swing over carriage 250mm
Swing in gap 585mm
Spindle bore 52mm
Distance between centres 1500mm
Bed width 300mm
Number of spindle speeds 16
Speed range 30 - 1,800 rpm
Tailstock taper MT4
Motor power 7.5hp
Weight 1,560kg
Shipping 2,900mm x 1,200mm x 1,550mm (2,900kg)
