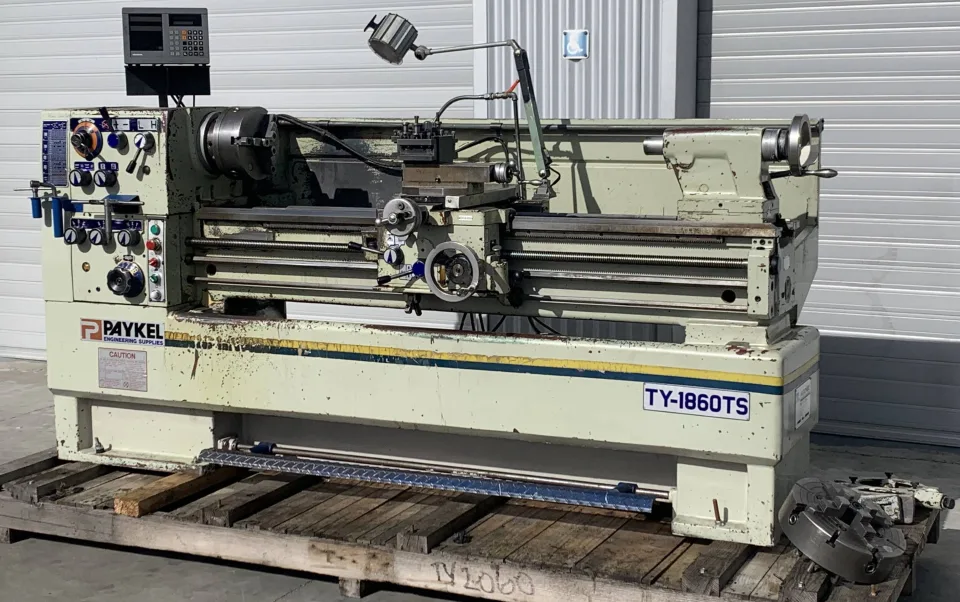

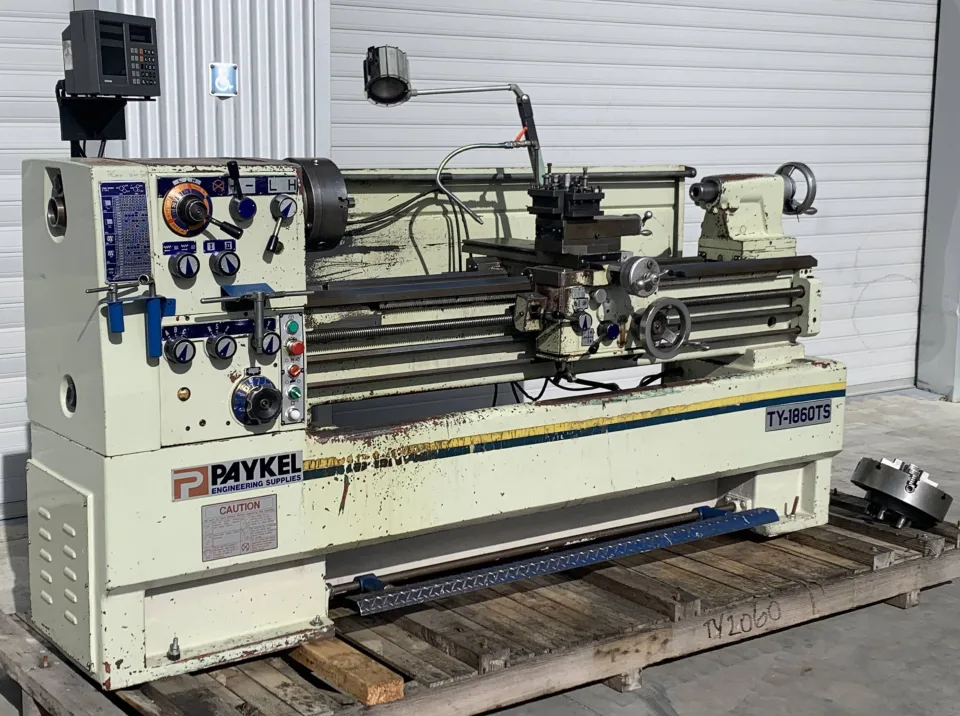

MICROWEILY TY-1860TS Used Centre Lathe
c/w DRO & QCT
Product overview
About this machine.
The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.
The Microweily TY-1860TS is a heavy-duty precision lathe designed for workshops that require both size and strength without sacrificing accuracy. With a robust cast-iron construction, large 18" swing, and 60" distance between centres, it offers generous capacity for a wide range of turning applications. A powerful spindle bore and high-torque motor provide the strength needed for demanding work, while still retaining the smooth, precise operation Microweily lathes are known for.
Key features
- 3 phase
- Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
- Bedways and cross slide are induction hardened to HRC 52 and precision ground.
- The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.

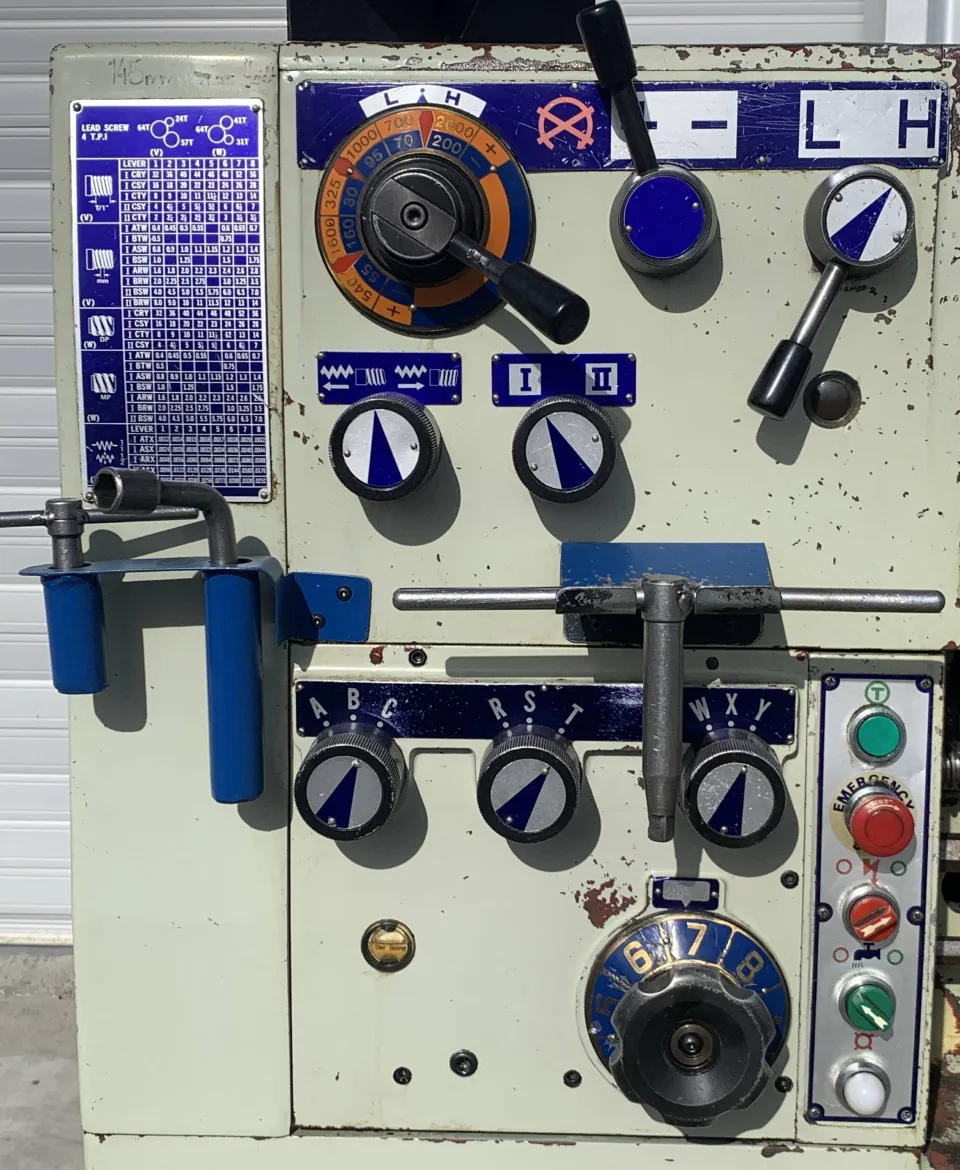

- Fully enclosed 12-speed headstock
- Hardened and precision ground headstock gears.
- Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
- D1-6 Camlock type spindle
- 58mm spindle bore
- Metric and imperial threading capability via gear driven leadscrew
- Power feed range. From 0.037mm - 1.04mm (50 settings) on both the longitudinal axis (X) and cross slide (Y)
- Generous swing with gap bed.
- Right hand carriage wheel
- One shot lubrication system
- Robust cast tailstock with 4MT quill
Scott package includes
- Heidenhan 2 axis digital readout system
- Italian Style quick change toolpost (B) c/w 3 holders accepts 25 x 25mm tooling.
- 3 Jaw chuck 250mm direct mounting

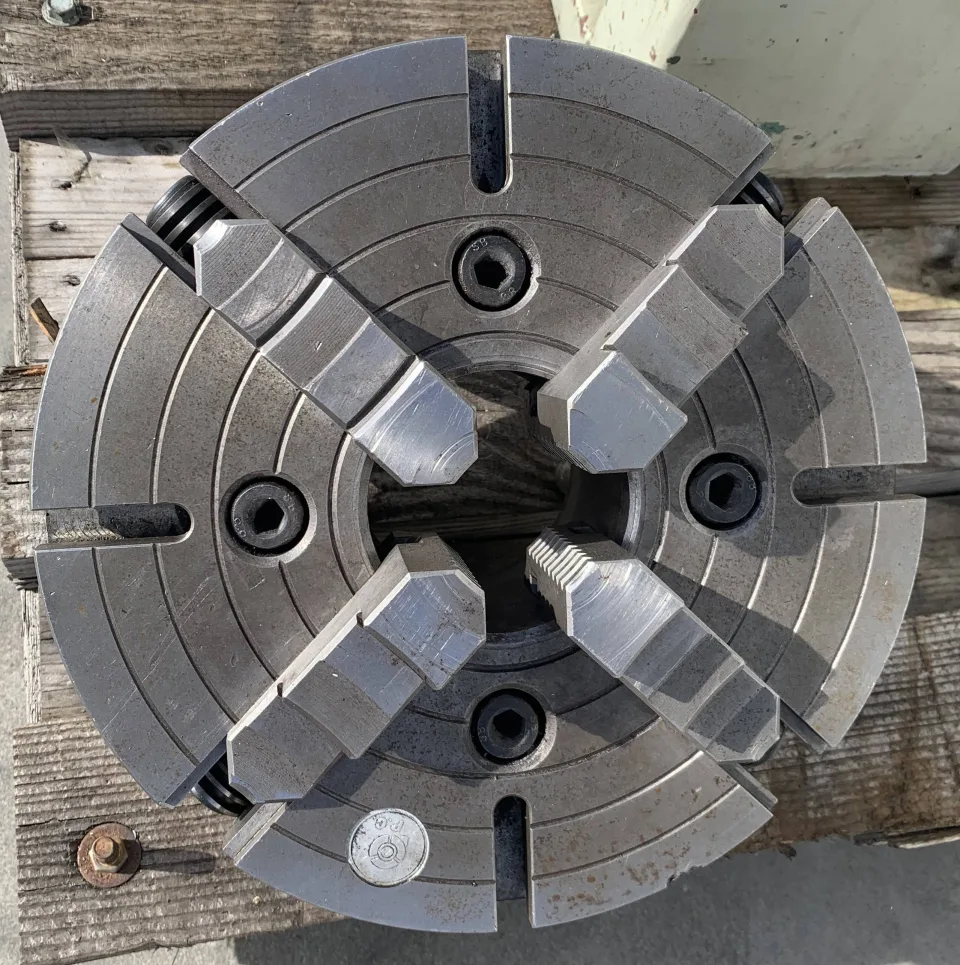

- 4 Jaw chuck 320mm direct mounting
- Fixed steady rest
- Following steady rest
- Coolant system
- Halogen lamp
- Full length splash guard
- Thread dial indicator
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
