WEB-BACKING PLATES
Tooling, Accessories & Consumables · Workholding

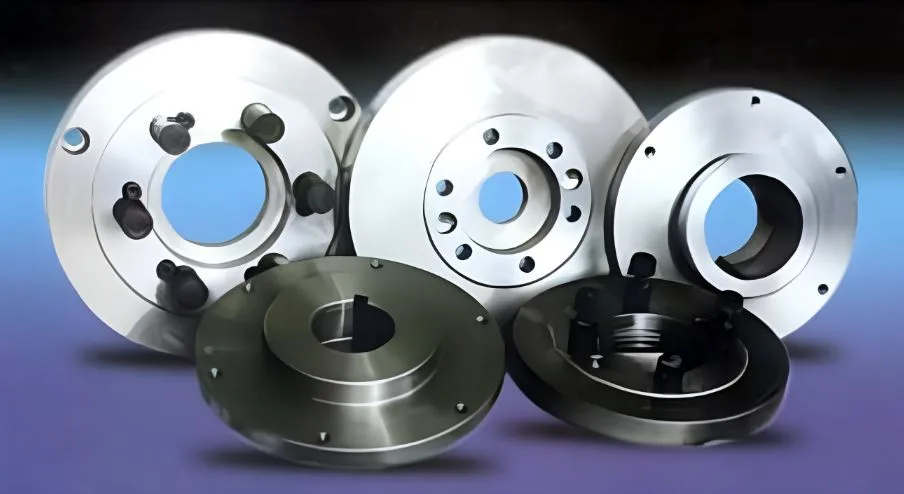

Metalex Lathe Chuck Adaptor Backing Plates
Camlock D type, Russian C type, CNC A type
POA
Configured to suit your application. Talk to us for a price.
NZ Prepared, installed and supported nationwide by Scott Machinery.
D Type Camlock Backing Plates
Complete with pins
A Type
to suit CNC
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications
Metalex lathe chuck adaptor backing plates provide a reliable and precise interface between your lathe spindle and chuck. Manufactured to high standards, these adaptor plates are machined from quality materials to ensure accurate alignment and secure mounting. Available in a range of spindle mount configurations (including threaded, camlock, and DIN styles), they are designed to suit both manual and CNC lathes. Whether you're upgrading your chuck or adapting between brands, Metalex backing plates offer a practical, durable solution to keep your machine running smoothly.
Features:
- Precision machined for accurate chuck alignment
- Manufactured from high grade cast iron or steel
- Available in a variety of spindle mounts (camlock, DIN, etc.)
- Compatible with both manual and CNC lathes
- Pre machined register or semi finished options available
- Durable construction ensures long service life
- Ideal for mounting 3 jaw, 4 jaw, or specialty chucks
- Easy to install and true up for high concentricity
- Suitable for retrofitting or chuck replacements
Other types available by intent order call us to discuss your needs
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| D Type Camlock Backing Plates | Complete with pins | |||
|---|---|---|---|---|
| Camlock mount | Diameter | Pin Diameter + PCD | Price Excl GST | Lathes to suit |
| D1-3 | 160mm | 14.3mm - 70.6mm | POA | Colchester Bantum |
| D1-3 | 200mm | 14.3mm - 70.6mm | POA | |
| D1-4 | 160mm | 15.8mm - 82.6mm | POA | |
| D1-4 | 200mm | 15.8mm - 82.6mm | $195.00 | Colchester Student 1800 |
| D1-4 | 267mm | 15.8mm - 82.6mm | $199.00 | |
| D1-5 | 210mm | 19.0mm - 104.8mm | POA | |
| D1-5 | 267mm | 19.0mm - 104.8mm | $230.00 | |
| D1-6 | 210mm | 22.2mm - 133.4mm | $210.00 | Colchester Triumph |
| D1-6 | 267mm 270mm | 22.2mm - 133.4mm | $230.00 | |
| D1-6 | 318mm | 22.2mm - 133.4mm | $315.00 | |
| D1-8 | 250mm | 25.4mm - 171.4mm | POA | |
| D1-8 | 267mm | 25.4mm - 171.4mm | $290.00 | |
| D1-8 | 318mm | 25.4mm - 171.4mm | $310.00 | |
| D1-8 | 325mm | 25.4mm - 171.4mm | POA | Colchester Mascot |
| D1-11 | 318mm | 30.15mm - 235mm | $390.00 | |
| D1-11 | 380mm | 30.15mm - 235mm | POA | |
| C Type to suit | Russian & Tos Lathes | |||
| C6 | 325mm | M12 - 133.4mm | POA | TOS SN40 |
| C8 | 325mm | M16 - 171.4mm | POA | TOS SN50 |
| A Type | to suit CNC | |||
| A25 | - 104.8mm | |||
| A26 | - 133.4mm | |||
| A28 | - 171.4mm |
