Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

Optimum's manual 5C collet chucks are designed to provide secure and accurate clamping for a variety of workpieces, including round, hexagonal, and square shapes. These chucks are compatible with Optimum lathes featuring Camlock spindles, such as D1-4, D1-5, D1-6, and D1-8, as well as plain back mount configurations. They offer a rotation accuracy of 0.02 mm, ensuring high precision in machining operations.

Features:

  • Designed for use with 5C collets, accommodating sizes from 3 mm to 25 mm. Collets are sold separately.
  • Available in both Camlock (D1-4, D1-5, D1-6, D1-8) and plain back mount versions, providing flexibility to suit different lathe configurations.
  • Utilizes a square drive key to tighten the front mounted 5C collets, ensuring a firm grip on the workpiece.
  • Manufactured with high quality materials to withstand the rigors of machining and provide long lasting performance.
  • Additional hardware kits are available to assist in securing the chuck to your lathe, enhancing stability during operations.
  • Capable of holding the below types of collets:
  • Round 1 - 28mm
  • Hexagonal 3 - 22mm
  • Square 3 -19mm

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Optimum 56C Collet chucks

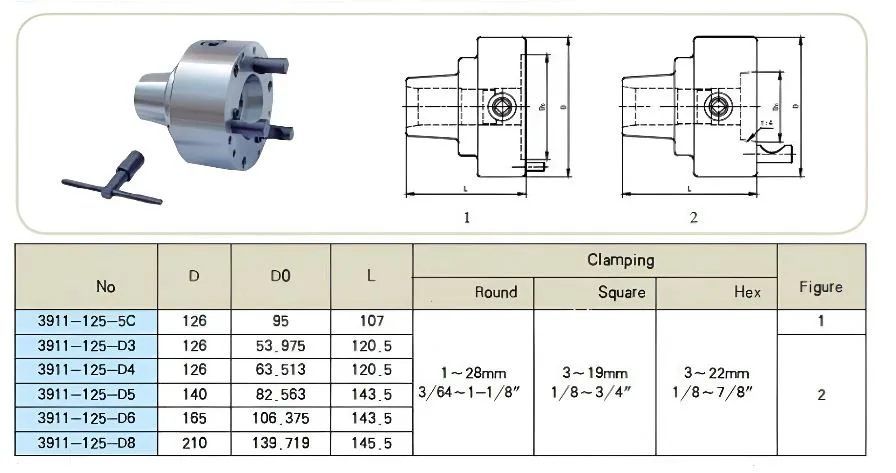

Camlock Spindles Suitable Lathe Models Collet Type & Range Price Excl GST
Recess plain back mount mount to backing plate 5C, 3mm to 25mm POA
D1-4 Z330, 6233, 6230 5C, 3mm to 25mm $690.00
D1-5 T400, 5C, 3mm to 25mm POA
D1-6 1640, 1860 5C, 3mm to 25mm POA
D1-8 Z410, Z460, Z560, 6250, 6266 5C, 3mm to 25mm POA
