LUXCUT RBM 610-8 Manual Asymmetrical Rolls
1 / 3
LUXCUT logo ROLL-0-0020

Sheet Metal & Fabrication · Rolling & forming

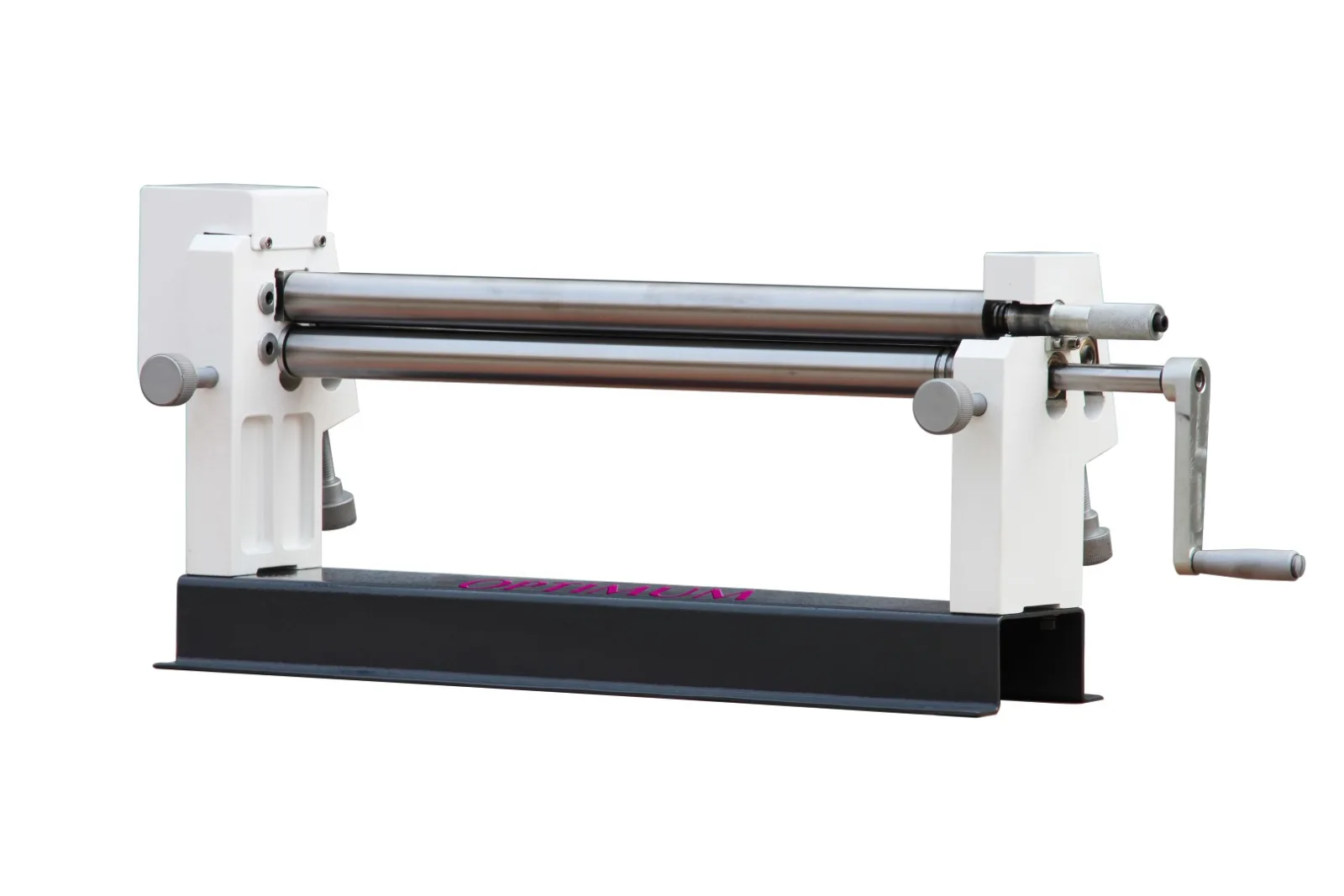

LUXCUT RBM 610-8 Manual Asymmetrical Rolls

0.8mm capacity Bench mount

$560.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Sheet width 610mm
Maximum capacity one time 0.8mm
Diameter of rolls 40mm
Machine dimension 885 x 220 x 340mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

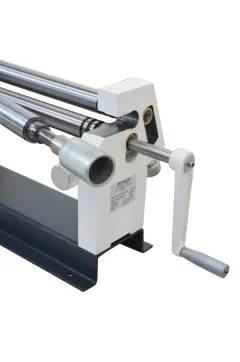

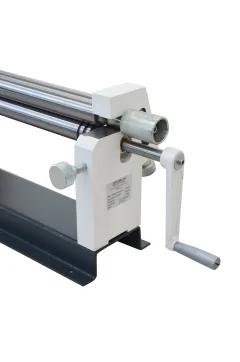

The Luxcut RBM 610-8 is a compact and versatile set of manual asymmetrical slip rolls, ideal for light duty sheet metal forming. With a working length of 610 mm and a rolling capacity of up to 0.8 mm mild steel, it is perfectly suited for small scale fabrication, model making, and workshop applications. The asymmetrical three roll design makes pre-bending and forming operations simple, while the sturdy hand operated system provides excellent control and precision. Durable, user friendly, and workshop ready, the RBM 610-8 offers reliable performance for producing accurate curves, cylinders, and sheet metal components

Features

  • Manual three roll design for controlled, precise sheet forming
  • Asymmetrical roll configuration allows easy pre bending and smooth forming of curves
  • Working length: 610 mm
  • Maximum sheet thickness: 0.8 mm mild steel
  • Robust, durable construction suitable for workshop use
  • Initial pinch style for pre-bending
  • Bench mount
  • Hand-operated system offers excellent control and precision
  • Wire grooves
  • Swing out top roll

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Sheet width 610mm
Maximum capacity one time 0.8mm
Diameter of rolls 40mm
Machine dimension 885 x 220 x 340mm
Machine weight 50 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding LUXCUT RBM 610-8
