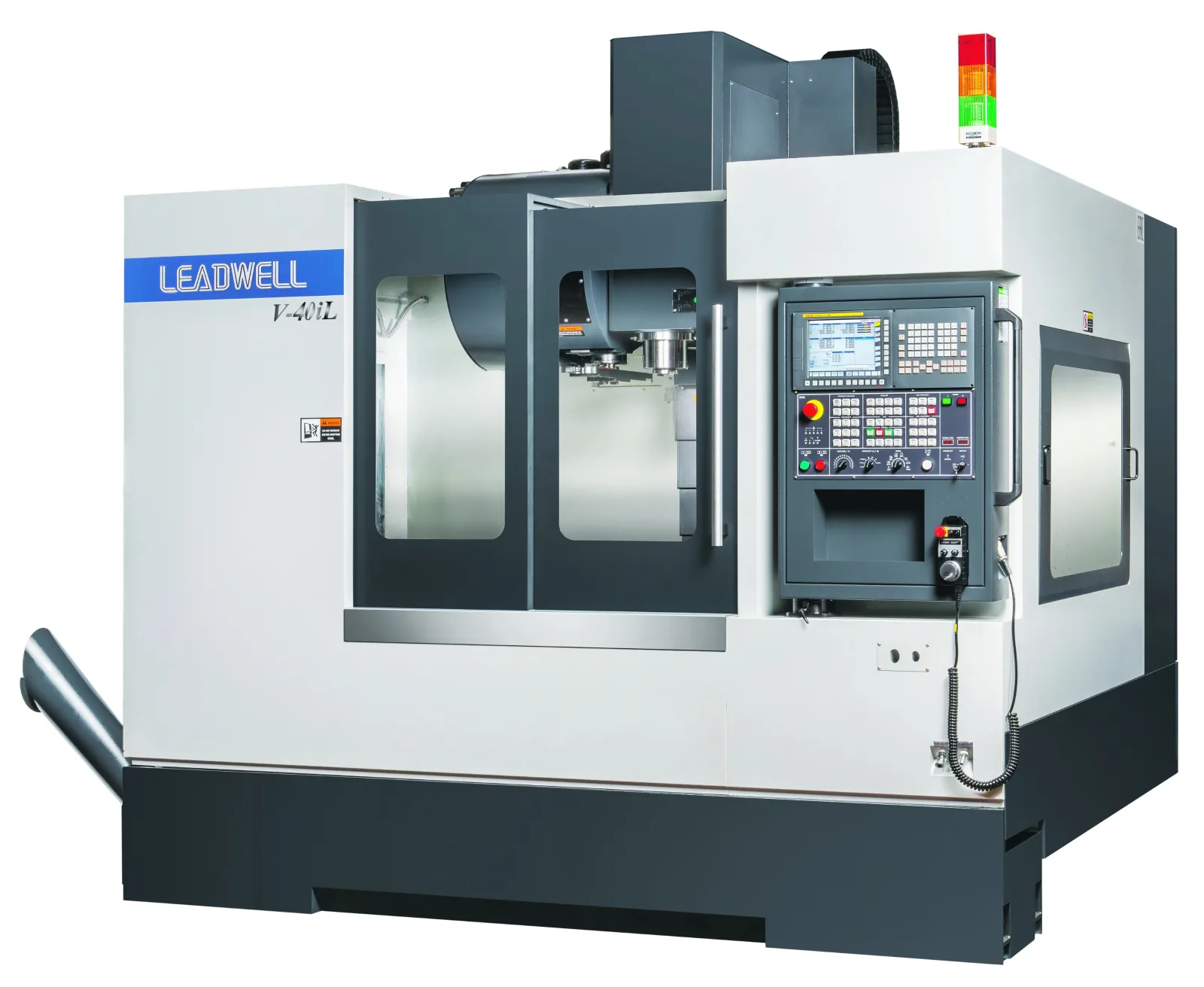

Leadwell V-40 CNC Vertical Machining Centre

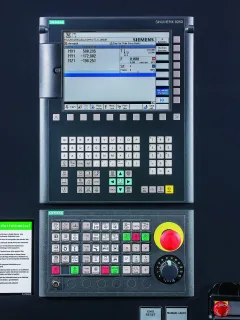

LEADWELL V40 CNC VMC C/W SIEMENS 802D SL

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Quality Taiwanese Manufacturing

Scott package includes

  • 24 Tool arm type ATC
  • 8000rpm spindle
  • 4th Axis preparation
  • Rigid tapping
  • Inside screw type chip conveyor
  • RS 232 interface

Options

  • 10000 rpm spindle
  • 15000 rpm spindle
  • 20000 rpm spindle
  • 45000 rpm attachment
  • Chain type chip conveyor
  • 2 speed geared head
  • Automatic tool length measurement
  • Automatic tool breakage detection
  • 4th axis package
  • 20 Bar CTS Coolant thru spindle
  • Fanuc Oi Control
  • Fanuc data server interface
  • Other conrols available

Machine video

See Leadwell V-40 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model V-40
Travel
Travel on X axis (Table, longitudial) mm 1020
Travel on Y axis (Table, cross) mm 510
Travel on Z avis (Spindle, vertical) mm 510+110
Table
Table top to spindle nose mm 160-670
Working Area mm 1200x500
Spindle
Spindle Taper BT40
Spindle speed r.p.m. 80-8000
Feedrates
Rapid traverse speed, X,Y/Z mm/min 24000/18000/24000
Automatic Tool Changer
Number of tool pots / Arm type ATC(OPT.) 20/24
Motors
Spindle motor 30min./continuous HP 12/10
Miscellaneous
Total machine wieght kg 6000
