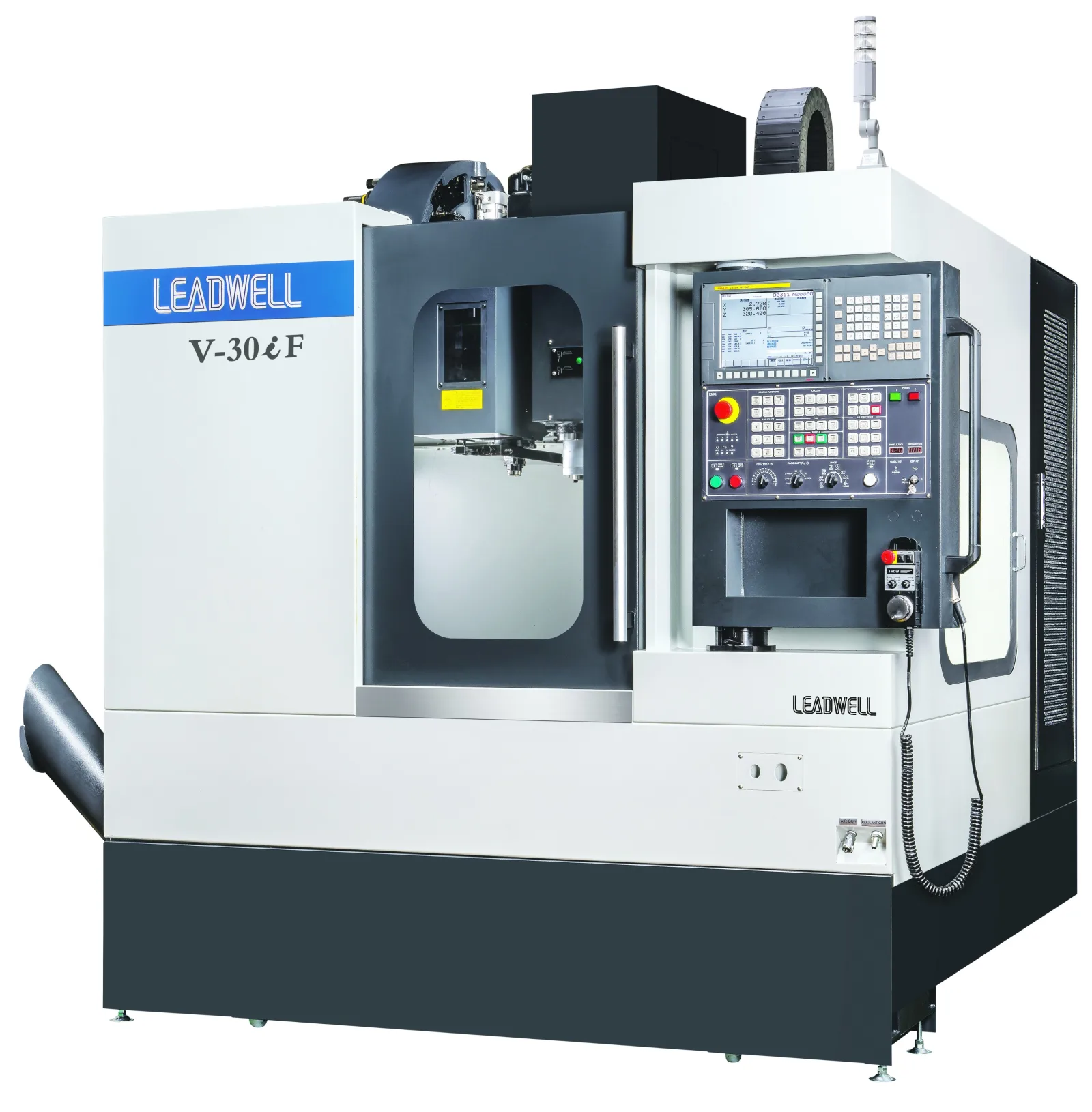

Leadwell V-30i CNC Vertical Machining Centre

LEADWELL V30i c/w 828D CNC MACHINING CENTRE

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Quality Taiwanese Manufacturing

Standard Accessories :

  • 12,000rpm spindle
  • 24 Tool Arm type ATC
  • Coolant though spindle
  • Programmable spindle side air blast
  • Coolant shower ring (8 jets)
  • Coolant wash down gun
  • Base wash coolant system to flush chips into auger
  • 2 x Inside screw type chip augers
  • Chain type chip conveyor & bucket
  • Oil skimmer, integrated in coolant tank

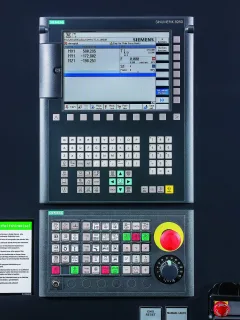

  • Siemens 828D Control (Fanuc option shown)

Options :

  • 10,000 rpm spindle
  • 15,000 rpm spindle
  • 20,000 rpm spindle
  • 50,000 rpm attachment
  • 2 speed geared head
  • Automatic tool length measurement
  • Automatic tool breakage detection
  • 4th axis package
  • Other controls available

Machine video

See Leadwell V-30i in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model V-30i
Travel
Travel on X axis (Table, longitudial) mm 800
Travel on Y axis (Table, cross) mm 510
Travel on Z axis (Spindle, vertical) mm 510+110
Table
Table top to spindle nose mm 130-540
Working Area mm 890x400
Spindle
Spindle Taper BBT40
Spindle speed rpm 80-12000
Feedrates
Rapid traverse speed, X,Y/Z m/min 36/36
Automatic Tool Changer
Number of tool pots / Arm type ATC(OPT.) 20/24
Motors
Spindle motor 30min./continuous HP 10/7.4
Miscellaneous
Total machine wieght kg 4500
